Brand: Marathon
SKU: 182TTTL7034

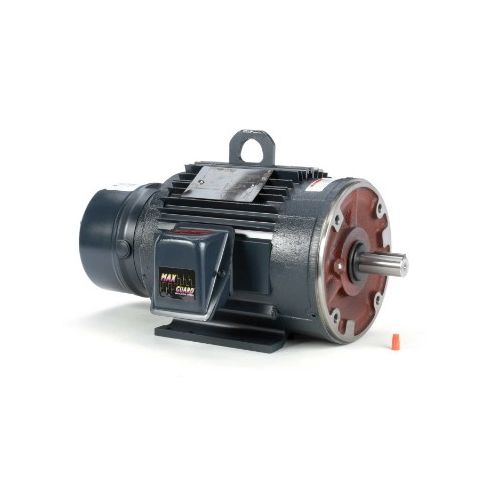

Marathon 182TTTL7034, Brake Motor, 3 HP, 230/460 Volts, 4.0 Amps, 3 Phase, 1760 RPM, 60 Hz,TENV Enclosure, 182TC Frame, Rigid Base, Aluminum Frame, Catalog No: C405
Marathon Brake Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 182TTTL7034, Brake Motor, 3 HP, 230/460 Volts, 4.0 Amps, 3 Phase, 1760 RPM, 60 Hz,TENV Enclosure, 182TC Frame, Rigid Base, Aluminum Frame, Catalog No: C405 | 1 | $2,017.79/each |
Description
Marathon Brake Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Specifications
| Brand | Marathon |
| Catalog No | C405 |
| Product Type | Brake Motor |
| Horsepower | 3 HP |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Output KW | 2.2 kW |
| Frequency | 60 Hz |
| Speed | 1760 RPM |
| Current | 4.0 Amps |
| Enclosure | TENV |
| Frame Size | 182TC |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Rigid Base |
| Frame Material | Aluminum |
| Overall Length | 19.68 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 90.20% |
| Duty Rating | Continous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Induction Run |
| Starting Method | Across The Line |
| Design Code | B |
| KVA Code | K |
| Frame Length | 7.20 in |
| Shaft Diameter | 1.125 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 2.62 in |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
