Brand: Marathon
SKU: 056T17F5349

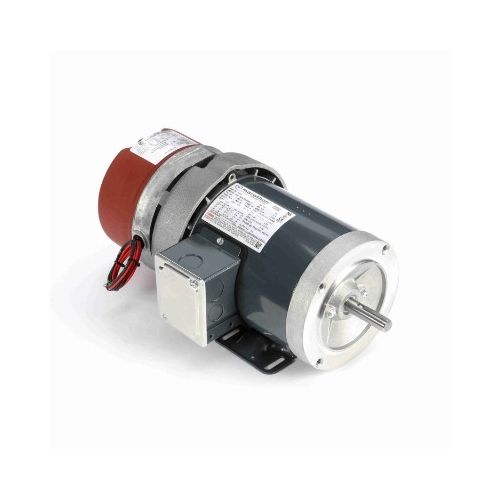

Marathon 056T17F5349, Brake Motor, 1/2 HP, 208-230/460 Volts, 1.2 Amps, 3 Phase, 1725 RPM, 60 Hz,TEFC Enclosure, 56C Frame, Bolt-on Base, Rolled Steel Frame, Catalog No: D452
Marathon Brake Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 056T17F5349, Brake Motor, 1/2 HP, 208-230/460 Volts, 1.2 Amps, 3 Phase, 1725 RPM, 60 Hz,TEFC Enclosure, 56C Frame, Bolt-on Base, Rolled Steel Frame, Catalog No: D452 | 1 | $1,372.10/each |
Description
Marathon Brake Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Specifications
| Brand | Marathon |
| Catalog No | D452 |
| Product Type | Brake Motor |
| Horsepower | 1/2 HP |
| Voltage | 208-230/460 Volts |
| Phase | 3 |
| Output KW | 0.37 kW |
| Frequency | 60 Hz |
| Speed | 1725 RPM |
| Current | 1.2 Amps |
| Enclosure | TEFC |
| Frame Size | 56C |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Bolt-on Base |
| Frame Material | Rolled Steel |
| Overall Length | 16.23 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 72.10% |
| Duty Rating | Continous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Induction Run |
| Starting Method | Across The Line |
| Design Code | B |
| KVA Code | M |
| Frame Length | 6.56 in |
| Shaft Diameter | 0.625 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 2.06 in |
| Shaft Rotation | Reversible |
| Shaft Type | NEMA 56 |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
