Myers Pumps Buyer Guides

Myers S Series Submersible Well Pumps Buyers Guide & Review

Myers Pumps Buyer Guides

May 29, 2019

Myers S Series Submersible Well Pumps Buyers Guide & Review

The Myers S Series 4” submersible well pumps have been a successful entry in the Myers well pump line for many years and have a history of tremendous reliability. The all stainless steel construction is ideal for extreme water conditions and easily resists harmful corrosion. The S Series subs are also available with high-performance Pentek motors for the very best in efficiency and trouble-free operation.

Features

300 series stainless steel straps
300 series stainless steel discharge
Rubber discharge bearing
300 series stainless steel impellers stand tough against sand and grit
300 series stainless steel diffusers
300 series stainless steel suction caps
300 series stainless steel shaft and coupling
300 series stainless steel intake
300 series stainless steel intake screen
300 series stainless steel cable guard
300 series stainless steel check valve
300 series stainless steel fasteners
Precision crafted for smoother, quieter operation
Features application-matched Pentek motors for just the right mix of performance and efficiency.
Built-in hook assembly keeps pump safe from slip

Applications

Water system:
- Residential
- Industrial
- Commercial
- Multiple housing
- Farm clean water use

MYERS S SERIES SUBMERSIBLE WELL PUMPS

Myers S Series Submersible Well Pumps

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Stages	GPM Best Efficiency Flow	Shut Off Head
3S52-10-P4-01	1-1/4"	1/2	230	9	10	230'
3S51-10-P4-01	1-1/4"	1/2	115	9	10	230'
3S52-16-P4-01	1-1/4"	1/2	230	5	16	150'
3S51-16-P4-01	1-1/4"	1/2	115	5	16	150'
2S51-10-P4-01	1-1/4"	1/2	115	9	10	230'
3S52-25-P4-01	1-1/2"	1/2	230	3	25	100'
2S52-16-P4-01	1-1/4"	1/2	230	5	16	150'
2S51-16-P4-01	1-1/4"	1/2	115	5	16	150'
2S52-25-P4-01	1-1/2"	1/2	230	3	25	100'
3S52-5-P4-01	1-1/4"	1/2	230	13	5	350'
3S72-25-P4-01	1-1/2"	3/4	230	5	25	150'
3S72-10-P4-01	1-1/4"	3/4	230	12	10	320'
2S52-5-P4-01	1-1/4"	1/2	230	13	5	350'
2S72-25-P4-01	1-1/2"	3/4	230	5	25	150'
3S102-16-P4-01	1-1/4"	1	230	10	16	300'
3S72-16-P4-01	1-1/4"	3/4	230	8	16	240'
2S72-16-P4-01	1-1/4"	3/4	230	8	16	240'
2S72-10-P4-01	1-1/4"	3/4	230	12	10	320'
3S102-25-P4-01	1-1/2"	1	230	7	25	210'
3S102-10-P4-01	1-1/4"	1	230	15	10	400'
2S102-16-P4-01	1-1/4"	1	230	10	16	300'
3S72-5-P4-01	1-1/4"	3/4	230	18	5	500'
2S102-25-P4-01	1-1/2"	1	230	7	25	210'
3S152-16-P4-01	1-1/4"	1-1/2	230	14	16	420'
2S102-10-P4-01	1-1/4"	1	230	15	10	400'
2S72-5-P4-01	1-1/4"	3/4	230	18	5	500'
3S152-25-P4-01	1-1/2"	1-1/2	230	9	25	280'
2S152-16-P4-01	1-1/4"	1-1/2	230	14	16	420'
3S102-40-P4-01	2"	1	230	3	40	80'
3S102-5-P4-01	1-1/4"	1	230	22	5	600'
2S102-40-P4-01	2"	1	230	3	40	80'
2S152-25-P4-01	1-1/2"	1-1/2	230	9	25	280'
3S152-10-P4-01	1-1/4"	1-1/2	230	21	10	580'
2S102-5-P4-01	1-1/4"	1	230	22	5	600'
3S152-40-P4-01	2"	1-1/2	230	5	40	140'
2S152-10-P4-01	1-1/4"	1-1/2	230	21	10	580'
2S152-40-P4-01	2"	1-1/2	230	5	40	140'
3S152-5-P4-01	1-1/4"	1-1/2	230	31	5	700'
2S152-5-P4-01	1-1/4"	1-1/2	230	31	5	700'
S5-10-01	1-1/4"	1/2		9	10	230'
S5-16-01	1-1/4"	1/2		5	16	150'
S7-16-01	1-1/4"	3/4		8	16	240'
S7-25-01	1-1/2"	3/4		5	25	150'
S7-10-01	1-1/4"	3/4		12	10	320'
S5-25-01	1-1/2"	1/2		3	25	100'
S5-5-01	1-1/4"	1/2		13	5	350'
S10-16-02	1-1/4"	1		10	16	300'
S15-16-01	1-1/4"	1-1/2		14	16	420'
S10-25-01	1-1/2"	1		7	25	210'
S10-10-01	1-1/4"	1		15	10	400'
S15-25-01	1-1/2"	1-1/2		9	25	280'
S7-5-01	1-1/4"	3/4		18	5	500'
S15-10-01	1-1/4"	1-1/2		21	10	580'
S15-40-01	2"	1-1/2		5	40	140'
S20-40-01	2"	2		7	40	200'
S10-5-01	1-1/4"	1		22	5	600'
S20-75-01	2"	2		3	75	100'
S20-25-01	1-1/2"	2		11	25	330'
S20-16-01	1-1/4"	2		18	16	550'
S15-5-01	1-1/4"	1/2		31	5	700'
S20-10-01	1-1/4"	2		27	10	750'
S30-25-01	1-1/2"	3		15	25	450'
S30-16-01	1-1/4"	3		24	16	730'
S30-75-01	2"	3		5	75	155'
S30-40-01	2"	3		9	40	240'
S50-25-01	1-1/2"	5		26	25	790'
S30-10-01	1-1/4"	3		34	10	1050'
S50-16-01	1-1/4"	5		38	16	1140'
S50-40-01	2"	5		15	40	410'
S50-75-01	2"	5		8	75	250'
S20-5-01	1-1/4"	2		39	5	1030'
S75-25-01	1-1/2"	7-1/2		39	25	1170'
S100-75-01	2"	10		17	75	525'
S75-75-01	2"	7-1/2		12	75	380'
S50-10-01	1-1/4"	5		48	10	1310'
S75-40-01	2"	7-1/2		25	40	710'
S100-40-01	2"	10		30	40	860'

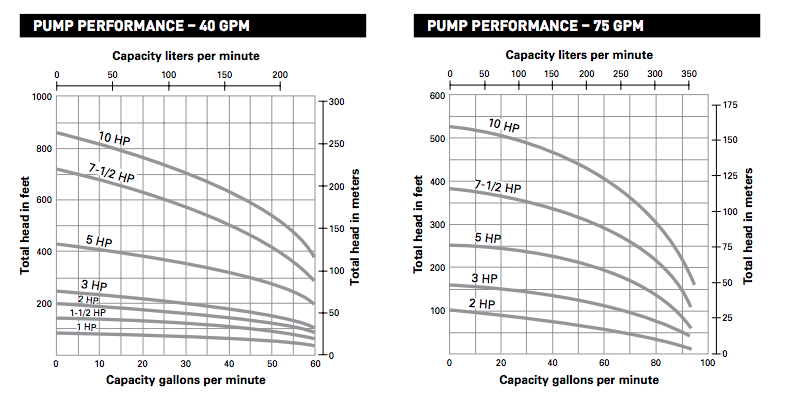

PERFORMANCE CURVES

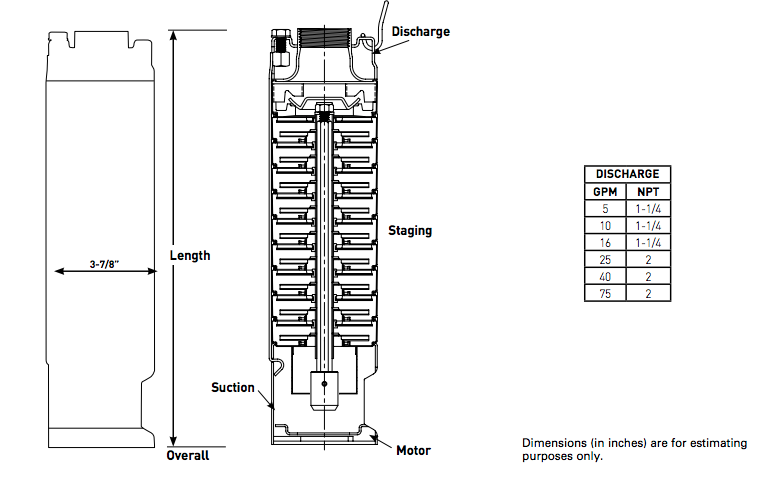

DIMENSIONS

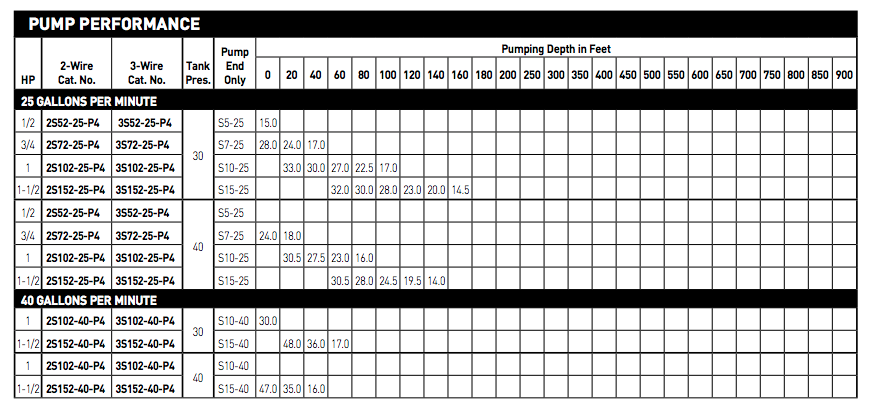

PUMP PERFORMANCE

ORDERING INFORMATION

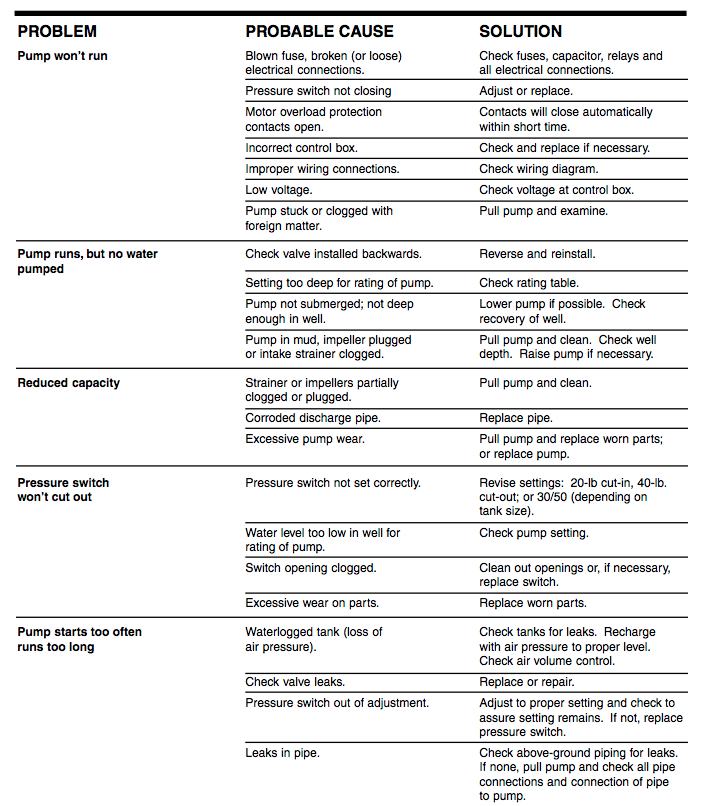

TROUBLESHOOTING

SPECIFICATIONS

Myers S Series Submersible Well Pump Specifications

MANUAL

Myers S Series Submersible Well Pump Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
