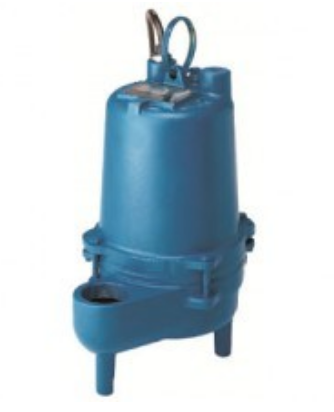

Barnes SE Series Sewage Pumps Buyers Guide & Review

The Barnes SE sewage pump series are submersible, non-clog sewage pumps designed for typical raw sewage applications. These pumps have a single seal and can handle spherical solids up to 2 inch in diameter. The SE series has a torque curved, oil filled, squirrel cage induction motor. Barnes solids handling pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need.

Features

Solids Handling Capacity: 2-3 inches, depending on model
Cast iron construction
Epoxy sealed cord housing with strain relief grommet
125 lb. flange design
50,000 hour bearing life
Stainless Steel lifting bail and hardware (4SE)

BARNES SE SERIES SEWAGE PUMPS

Barnes SE Series Sewage Pumps

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Phase	GPM	Max. Head
SE411	2"	4/10	115	1	120	25'
SE411A	2"	4/10	115	1	120	25'
SE421	2"	4/10	230	1	120	25'
SE411VF	2"	4/10	115	1	120	25'
SE511	2"	1/2	115	1	142	25'
SE511A	2"	1/2	115	1	142	25'
SE521	2"	1/2	230	1	142	25'
SE511AU	2"	1/2	115	1	142	25'
SE511VF	2"	1/2	115	1	142	25'
SE521AU	2"	1/2	230	1	142	25'

PERFORMANCE CURVES

DIMENSIONS

SPECIFICATIONS

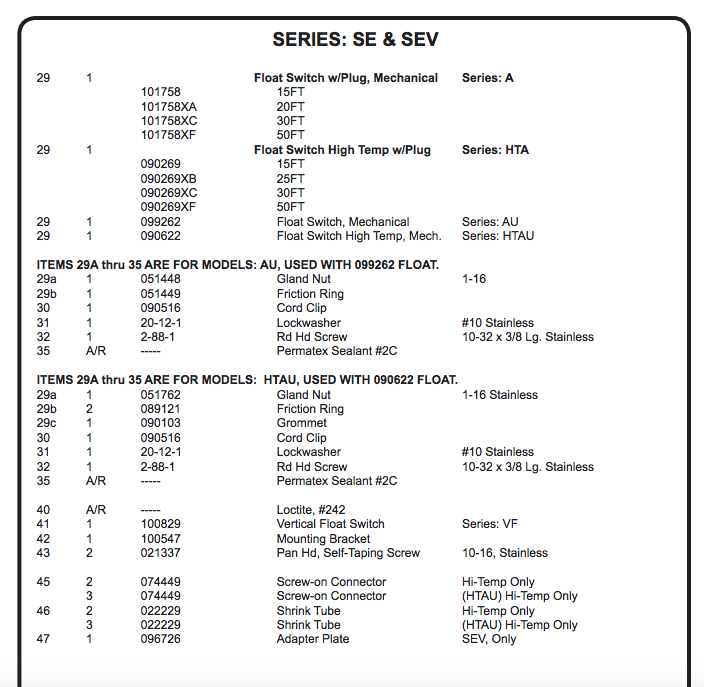

REPAIR PARTS

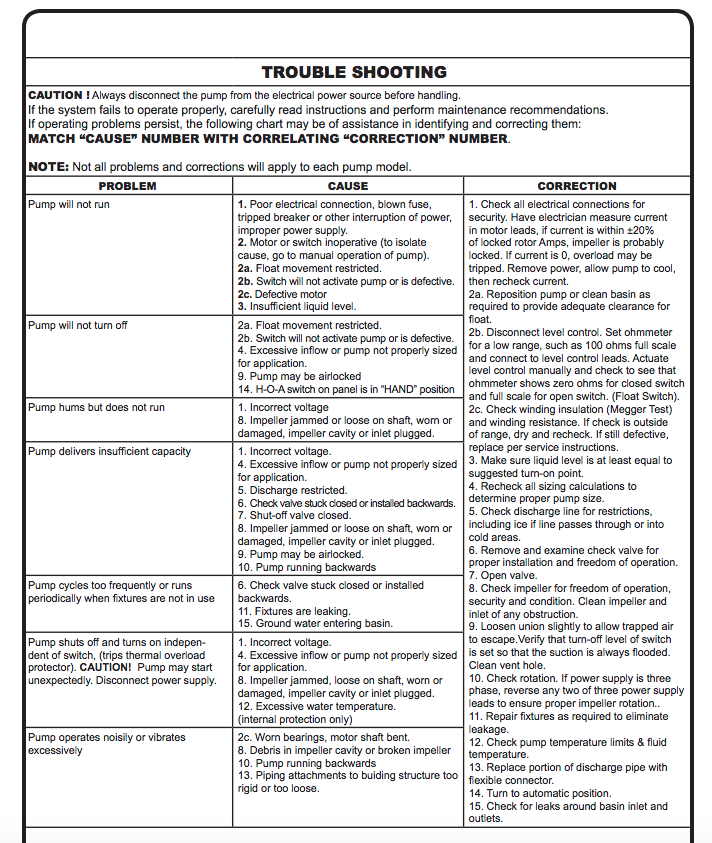

TROUBLESHOOTING

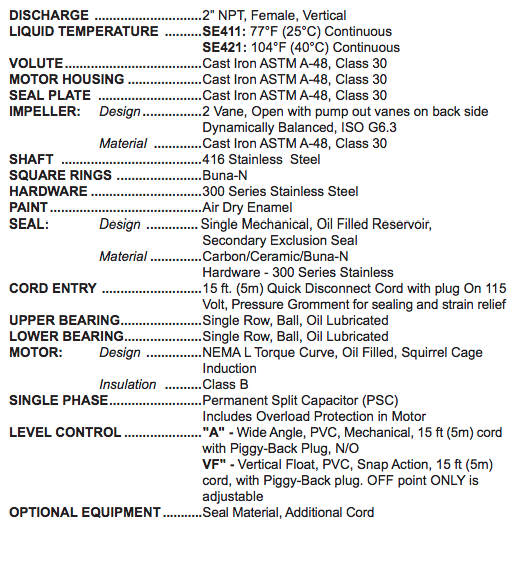

SPECIFICATIONS

Barnes SE Series Sewage Pump Specifications

INSTALLATION MANUAL

Barnes SE Series Sewage Pump Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
