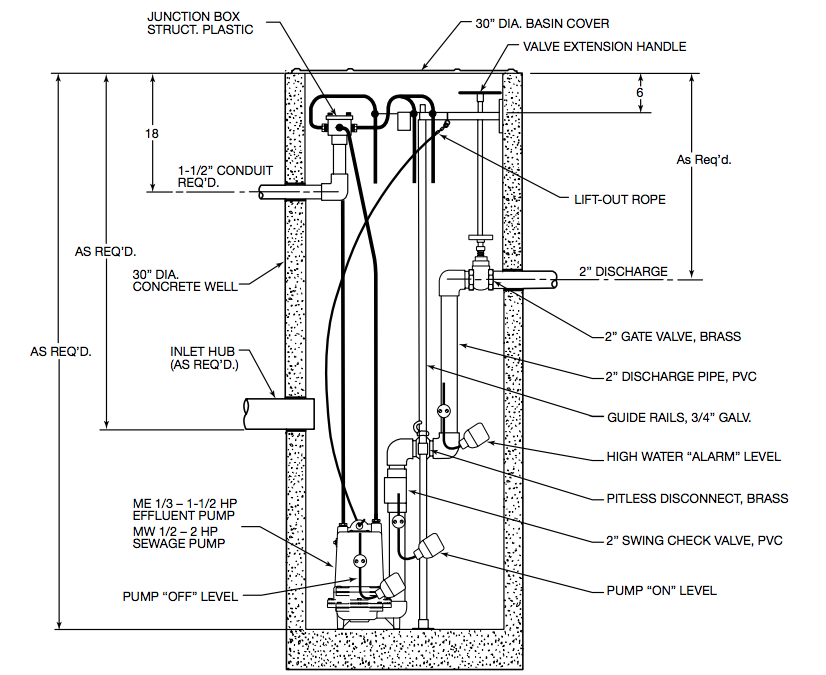

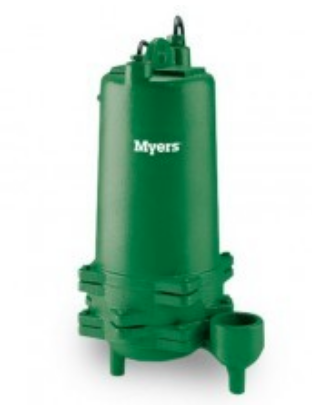

The Myers ME50 series of effluent pumps are designed specifically for effluent pressure distribution mounds, trenches and high-flow drainage applications. This series features heavy duty construction for years of extended service in the harshest environments. Available in single- and double seal models; thermoplastic and bronze impeller models.
Features
Cast Iron Tough
All cast-iron housing and volute case resists the most extreme corrosive environments
High-efficiency Dosing
Engineered thermoplastic or bronze (optional) two-vane impeller provides ideal performance for efficient dosing
Jam-proof
Enclosed impeller design eliminates jamming between impeller and volute
Powerful Torque
High-torque, permanent split capacitor (PSC) motor; no starting switches or relays to wear out
Runs Cooler
Rugged, oil-filled motor for bearing lubrication and maximum heat dissipation
Leak Protection
Optional leak probe senses water leakage past seal (dual seal motors only)
Thermal Protection
Heat sensor overload protection with automatic reset when motor cools to a safe operating temperature (single phase only)
