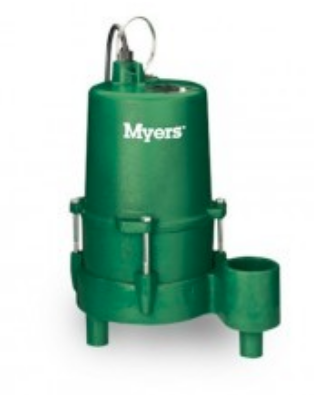

Myers ME45 Series Effluent Pumps Buyers Guide & Review

The Myers ME45 series of effluent pumps are designed to meet the demand of residential septic tanks or sump applications. This powerful 1/2 HP pump provides the flow and head required for demanding dosing systems and drainage applications.

Features

Powerful Torque
High-torque, permanent split capacitor (PSC) motor; no starting switches or relays to wear out

Rugged and Cool
Rugged-built, oil-filled motor for continuous bearing lubrication and maximum heat dissipation

Seal Protection
Upper and lower ball bearing and heavy duty Type 6 seal for added pump life

Thermal Protection
Heat sensor overload protection with automatic reset when motor cools to a safe operating temperature

MYERS ME45 SERIES EFFLUENT PUMPS

Myers ME45 Series Effluent Pumps

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Phase	GPM	Max. Head
ME45MC-21	2"	1/2	230	1	87	44'
ME45AC-11	2"	1/2	115	1	87	44'
ME45MC-11 30	2"	1/2	115	1	87	44'
ME45MC-21 30	2"	1/2	230	1	87	44'
ME45AC-21	2"	1/2	230	1	87	44'
ME45MC-11 50	2"	1/2	115	1	87	44'
ME45MC-11	2"	1/2	115	1	87	44'

PERFORMANCE CURVE

DIMENSIONS

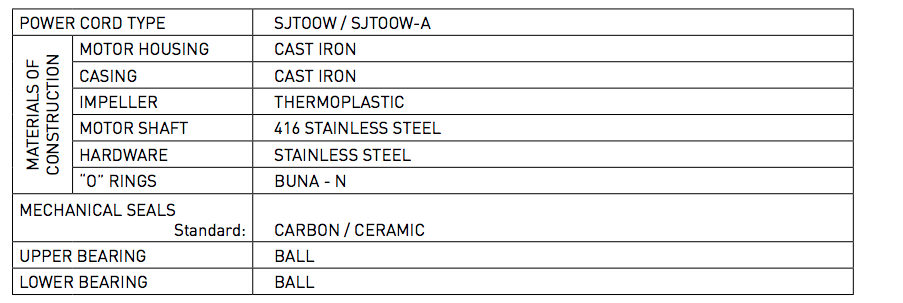

TECHNICAL DATA

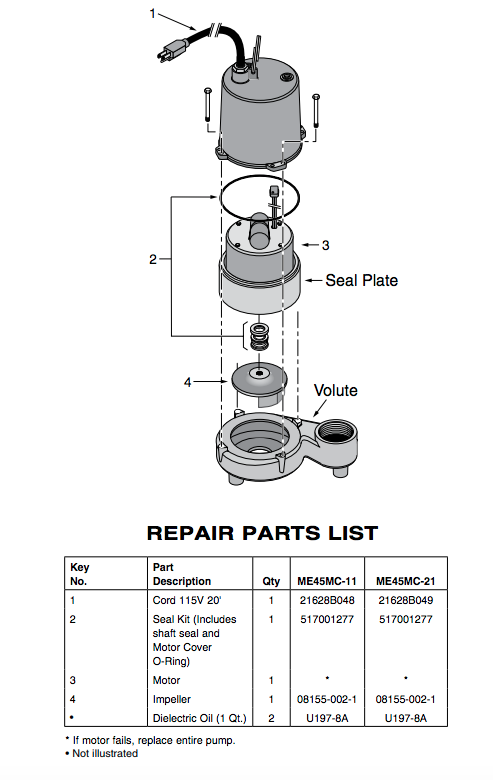

REPAIR PARTS

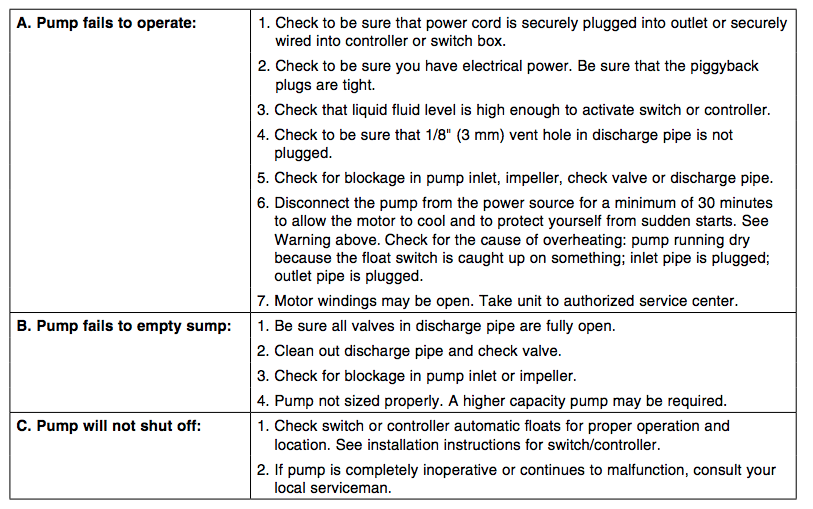

TROUBLESHOOTING

BROCHURE

Myers ME45 Series Effluent Pump Brochure

INSTALLATION MANUAL

Myers ME45 Series Effluent Pump Installation Manual

CURVES

Myers ME45 Series Effluent Pump Curves

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
