Myers CMV5 Series Sewage Pumps Buyers Guide & Review

Myers Pumps Buyer Guides

April 30, 2019

Myers CMV5 Series Sewage Pumps Buyers Guide & Review

The Myers CMV5 series of sewage pumps are an economical solution to wastewater applications that feature a combination of cast iron and thermoplastic construction for outstanding corrosion resistance. Solids up to 2" in diameter easily pass through the specially designed recessed vortex impeller.

Features

Shut-off head is 19 feet
Maximum flow is 95 GPM
Recessed vortex impeller operates completely out of volute and provides free flow through passage for solids and liquids
Oil-filled motor for maximum heat dissipation and continuous bearing lubrication
Recessed vortex impeller provides minimal radial loading for long bearing life
Heat sensor overload protection with automatic reset when motor cools to a safe operating temperature

Applications

Sewage
High-capacity sump
Effluent

MYERS CMV5 SERIES SEWAGE PUMPS

Model Comparison Chart

Model	Discharge (NPT Vertical)	HP	Voltage	Phase	GPM	Max. Head
CMV5M-11	2"	1/2	115	1	100	18'
CMV5A-11	2"	1/2	115	1	100	18'

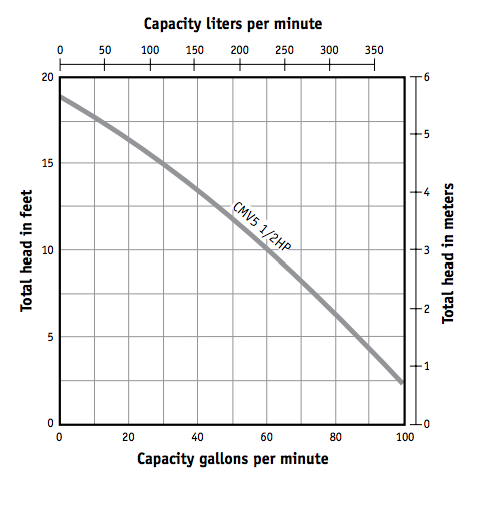

PERFORMANCE CURVE

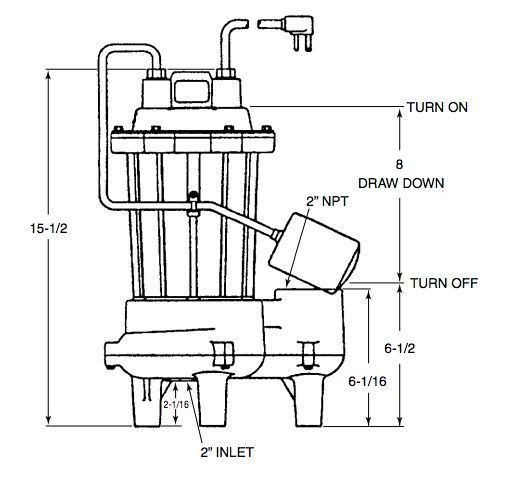

DIMENSIONS

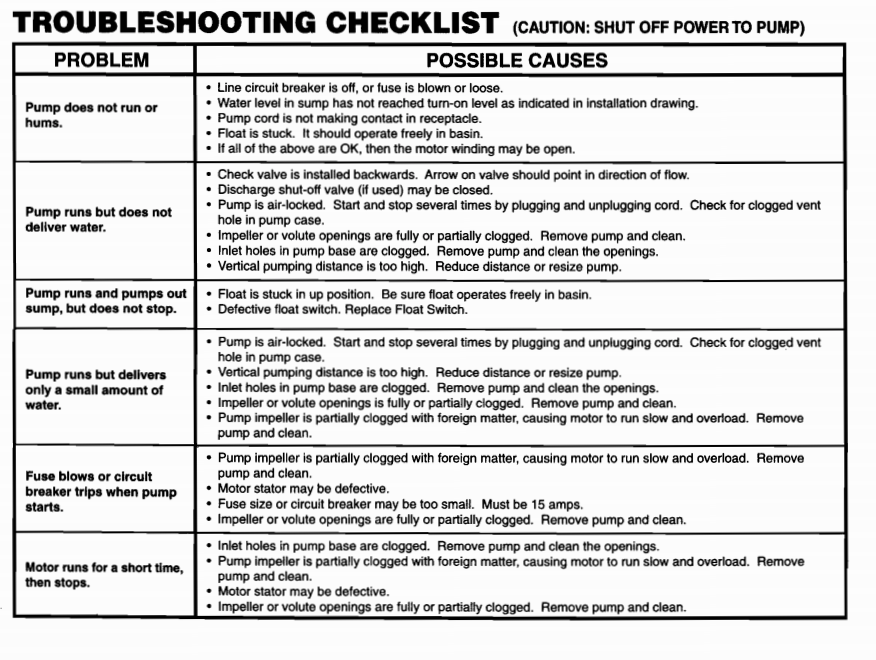

TROUBLESHOOTING

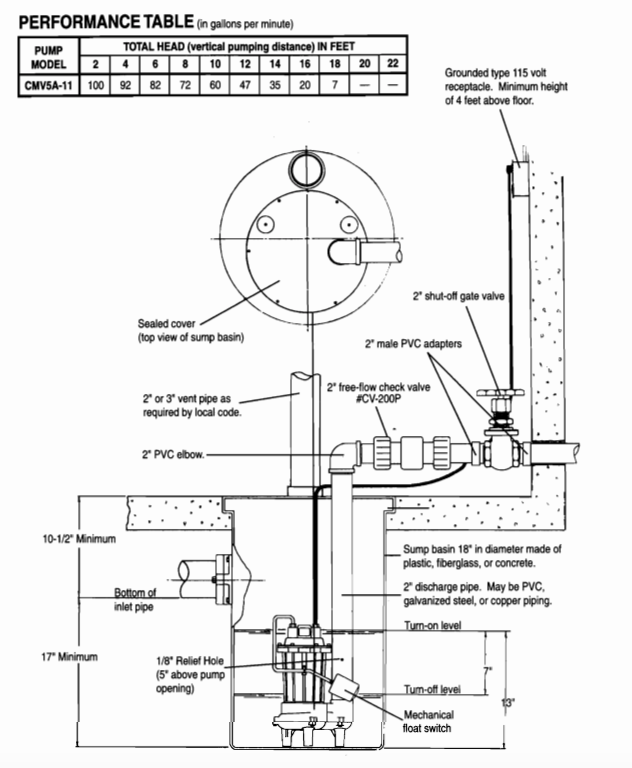

DIAGRAM

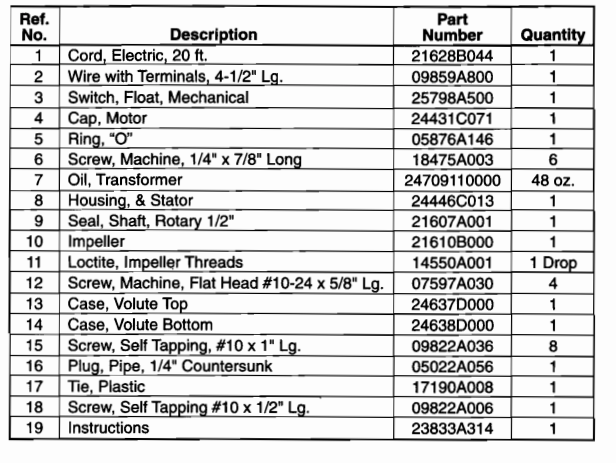

REPAIR PARTS

MANUAL

Myers CMV5 Series Sewage Pump Manual

BROCHURE

Myers CMV5 Series Sewage Pump Brochure

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
