Liberty 441 Emergency Sump Pump System Buyers Guide & Review

The Liberty Pump 441 is a battery backup sump pump system with an alarm. The Liberty 441 is a 12V battery-operated system that starts automatically when power fails. It is designed only as a temporary means of pumping when a primary sump pump has problems with normal operation. It is not intended to be used as the main sump water removal pump. It is a high-output, submersible pump with an automatic, mercury-free switch.

The Liberty 441 features an advanced 5-stage charging system. This system tests the battery and maintains a maximum charge without running the battery down or self-discharging.

Features:

Equipped with a control panel, battery box, 12v charger, and 1-1/2" or 1-1/4" connections
Audible in-use alarm and light
Reverse battery and short circuit protection
12-volt charger
Automatic start-up
Red "Fault" L.E.D. warns of a problem with the battery or charging process

LIBERTY 441 EMERGENCY SUMP PUMP SYSTEM

Model Comparison Chart

Model	Run Time (Intermittent)	Run Time (Continuous)	Voltage	Switch	Max. GPM	Max. Head	Max. Temp
441	30 hours	4 hours	12	Mercury-free Vertical	45	24'	140° F

PERFORMANCE RATINGS

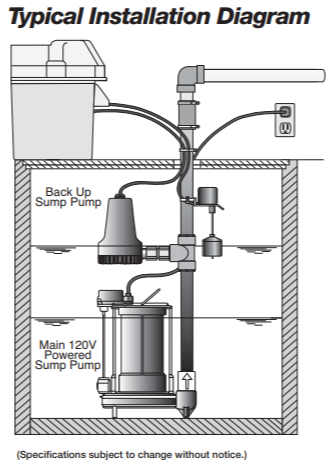

TYPICAL INSTALLATION

DIAGRAMS

BROCHURE

Liberty 441 Emergency Sump Pump System Brochure

MANUAL

Liberty 441 Emergency Sump Pump System Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability, and shipping information. Call our toll-free number 1-800-429-0800 to speak to an expert today.
