Grundfos VersaFlo Series Circulator Pumps Buyers Guide & Review

Grundfos VersaFlo UPS series circulator pumps are designed for circulation of liquids in heating and air conditioning systems. These pumps are typically applied in large residential and commercial applications. VersaFlo UPS circulators are also available in bronze pump housings which are suitable for hot water recirculation as well as other system applications.

Features

3 Speed Motor Technology - Reduces Noise & Power Consumption
Exclusive Wet Rotor Technology Up To 3 HP
Built-In Motor Protection For Long Life
Whisper Quiet
Maintenance Free
- No Mechanical Seal
- Water Cooled Motor
- Leak Proof

GRUNDFOS VERSAFLO SERIES CIRCULATOR PUMPS

Grundfos VersaFlo Series Circulator Pumps

Model Comparison Chart

Model	Flange Size	HP	Voltage	Max RPM	GPM	Max. Head
UPS 32-80/2	1-1/4"	1/2	115	3450	67	25'
UPS 40-40/4	1-1/2"	1/3	115	1750	85	11'
UPS 50-80/4	2"	3/4	230	1750	160	24'
UPS 40-80/2	1-1/2"	3/4	115	3450	105	30'
UPS40-1601X230	1-1/2"	3/4	230	3450	48	52.5'
UPS 50-160/2	2"	1-1/2	230	3450	170	46'

PERFORMANCE CURVES

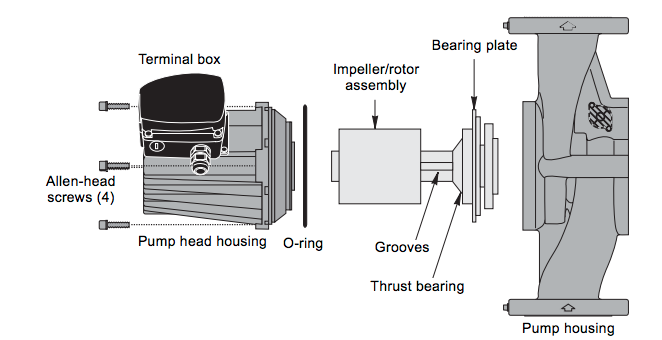

EXPLODED VIEW

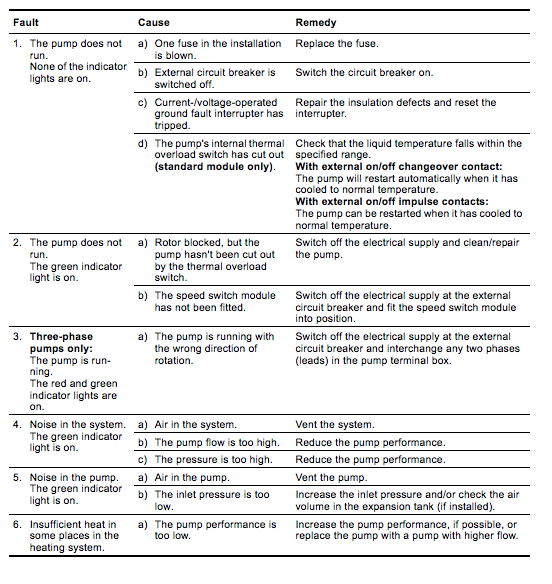

TROUBLESHOOTING

SERIES OVERVIEW

Grundfos VersaFlo Series Circulator Pump Series Overview

INSTRUCTIONS

Grundfos VersaFlo Series Circulator Pump Instructions

BROCHURE

Grundfos VersaFlo Series Circulator Pump Brochure

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
