Grundfos UPS Series Circulator Pumps Buyers Guide & Review

Grundfos UPS series circulator pumps are designed for circulation of liquids in heating and air conditioning systems. These pumps are typically applied in large residential and commercial applications. VersaFlo UPS circulators are also available in bronze pump housings which are suitable for hot water recirculation as well as other system applications.

Features

3 Speed Motor Technology - Reduces Noise & Power Consumption
Exclusive Wet Rotor Technology Up To 3 HP
Built-In Motor Protection For Long Life
Whisper Quiet
30 Month Warranty
Maintenance Free
- No Mechanical Seal
- Water Cooled Motor
- Leak Proof

GRUNDFOS UPS SERIES CIRCULATOR PUMPS

Grundfos UPS Series Circulator Pumps

Model Comparison Chart

Model	Pipe Connection	HP	Voltage	Materials of Construction	GPM	Max. Head
UPS15-42F (3-Speed)	2- Bolt Flange	1/25	230	Cast Iron	17.6	15.4'
UPS 50-44F (1-Speed)	4 - Bolt Flange	1/6	230	Cast Iron	14.5	4.4m
UPS50-44F	GF 50 Flange	1/6	115	Cast Iron	65	14.4'
UPS26-99SFC	GF 15/26 Flange	1/6	115	Stainless Steel	33	29'
UPS 32-40/4F (3-Speed)	32	1/3	230	Cast Iron	21.9	13.1'
UPS 32-40/4F	32	1/3	230	Cast Iron	21.9	13.1'
UPS 32-40/4F (3-Speed)	40	1/3	115	Cast Iron	48.6	26.2'
UPS 32-40/4F (2-Speed)	32	1/3	460	Cast Iron	21.9	13.1'
UPS 32-80/2F (3-Speed)	32	1/2	230	Cast Iron	28.1	19.8'
UPS 32-80/2F (3-Speed)	32	1/2	230	Cast Iron	28.1	26.2'
UPS 32-80/2F (2-Speed)	32	1/2	460	Cast Iron	28.1	26.2'
UPS50-40/4 (3-Speed)	2"	1/3	115	Cast Iron	51.4	13.1'
UPS 50-40/4F (3-Speed)	50	1/3	230	Cast Iron	51.4	13.1'
UPS 50-40/4F (2-Speed)	50	1/3	460	Cast Iron	49.9	13.1'
UPS 32-160/2F (2-Speed)	GF 40/43	3/4	460	Cast Iron	32.9	52.5'
UPS32-160/2 (3-Speed)	1-1/2"	3/4	115	Cast iron	32.9	52.5'
UPS 32-160/2F	1-1/2"	3/4	230	Cast Iron	32.9	52.5'
UPS 32-160 F (3-Speed)	GF 40/43	3/4	230	Cast Iron	32.9	52.5'
UPS 40-40/4F (2-Speed)	40	1/3	460	Cast Iron	34.4	13.1'
UPS 40-40/4F (3-Speed)	40	1/3	230	Cast Iron	34.4	13.1'
UPS 40-40/4F (3-Speed)	40	1/3	230	Cast Iron	34.4	13.1'
UPS 50-80/4F (2-Speed)	50	3/4	460	Cast Iron	68.6	26.2'
UPS 50-80/4F (3-Speed)	50	3/4	115	Cast Iron	68.6	26.2'
UPS 50-80/4F (3-Speed)	50	3/4	230	Cast Iron	68.6	26.2'
UPS 40-80/4F (3-Speed)	40	1/2	230	Cast Iron	48.6	26.2'
UPS 40-80/4F (3-Speed)	40	1/2	115	Cast Iron	48.6	26.2'
UPS 40-80/4F (3-Speed)	40	1/2	230	Cast Iron	48.6	26.2'
UPS 40-80/4F (2-Speed)	40	1/2	460	Cast Iron	48.6	26.2'
UPS 50-80/2F (2-Speed)	50	3/4	460	Cast Iron	62.1	26.2'
UPS 50-80/2F (3-Speed)	50	3/4	230	Cast Iron	62.9	26.2'
UPS 50-80/2F (3-Speed)	50	3/4	230	Cast Iron	62.1	26.2'
UPS 50-80/2F (3-Speed)	50	3/4	115	Cast Iron	62.1	26.2'
UPS 40-80/2F (3-Speed)	40	3/4	230	Cast Iron	45.3	26.2'
UPS 40-80/2F (3-Speed)	40	3/4	230	Cast Iron	45.3	26.2'
UPS 40-80/2F (2-Speed)	50	3/4	460	Cast Iron	68.6	26.2'
UPS 80-40/4F (3-Speed)	80	1/2	230	Cast Iron	82.8	13.1'
UPS 80-40/4F (2-Speed)	80	1/2	460	Cast Iron	82.8	13.1'
UPS 53-55/57F (3-Speed)	53	3/4	460	Cast Iron	62.1	55/57 dm
UPS 53-55/57F (3-Speed)	53	3/4	115	Cast Iron	62.1	55/57 dm
UPS 53-55/57F (3-Speed)	53	3/4	230	Cast Iron	62.1	55/57 dm
UPS 53-55/57F (3-Speed)	53	3/4	230	Cast Iron	62.1	55/57 dm
UPS 40-160/2F (2-Speed)	40	3/4	460	Cast Iron	48	52.5'
UPS 40-160/2F (3-Speed)	40	3/4	115	Cast Iron	48	52.5'
UPS 40-160/2F (3-Speed)	40	3/4	230	Cast Iron	48	52.5'
UPS 32-40FB (2-Speed)	32	1/3	460	Bronze	21.4	13.1'
UPS 32-40FB (3-Speed)	32	1/3	230	Bronze	21.9	13.1'
UPS 32-40FB (3-Speed)	32	1/3	115	Bronze	21.9	13.1'
UPS 32-40FB (3-Speed)	32	1/3	230	Bronze	21.4	13.1'
UPS 32-80FB (2-Speed)	32	1/2	460	Bronze	27.7	26.2'
UPS 32-80FB (3-Speed)	32	1/2	230	Bronze	28.1	26.2'
UPS 32-80FB (3-Speed)	32	1/2	115	Bronze	28.1	26.2'
UPS 32-80FB (3-Speed)	32	1/2	230	Bronze	27.7	26.2'
UPS 80-80/4F (3-Speed)	80	1-1/2	230	Cast Iron	119	26.2'
UPS 50-160/2F (3-Speed)	50	1-1/2	230	Cast Iron	74.2	52.5'
UPS 50-160/2F (2-Speed)	50	1-1/2	460	Cast Iron	74.2	52.5'
UPS 50-40FB (3-Speed)	50	1/3	230	Bronze	51.4	13.1'
UPS 50-40FB (2-Speed)	50	1/3	460	Bronze	49.9	13.1'
UPS 50-40FB (3-Speed)	50	1/3	115	Bronze	51.4	13.1'
UPS 50-40FB (3-Speed)	50	1/3	230	Bronze	49.9	13.1'
UPS 40-240/2F (2-Speed)	40	1-1/2	460	Cast Iron	53.3	78.7'
UPS 40-240/2F (3-Speed)	40	1-1/2	230	Cast Iron	53.3	78.7'
UPS 32-80/2F (3-Speed)	32	1/2	230	Cast Iron	28.1	26.2'
UPS 40-40FB (3-Speed)	40	1/3	230	Bronze	35.6'	13.1'
UPS 40-40FB (2-Speed)	40	1/3	460	Bronze	35.6	13.1'
UPS 40-40FB (3-Speed)	40	1/3	115	Bronze	34.4	13.1'
UPS 40-40FB (3-Speed)	40	1/3	230	Bronze	34.4	13.1'
UPS 50-240/2F (2-Speed)	50	2	460	Cast Iron	78.6	78.7'
UPS 50-240/2F (3-Speed)	50	2	230	Cast Iron	78.6	78.7'
UPS 50-80/2FB (3-Speed)	50	3/4	115	Bronze	62.1	26.2'
UPS 40-80/2FB (3-Speed)	40	3/4	230	Bronze	43.8	26.2'
UPS 50-80/2FB (3-Speed)	50	3/4	230	Bronze	62.1	26.2'
UPS 50-80/2FB (2-Speed)	50	3/4	460	Bronze	62.9	26.2'
UPS 100-40/4F (3-Speed)	100	1	230	Cast Iron	116	13.1'
UPS 100-40/4 (2-Speed)	100	1	460	Cast Iron	116	13.1'
UPS 80-160/2F (2-Speed)	80	3	460	Cast Iron	117	52.5'
UPS 80-160/2F (3-Speed)	80	3	230	Cast Iron	117	52.5'
UPS 40-80/4FB (3-Speed)	40	1/2	230	Bronze	48.6	26.2'
UPS 40-80/4FB (3-Speed)	40	1/2	230	Bronze	49.9	26.2'
UPS 40-80/4FB (3-Speed)	40	1/2	115	Bronze	48.6	26.2'
UPS 40-80/4FB (2-Speed)	40	1/2	460	Bronze	49.9	26.2'
UPS 50-80/4FB (3-Speed)	50	3/4	230	Bronze	69.2	26.2'
UPS 50-80/4FB (3-Speed)	50	3/4	115	Bronze	68.6	26.2'
UPS 50-80/4FB (2-Speed)	50	3/4	460	Bronze	69.2	26.2'
UPS 50-80/4FB (3-Speed)	50	3/4	230	Bronze	68.6	26.2'
UPS 40-80/2FB (2-Speed)	40	3/4	460	Bronze	43.8	26.2'
UPS 40-80/2FB (3-Speed)	40	3/4	230	Bronze	43.8	26.2'
UPS 40-80/2FB (3-Speed)	40	3/4	115	Bronze	45.3	26.2'
UPS 40-80/2FB (3-Speed)	40	1-1/2	230	Bronze	45.3	26.2'
UPS 32-160/2FB (2-Speed)	32	3/4	460	Bronze	33.5	52.5'
UPS32-160B/2 (3-Speed)	1-1/2"	3/4	115	Bronze	32.9	52.5'
UPS 32-160FB (3-Speed)	32	3/4	230	Bronze	33.5	52.5'
UPS 32-160/2FB (3-Speed)	32	3/4	230	Bronze	32.9	52.5'
UPS 75-69F (2-Speed)	75	1-1/2	460	Cast Iron	74.2	22.6'
UPS 75-69F (3-Speed)	75	1-1/2	230	Cast Iron	74.2	22.6'
UPS 75-69F (3-Speed)	75	1-1/2	230	Cast Iron	74.2	22.6'
UPS 40-160FB (3-Speed)	40	3/4	230	Bronze	46.8	52.5'
UPS 40-160FB (2-Speed)	40	3/4	460	Bronze	46.8	52.5'
UPS 40-160FB (3-Speed)		3/4	230	Bronze	48	52.5'
UPS 40-160FB (3-Speed)	40	3/4	115	Bronze	48	52.5'
UPS 53-55/57FB (3-Speed)	53	3/4	230	Bronze	62.9	55/57 dm
UPS 53-55/57FB (2-Speed)	53	3/4	460	Bronze	62.9	55/57 dm
UPS 53-55/57FB (3-Speed)	53	3/4	230	Bronze	62.1	55/57 dm
UPS 53-55/57FB (3-Speed)	53	3/4	115	Bronze	62.1	55/57 dm
UPS 40-240FB (3-Speed)	40	1-1/2	230	Bronze	57.2	78.7'
UPS 40-240FB (3-Speed)	40	1-1/2	230	Bronze	53.3	78.7'
UPS 40-240FB (2-Speed)	40	1-1/2	460	Bronze	57.2	78.7'
UPS 100-40/4FB (3-Speed)	100	1	230	Bronze	116	13.1'
UPS 100-40FB (2-Speed)	100	1	460	Bronze	116	13.1'
UPS 80-40FB (2-Speed)	80	1/2	460	Bronze	82.8	13.1'
UPS 80-40FB (3-Speed)	80	1/2	230	Bronze	82.8	13.1'
UPS 50-160FB (3-Speed)	50	1-1/2	230	Bronze	74.2	52.5'
UPS 50-160FB (2-Speed)	50	1-1/2	460	Bronze	74.2	52.5'
UPS 50-160FB (3-Speed)	50	1-1/2	230	Bronze	74.2	52.5'
UPS 80-80FB (3-Speed)	80	1-1/2	230	Bronze	119	26.2'
UPS 50-240FB (2-Speed)	50	2	460	Bronze	78.6	78.7'
UPS 50-240/2FB (3-Speed)	50	2	230	Bronze	78.6	78.7'
UPS 80-160FB (2-Speed)	80	3	460	Bronze	117	52.5'
UPS 80-160FB (3-Speed)	80	3	230	Bronze	117	52.5'
UPS 75-69FB (2-Speed)	75	1-1/2	460	Bronze	74.2	22.6'
UPS 75-69FB (3-Speed)	75	1-1/2	230	Bronze	74.2	22.6'

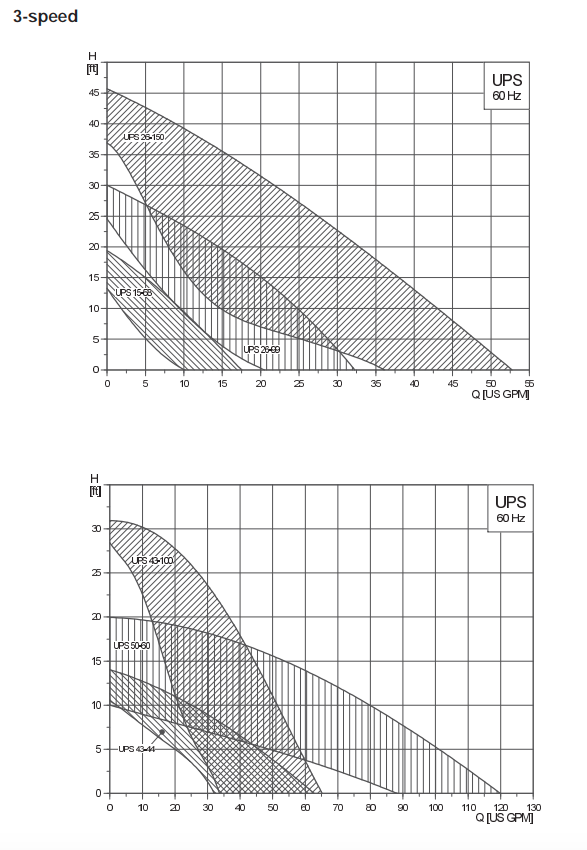

PERFORMANCE CURVES

grundfos ups series circulator pumps curves

*Please note: to view the complete listing of performance curves, please reference the UPS series brochure.

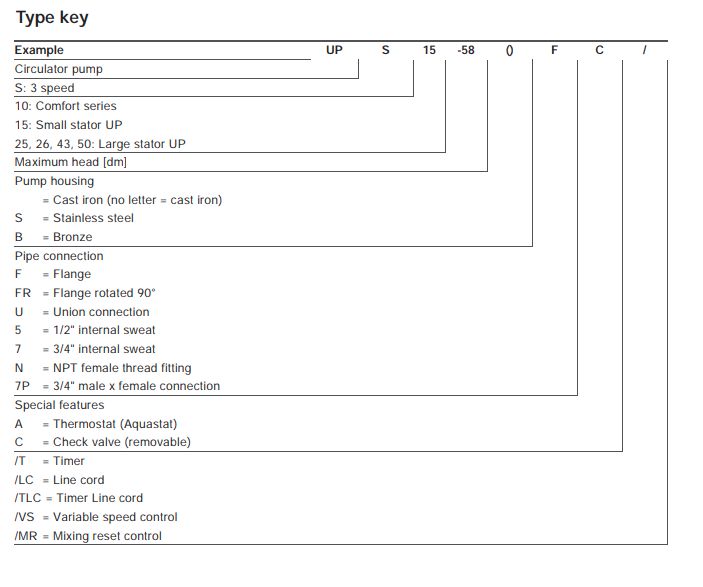

PUMP IDENTIFICATION

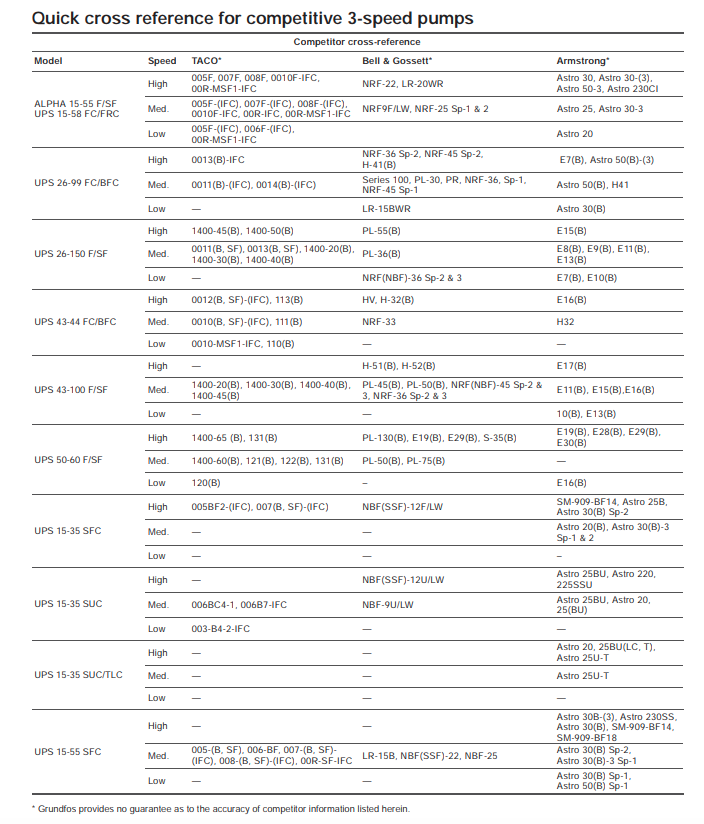

CROSS REFERENCE

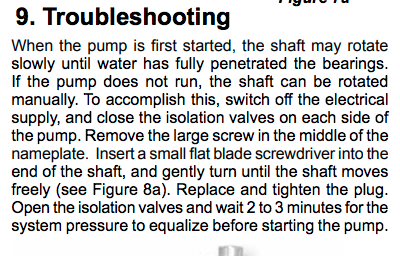

TROUBLESHOOTING

BROCHURE

Grundfos UPS Series Circulator Pump Brochure

INSTRUCTIONS

Grundfos UPS Series Circulator Pump Instructions

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
