Goulds GS Series Submersible Well Pumps Buyers Guide & Review

The Goulds GS is part of the Submersible Well Pump Series which is designed for use in minimum 4" diameter water wells. Each pump end below is close coupled to a premium Centripro motor. Designed with a stainless steel construction for strength and corrosion resistance, these pumps feature two cast-in safety line loops for installer convenience.

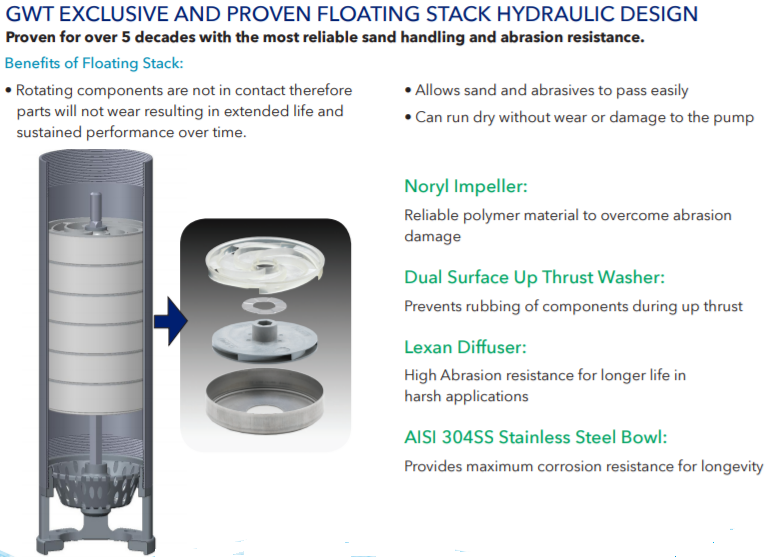

Submersible Well Pump Series, GS pumps are built for dependable operation and long service life. The casing is corrosion-resistant stainless steel, the impellers are Noryl and the diffusers are Lexan for excellent abrasion resistance, with all non-metallic parts being non-toxic and FDA-compliant. The floating impeller stack provides superior sand handling and durability, while the proprietary engineering polymer bearing provides additional abrasion and wear resistance. The enclosed upper bearing is mounted in a durable Noryl bearing spider for excellent abrasion resistance. The discharge head also includes a built-in stainless steel check valve.

The motor shaft has a six-sided hex shaft design for positive impeller drive, while the motor adapter is Cast 303 stainless steel for rigid/accurate alignment while providing easy access to motor mounting nuts using a standard open-end wrench. The motor is powered for continuous operation within the motor limits without damage. In general, the GS series units are easily field serviceable with common tools and readily available Goulds Pump Repair Parts.

Please note that 3-wire pumps require a control box for operation. Control box sold separately.

GOULDS GS SERIES WELL PUMP

Model Comparison Chart

Model	Discharge	HP	Voltage	Phase	Best Efficiency GPM	Wire	Stages
10GS05412RCL	1-1/4" NPT	1/2	230	1	10	3-Wire	5
10GS05411RCL	1-1/4" NPT	1/2	115	1	10	3-Wire	5
10GS05411CL	1-1/4" NPT	1/2	115	1	10	3-Wire	7
10GS05412CL	1-1/4" NPT	1/2	230	1	10	3-Wire	7
10GS05421RC	1-1/4" NPT	1/2	115	1	10	2-Wire	5
10GS05422RC	1-1/4" NPT	1/2	230	1	10	2-Wire	5
10GS05421C	1-1/4" NPT	1/2	115	1	10	2-Wire	7
10GS05422C	1-1/4" NPT	1/2	230	1	10	2-Wire	7
7GS05412RCL	1-1/4" NPT	1/2	230	1	7	3-Wire	7
7GS05411RCL	1-1/4" NPT	1/2	115	1	7	3-Wire	7
13GS05412CL	1-1/4" NPT	1/2	230	1	13	3-Wire	5
13GS05411CL	1-1/4" NPT	1/2	115	1	13	3-Wire	5
7GS05412CL	1-1/4" NPT	1/2	230	1	7	3-Wire	10
7GS05411CL	1-1/4" NPT	1/2	115	1	7	3-Wire	10
7GS05421RC	1-1/4" NPT	1/2	115	1	7	2-Wire	7
7GS05422RC	1-1/4" NPT	1/2	230	1	7	2-Wire	7
13GS05421C	1-1/4" NPT	1/2	115	1	13	2-Wire	5
13GS05422C	1-1/4" NPT	1/2	230	1	13	2-Wire	5
5GS05411RCL	1-1/4" NPT	1/2	115	1	5	3-Wire	9
5GS05412RCL	1-1/4" NPT	1/2	230	1	5	3-Wire	9
7GS05421C	1-1/4" NPT	1/2	115	1	7	2-Wire	10
7GS05422C	1-1/4" NPT	1/2	230	1	7	2-Wire	10
5GS05412CL	1-1/4" NPT	1/2	230	1	5	3-Wire	12
5GS05411CL	1-1/4" NPT	1/2	115	1	5	3-Wire	12
5GS05421RC	1-1/4" NPT	1/2	115	1	5	2-Wire	9
5GS05422RC	1-1/4" NPT	1/2	230	1	5	2-Wire	9
10GS07412CL	1-1/4" NPT	3/4	230	1	10	3-Wire	14
18GS07412CL	1-1/4" NPT	3/4	230	1	18	3-Wire	6
13GS07412CL	1-1/4" NPT	3/4	230	1	13	3-Wire	7
5GS05421C	1-1/4" NPT	1/2	115	1	5	2-Wire	12
5GS05422C	1-1/4" NPT	1/2	230	1	5	2-Wire	12
10GS07422C	1-1/4" NPT	3/4	230	1	10	2-Wire	10
7GS07412CL	1-1/4" NPT	3/4	230	1	7	3-Wire	7
18GS07422C	1-1/4" NPT	3/4	230	1	18	2-Wire	6
25GS10412CL	1-1/4" NPT	1	230	1	25	3-Wire	7
13GS07422C	1-1/4" NPT	3/4	230	1	13	2-Wire	7
18GS10412CL	1-1/4" NPT	1	230	1	18	3-Wire	8
13GS10412CL	1-1/4" NPT	1	230	1	13	3-Wire	10
10GS10412CL	1-1/4" NPT	1	230	1	10	3-Wire	12
7GS07422C	1-1/4" NPT	3/4	230	1	7	2-Wire	13
25GS10422C	1-1/4" NPT	1	230	1	25	2-Wire	7
18GS10422C	1-1/4" NPT	1	230	1	18	2-Wire	8
5GS07412CL	1-1/4" NPT	3/4	230	1	5	3-Wire	15
13GS10422C	1-1/4" NPT	1	230	1	13	2-Wire	10
10GS10422C	1-1/4" NPT	1	230	1	10	2-Wire	12
7GS10412CL	1-1/4" NPT	1	230	1	7	3-Wire	17
5GS07422C	1-1/4" NPT	3/4	230	1	5	2-Wire	15
25GS15412CL	1-1/4" NPT	1-1/2	230	1	25	3-Wire	9
7GS10422C	1-1/4" NPT	1	230	1	7	2-Wire	17
18GS15412CL	1-1/4" NPT	1	230	1	18	3-Wire	11
5GS10412CL	1-1/4" NPT	1	230	1	5	3-Wire	20
13GS15412CL	1-1/4" NPT	1-1/2	230	1	13	3-Wire	12
10GS15412CL	1-1/4" NPT	1-1/2	230	1	10	3-Wire	17
5GS10422C	1-1/4" NPT	1	230	1	5	2-Wire	20
25GS15422C	1-1/4" NPT	1-1/2	230	1	25	2-Wire	9
7GS15412CL	1-1/4" NPT	1-1/2	230	1	7	3-Wire	22
18GS15422C	1-1/4" NPT	1-1/2	230	1	18	2-Wire	11
13GS15422C	1-1/4" NPT	1-1/2	230	1	13	2-Wire	12
25GS20412CL	1-1/4" NPT	2	230	1	25	3-Wire	11
18GS20412CL	1-1/4" NPT	2	230	1	18	3-Wire	14
10GS15422C	1-1/4" NPT	1-1/2	230	1	10	2-Wire	17
13GS20412CL	1-1/4" NPT	2	230	1	13	3-Wire	14
10GS20412CL	1-1/4" NPT	2	230	1	10	3-Wire	14
7GS15422C	1-1/4" NPT	1-1/2	230	1	7	2-Wire	22
5GS15412CL	1-1/4" NPT	1-1/2	230	1	5	3-Wire	26
5GS15422C	1-1/4" NPT	1-1/2	230	1	5	2-Wire	26
7GS20412CL	1-1/4" NPT	2	230	1	7	3-Wire	14
25GS30412CL	1-1/4" NPT	3	230	1	25	3-Wire	15
18GS30412CL	1-1/4" NPT	3	230	1	18	3-Wire	19
13GS30412CL	1-1/4" NPT	3	230	1	13	3-Wire	21
5GS20412CL	1-1/4" NPT	2	230	1	5	3-Wire	14
10GS30412CL	1-1/4" NPT	3	230	1	10	3-Wire	27
7GS30412CL	1-1/4" NPT	3	230	1	7	3-Wire	34
25GS50412RCL	1-1/4" NPT	5	230	1	25	3-Wire	22
18GS50412RCL	1-1/4" NPT	5	230	1	18	3-Wire	24
25GS50412CL	1-1/4" NPT	5	230	1	25	3-Wire	26
18GS50412CL	1-1/4" NPT	5	230	1	18	3-Wire	30
10GS50412RCL	1-1/4" NPT	5	230	1	10	3-Wire	35
10GS50412CL	1-1/4" NPT	5	230	1	10	3-Wire	42

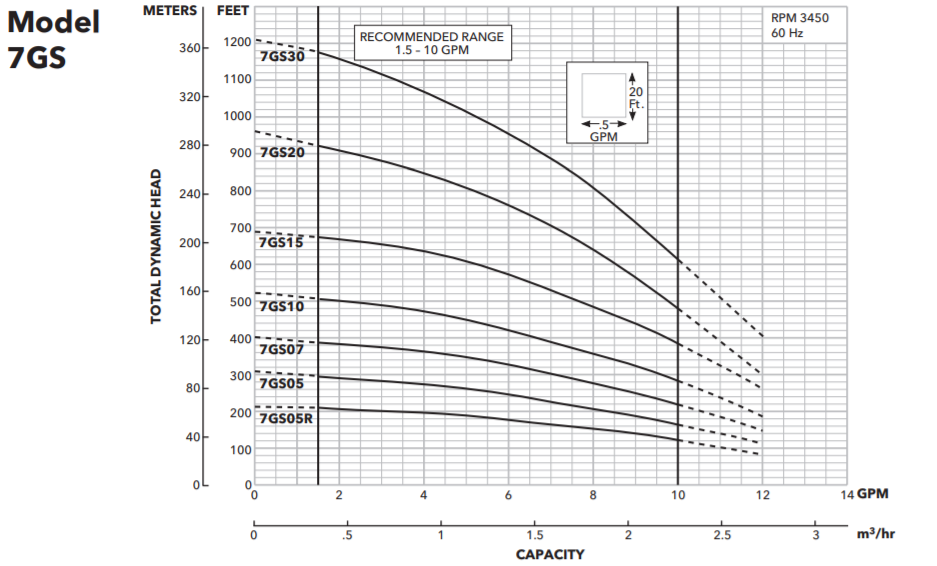

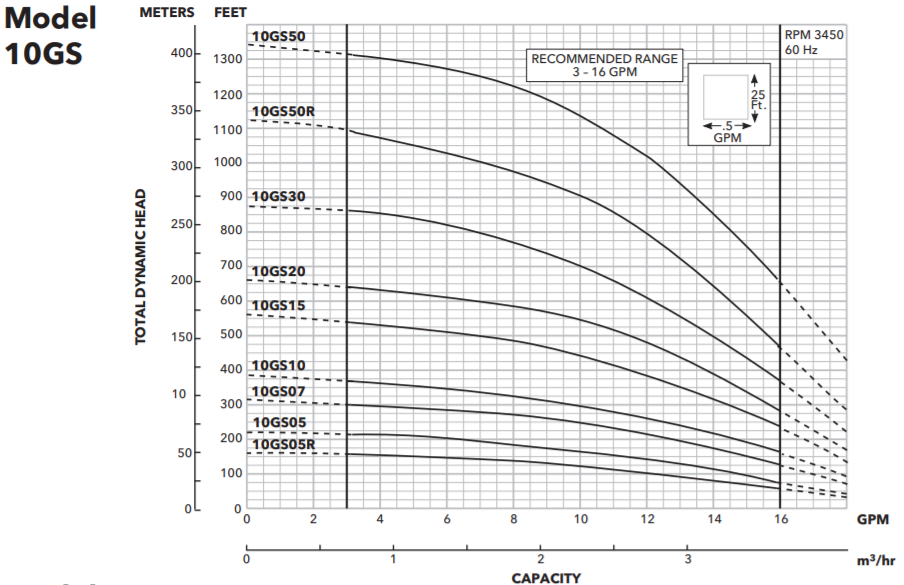

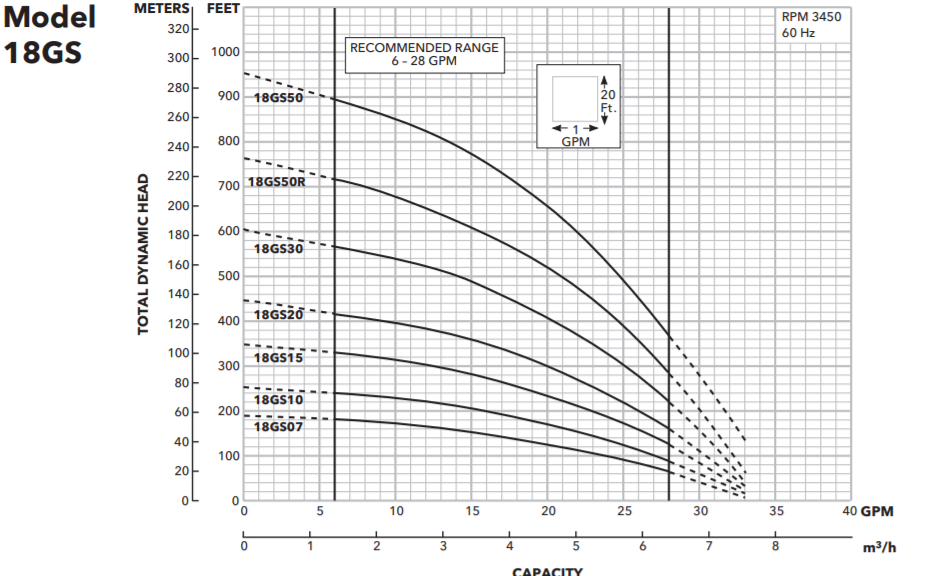

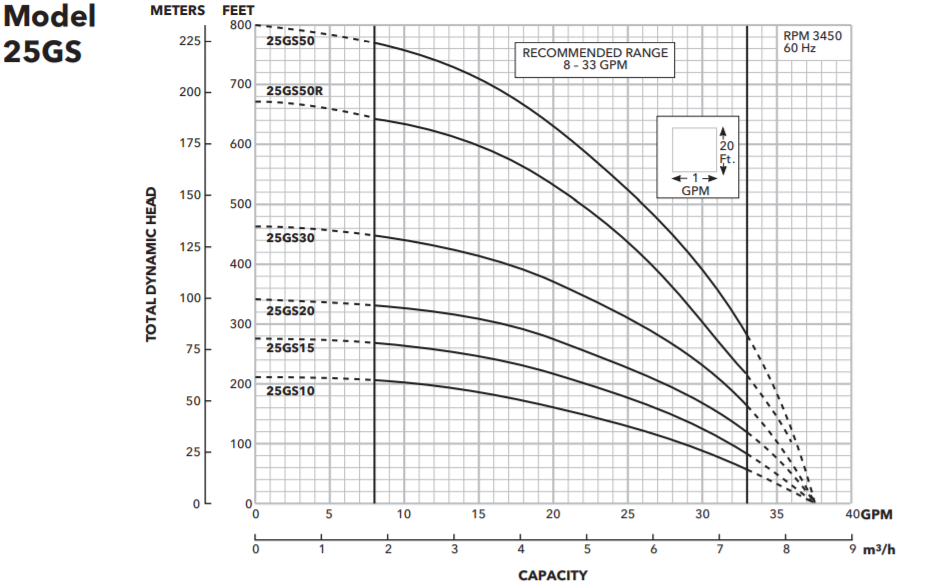

PERFORMANCE RATINGS

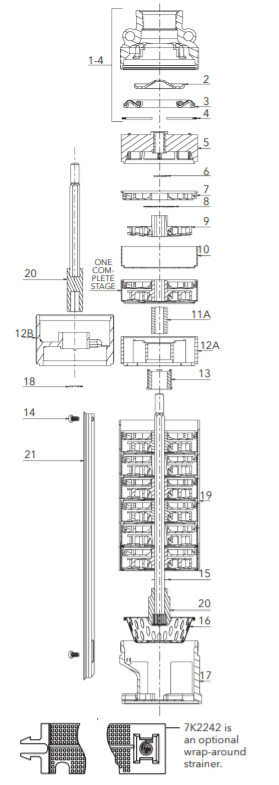

BREAKDOWN DIAGRAMS

DIMENSIONS

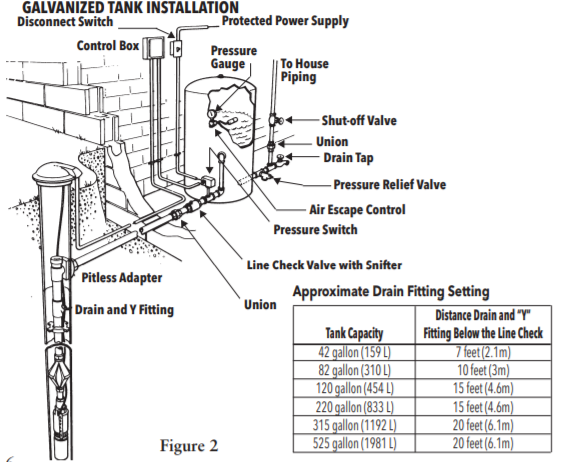

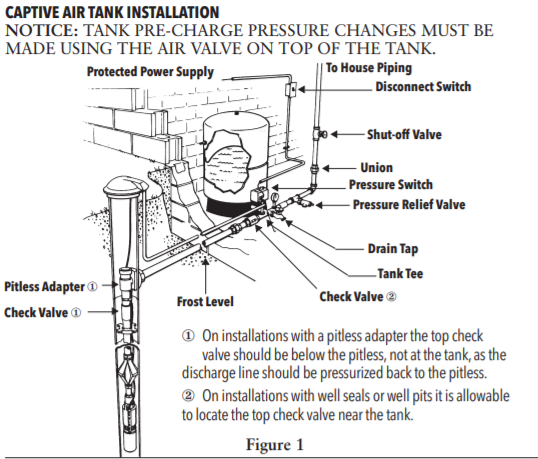

INSTALLATION

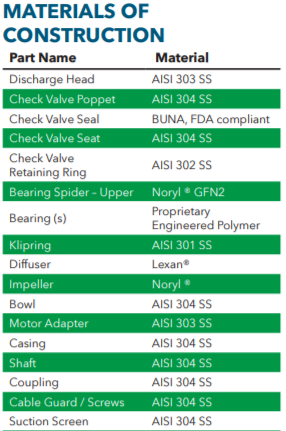

MATERIALS OF CONSTRUCTION

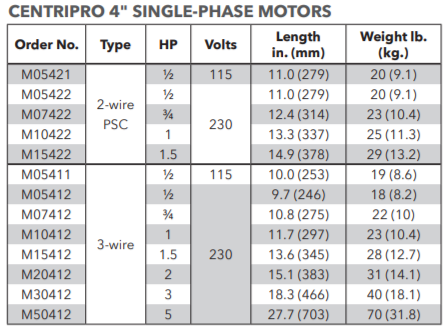

MOTOR INFORMATION

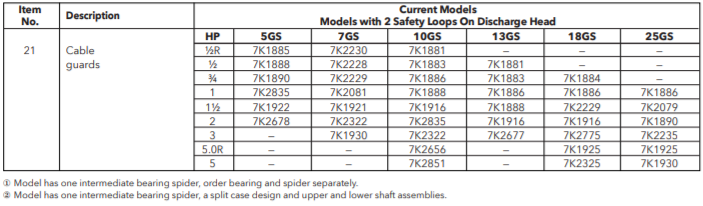

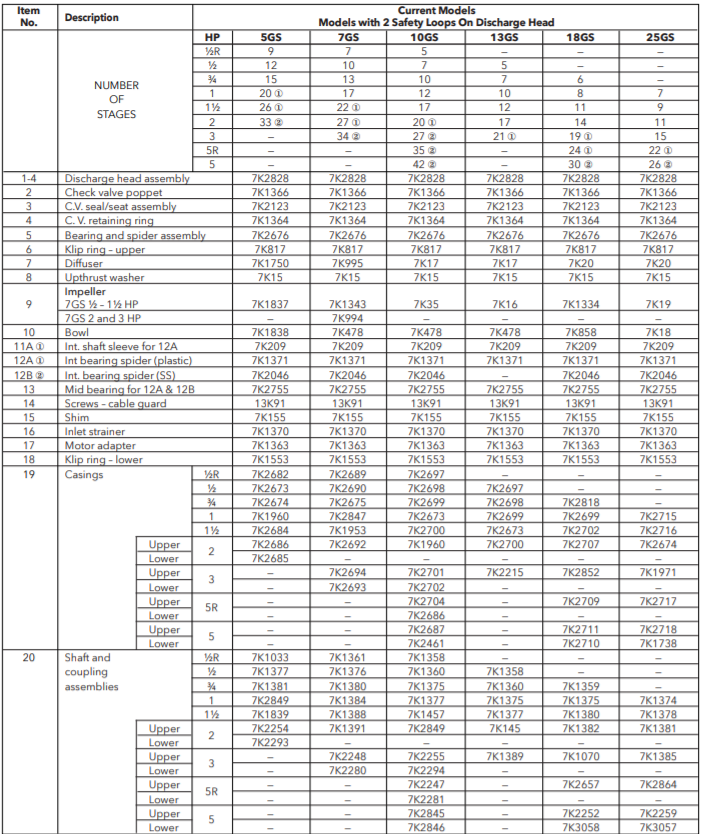

REPAIR PARTS

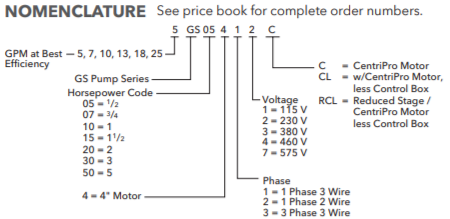

NOMENCLATURE GUIDE

BROCHURE

Goulds GS Series Submersible Well Pump Brochure

SPECIFICATIONS

Goulds GS Series Submersible Well Pump Brochure

INSTALLATION MANUAL

Goulds GS Series Submersible Well Pump Installation Manual

REPAIR PARTS

Goulds GS Series Submersible Well Pump Repair Parts (Pumps Built 02/2003-07/2005)

Goulds GS Series Submersible Well Pump Repair Parts (Pumps Built After 07/2005)

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability, and shipping information. Call our toll-free number 1-800-429-0800 to speak to an expert today.
