Zoeller Scale Removal System Buyers Guide & Review

Zoeller Pumps Buyer Guides

April 17, 2019

Zoeller Scale Removal System Buyers Guide & Review

Zoeller's scale removal system comes preassembled and removes line build-up in tankless water heating units. An internal, reusable filter sock captures debris removed from the pipe system. A durable, air-filled 1/6 HP submersible pump and 3/4” stainless steel braided flush lines ensure quality and reliability for years of trouble-free performance. Recommended by professionals job after job, this system is an ideal and economical tool for plumbing contractors who install and service tankless water heating systems.

Features

Preassembled - includes hoses, tank, pump, and fittings
Internal reusable filter sock captures debris
Meets flushing requirements for tankless water heating systems

Specifications:

Pump - 1/6 HP, 3.0 FLA, 345 watts, 115V, air-filled (no oil), quiet running submersible pump
Tank & Lid - 5 gallon (23 L) polyethylene tank with stainless steel hardware
3/4" stainless steel braided flush lines
Stainless steel handles
Corrosion resistant components
Recirculation rate: 3 gallons per minute* (13.6 LPM)
100% factory assembled
Patent pending

ZOELLER SCALE REMOVAL SYSTEM

Model Comparison Chart

Model	Connection Size (NPT)	HP	Voltage	Phase	GPM	Amps
109-0005	3/4"	1/6	115	1	3	3

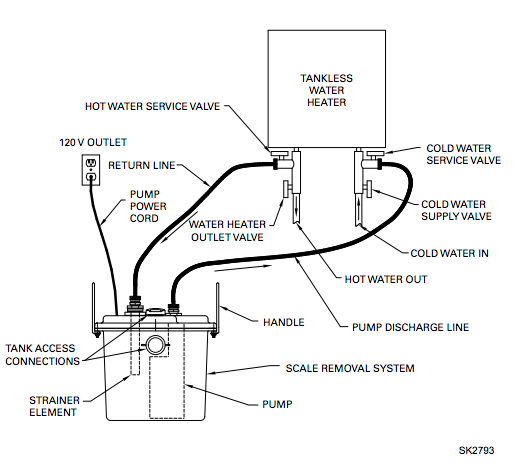

DIAGRAM

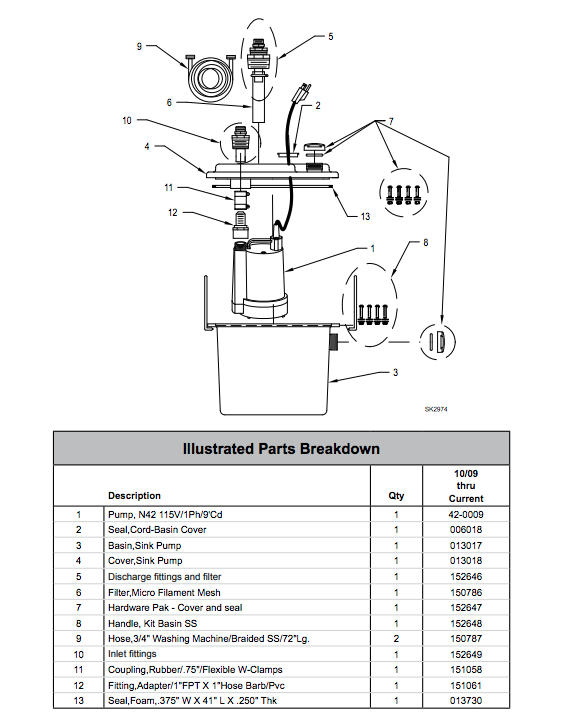

PARTS BREAKDOWN

BROCHURE

Zoeller Scale Removal System Brochure

INSTRUCTIONS

Zoeller Scale Removal System Instructions

SPECIFICATIONS

Zoeller Scale Removal System Specifications

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
