Berkeley LTHH Series Centrifugal Pumps Buyers Guide & Review
The Berkeley LTHH series centrifugal pumps are designed for use in dewatering excavation, water supply, water transfer, seed bed and plot irrigation, stock watering, sump drainage, marine pumping, and general liquid transfer applications in residential, contractor, and agricultural settings.
The LTHH models are interchangeable with the original Berkeley LTH series.
Features:
- Rugged construction, close-grained cast iron body, specially treated for corrosion resistance
- Single-body-fill priming to 25' lifts in less than five minutes
- Noryl impeller is precision-molded for perfect balance… ultra-smooth for highest performance and efficiency
- With multi-port, precision-molded, reinforced polypropylene diffuser, pump primes faster and handles more air
- Normal wearing parts are easily accessible for service and replacement, without disturbing piping or mounting
- Motor windings use superior insulation materials to protect against excessive moisture and contaminants… ensure prolonged motor life
- Balanced rotor is die cast under high pressures for uniform performance and greater efficiency
- Drain port provided for easy serviceability
| BERKELEY LTHH SERIES LAWN & IRRIGATION PUMPS |

Model Comparison Chart
| Model |
Discharge |
Suction |
HP |
Voltage |
Phase |
GPM |
Approx. Wt. |
| 10LTHH |
1-1/2" |
2" |
1 |
115/230 |
1 |
55 |
52 lbs. |
| 15LTHH |
1-1/2" |
2" |
1-1/2 |
115/230 |
1 |
70 |
58 lbs. |
| 10LTHH3 |
1-1/2" |
2" |
1 |
208/230/460 |
3 |
55 |
52 lbs. |
| 15LTHH3 |
1-1/2" |
2" |
1-1/2 |
208/230/460 |
3 |
70 |
58 lbs. |
| 20LTHH |
2" |
2" |
2 |
230 |
1 |
75 |
83 lbs. |
| 20LTHH3 |
2" |
2" |
2 |
208/230/460 |
3 |
75 |
83 lbs. |
| 25LTHH |
2" |
2" |
2-1/2 |
230 |
1 |
80 |
85 lbs. |
| 25LTHH3 |
2" |
2" |
2-1/2 |
208/230/460 |
3 |
80 |
85 lbs. |

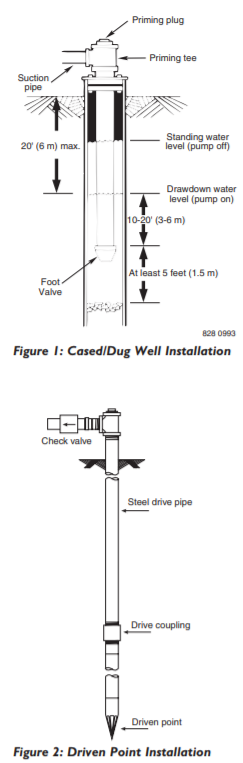

| RECOMMENDED INSTALLATIONS |

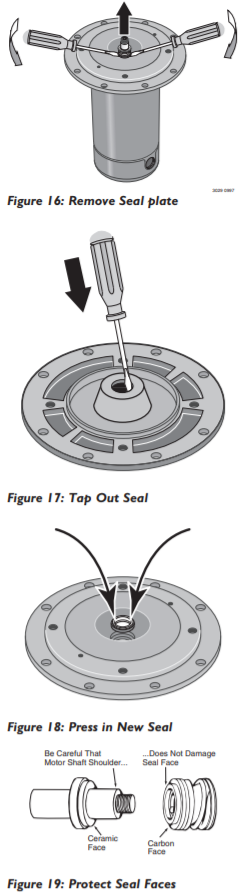

| PUMP SERVICE - SEAL REPLACEMENT |
