Barnes OGV Series Grinder Pumps Buyers Guide & Review

The Barnes OGV series grinder pumps are designed to reduce sewage particles to a finely ground slurry. The OmniGrind Plus features patented two stage technology. It is suitable for domestic, commercial, and light industrial applications.

Features

Recessed vortex impeller design virtually eliminates pump damage from cavitation
Unique and robust 3-bearing shaft support design significantly extends mechanical seal life by minimizing shaft deflection
Cast iron impeller will not corrode
Exclusive Slicerator grinder eliminates jams
Quick-connect power cord eliminates wiring mistakes
Available from factory with pre-wired and tested basin package
Available in 2 hp, 3 hp, 5 hp, and 7.5 hp models
Double mechanical seal provides clean environment for long life

BARNES OGV SERIES GRINDER PUMPS

Barnes OGV Series Grinder Pumps

Model Comparison Chart

Model	Discharge (NPT Vertical)	HP	Voltage	Phase	GPM	Max. Head
OGVF2022L	1-1/4"	2	240	1	58	105'
OGVH2022L	1-1/4"	2	240	1	30	125'
OGVF2022AUF	1-1/4"	2	240	1	58	105'
OGVF2022M	1-1/4"	2	240	1	58	101'
OGVH2022AUE	1-1/4"	2	240	1	58	101'
OGVF2022AUE	1-1/4"	2	240	1	58	101'
OGVH2022AUF	1-1/4"	2	240	1	30	125'

PERFORMANCE CURVES

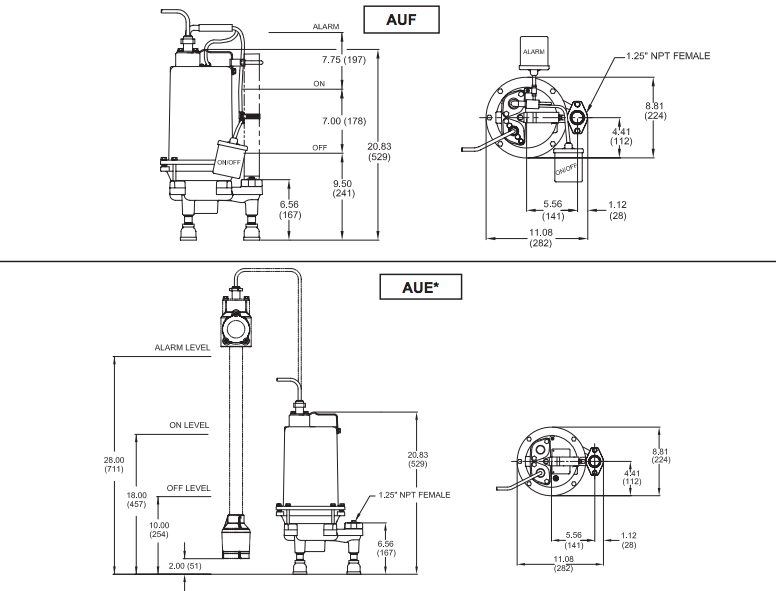

DIMENSIONS

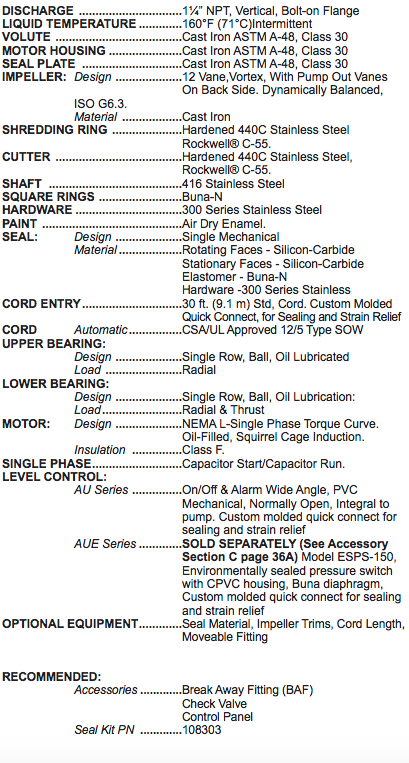

SPECIFICATIONS

Barnes OGV Series Grinder Pump Specifications

BROCHURE

Barnes OGV Series Grinder Pump Brochure

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
