Barnes SEV412 Series Sewage System Package Buyers Guide & Review

The Barnes SEV412 series preassembled simplex sewage system package is ideal for residential and commercial sewage or sump applications. This series is designed to handle wastes from lavatories, laundry tubs, floor drains, water closets, etc., and will pump the water from below ground "uphill" to the sewer.

Package includes

(1) Sewage pump, model SEV412
(1) Mechanical float switch
(1) Polyethylene basin
(1) Split cover with floatree
(1) 2" Vertical compression check valve
Sch. 40 Discharge pipe, cover gasket, cover hardware, cord grommet, discharge, and vent grommets also included.

Package Features

Floatree design for easy float maintenance; Flange includes provision for optional alarm float
Split cover allows simplified basin access
Sidewall ribs lock basin in place when concrete floor is poured
Inlet hubs easily connect to piping with fl exible rubber connectors (Provided by others)
Ribbed floor limits pump rotation
Liquid Temperature 104°F (40°C)

Pump SEV412 Features

2" NPT, female, vertical discharge
Volute, motor housing, impeller and seal plate are cast iron
Impeller has a multi-vane vortex design with pump out vanes on back side
416 stainless steel shaft
Buna-N square rings
300 series stainless steel hardware
Single mechanical seal design made of Carbon/Ceramic/Buna-N
Single row, oil lubricated upper and lower ball bearings

BARNES SEV412 SERIES SEWAGE SYSTEM PACKAGES

Barnes SEV412 Series Sewage System Package

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Basin Dimensions	GPM	Max. Head
SEV412	2"	1/2	115	25"x24"	71	25'

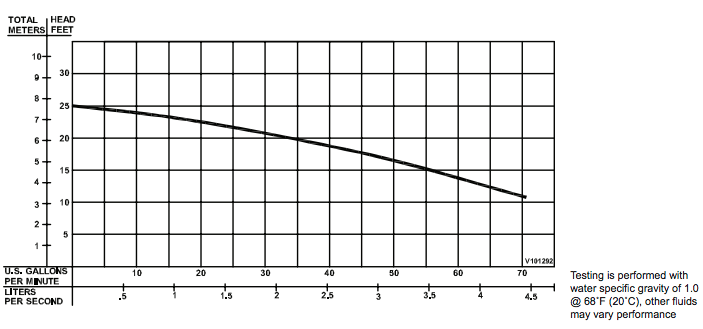

PERFORMANCE CURVE

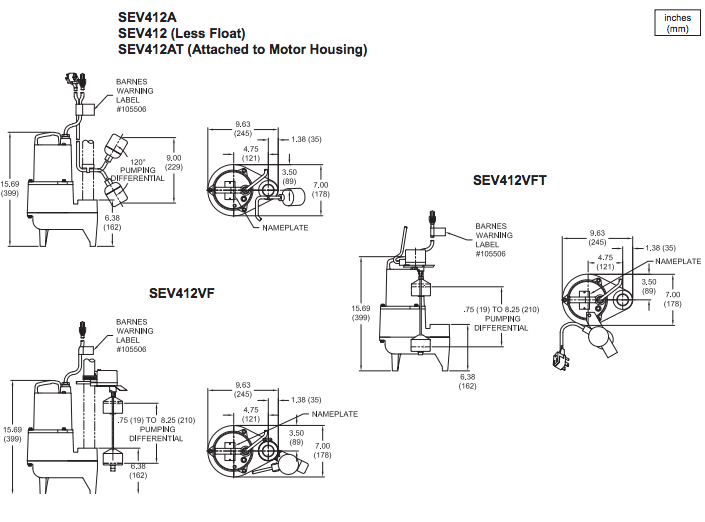

DIMENSIONS

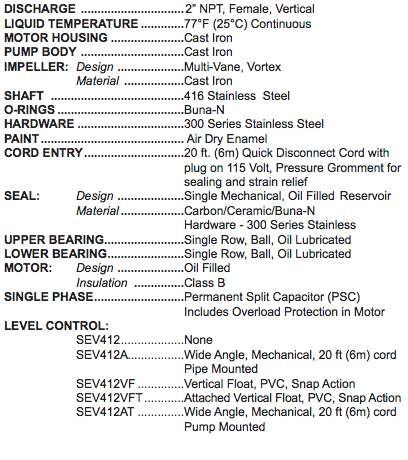

SPECIFICATIONS

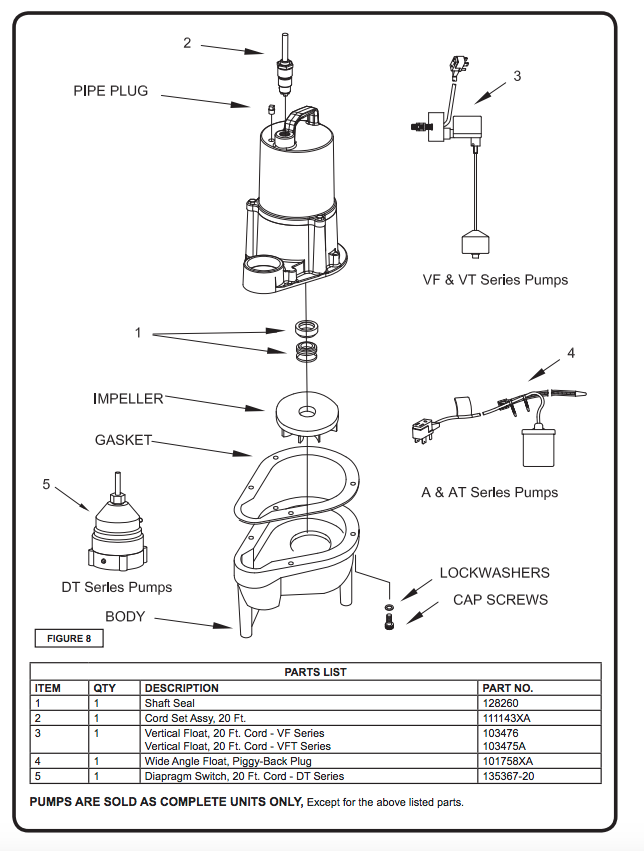

REPAIR PARTS

TROUBLESHOOTING

SPECIFICATIONS

Barnes SEV412 Series Sewage System Package Specifications

INSTALLATION MANUAL

Barnes SEV412 Series Sewage System Package Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
