Barnes SE-SP Series Sewage System Packages Buyers Guide & Review

Barnes Pumps Buyer Guides

June 17, 2019

Barnes SE-SP Series Sewage System Packages Buyers Guide & Review

The Barnes SE-SP series unassembled simplex sewage package is ideal for residences and small industrial sewage or sump applications. This series is designed to handle wastes from lavatories, laundry tubs, floor drains, water closets, etc., and will push the water from below ground up to where normal drainage will handle it.

Package includes

(1) Mechanical float switch, model 101758
(1) Polyethylene basin, model 076119
(1) Steel cover, model 076120
(1) 4" Flexible pipe fitting inlet, model 076149
(1) 2" vertical check valve 066828

Package Features

30 gallon capacity
Mechanical float switch molded inside of a waterproof float. Single control turns pump on and off automatically
Basin dimensions are 18" Diameter x 30" Deep, with 4" inlet hole
4" Flexible pipe fitting inlet has a super-tuff sanoprene construction
18" Steel cover with black powder coating, 2" vent and 2" discharge and cord openings
2" vertical check valve with hose adapters and clamps
Sch. 40 Discharge pipe, cover gasket, cover hardware, cord grommet, discharge and vent grommets also included

BARNES SE-SP SERIES SEWAGE SYSTEM PACKAGES

Barnes SE-SP Series Sewage System Package

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Basin Dimensions	GPM	Max. Head
SE411SP	2"	4/10	115	18"x30"	120	25'
SE51SP	2"	1/2	120	18"x30"	165	25'

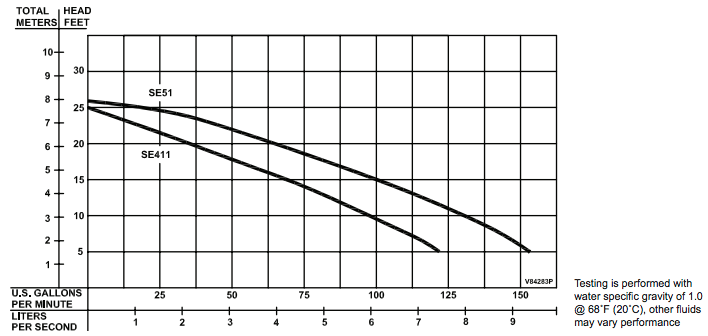

PERFORMANCE CURVE

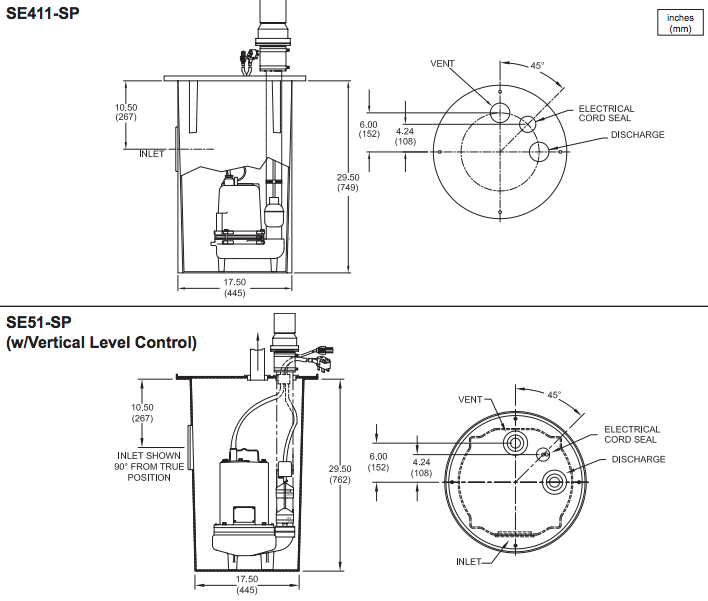

DIMENSIONS

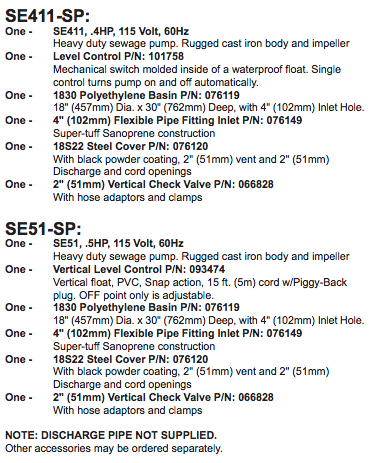

SPECIFICATIONS

REPAIR PARTS

TROUBLESHOOTING

SPECIFICATIONS

Barnes SE-SP Series Sewage System Package Specifications

INSTALLATION MANUAL

Barnes SE-SP Series Sewage System Package Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
