Barnes EHV Series Effluent Pumps Buyers Guide & Review

The Barnes EHV series of submersible effluent pumps is designed for handling greywater from wash basins, showers and baths in typical septic tank / effluent applications. It features cast iron construction, a stainless steel shaft and is CSA listed. This series is capable of handling up to 3/4" spherical solids. Barnes effluent pumps save time and replacement costs because they are interchangeable with competing effluent models. They require no additional plumbing when replacing most competitor’s pumps.

Specifications

HP - 0.5
Volt/PH - 115/1
Hz - 60
RPM - 3450
Nema Start Code - H
Full Load Amps - 6.4
Cord Length - 20 ft.

BARNES EHV SERIES EFFLUENT PUMPS

Barnes EHV Series Effluent Pumps

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Float Switch Type	GPM	Max. Head
EHV412	2"	1/2	115	Manual	48	45'
EHV412	2"	1/2	115	Manual	48	45'
EHV412A	2"	1/2	115	Piggyback Mechanical	48	45'
EHV412AT	2"	1/2	115	Piggyback Mechanical	48	45'
EHV412VF	2"	1/2	115	Piggyback Vertical	48	45'

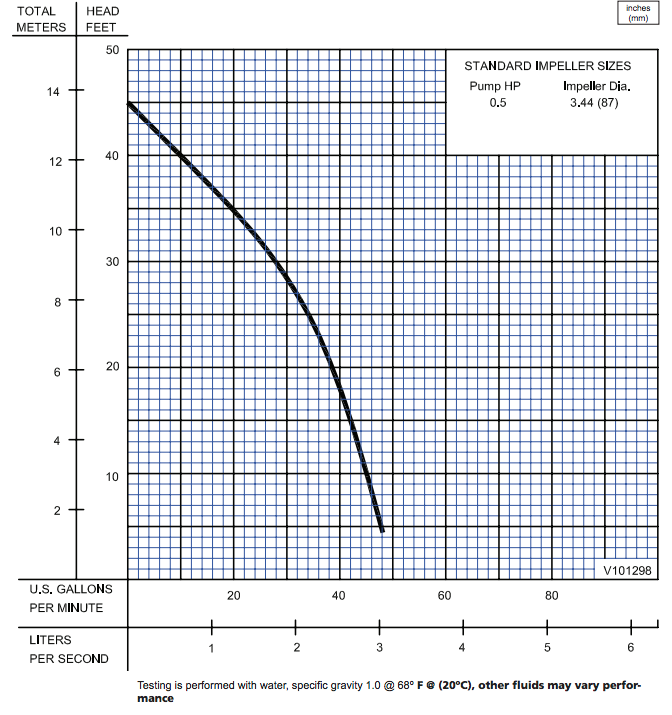

PERFORMANCE CURVES

DIMENSIONS

SPECIFICATIONS

TROUBLESHOOTING

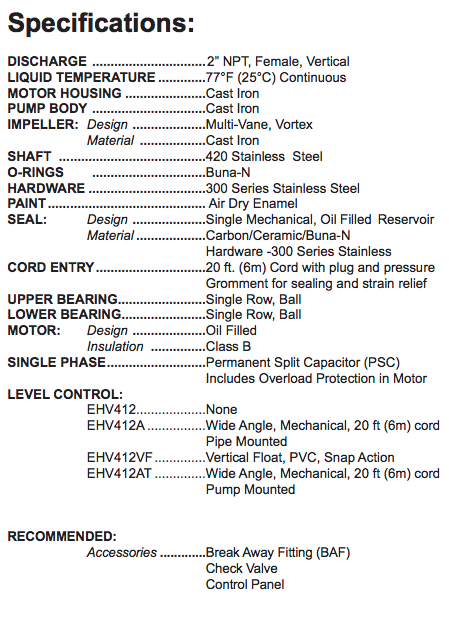

SPECIFICATIONS

Barnes EHV Series Effluent Pump Specifications

BROCHURE

Barnes EHV Series Effluent Pump Brochure

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
