Barnes EH-HT Series High Temperature Pumps Buyers Guide & Review

The Barnes EH-HT series of submersible high temperature pumps is designed for handling greywater from wash basins, showers, and baths in typical septic tank / effluent applications. It features cast iron construction and a stainless steel shaft, is CSA listed and is suitable for use with high temperature liquids.

Specifications

HP - 0.5
Volt/PH - 120/1
Hz - 60
RPM - 3450
Nema Start Code - M
Full Load Amps - 10.6
Locked Rotor Amps - 47.9

BARNES EH-HT SERIES HIGH TEMPERATURE PUMPS

Barnes EH-HT Series High Temperature Pumps

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Phase	GPM	Max. Head
EH512HT	2"	1/2	120	1	70	35'
EH522HT	2"	1/2	240	1	70	35'
EH1592HT	2"	1-1/2	200/240	3	85	84'
EH154HT	2"	1-1/2	480	3	85	84'
EH1522HT	2"	1-1/2	240	1	74	70'

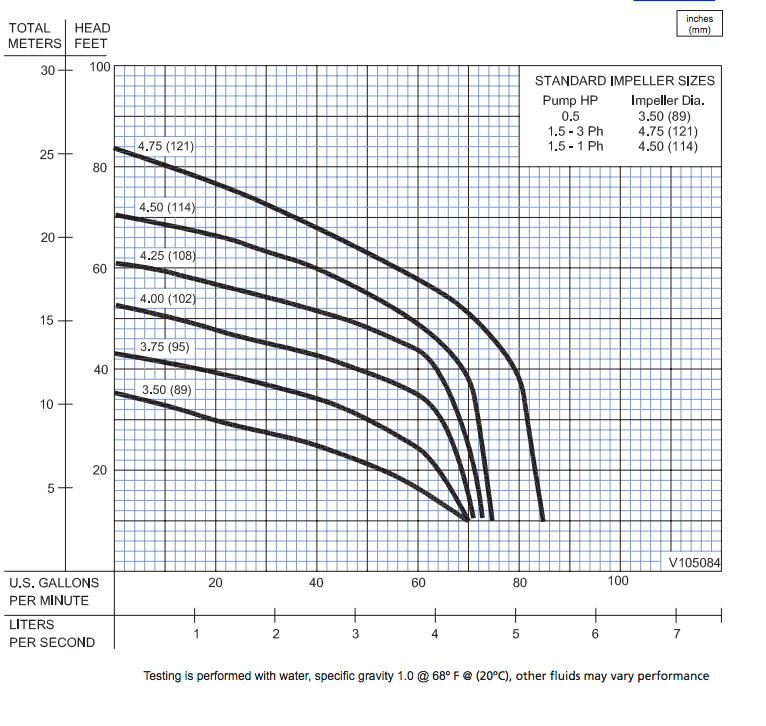

PERFORMANCE CURVE

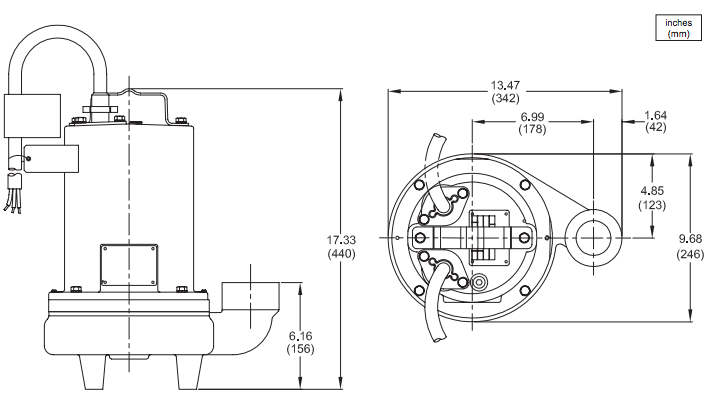

DIMENSIONS

SPECIFICATIONS

Barnes EH-HT Series High Temperature Pump Specifications

BROCHURE

Barnes EH-HT Series High Temperature Pump Brochure

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
