Barnes BP-HT Series High Temperature Pumps Buyers Guide & Review

Barnes Pumps Buyer Guides

June 14, 2019

Barnes BP-HT Series High Temperature Pumps Buyers Guide & Review

The Barnes BP-HT series of high temperature submersible, non-clog effluent pumps is designed to pump effluent or wastewater, nonexplosive and noncorrosive liquids. It has a solids handling capability of up 3/4"inches.

Features

DISCHARGE ...............................2” NPT, Female, Vertical
LIQUID TEMPERATURE .............200°F (93°C) Continuous
VOLUTE .......................................(BP) Cast Iron, (BP-BR) Bronze
MOTOR HOUSING .....................(BP) Cast Iron, (BP-BR) Bronze
SEAL PLATE ...............................(BP) Cast Iron, (BP-BR) Bronze
IMPELLER: Design ....................2 Vane open, Dynamically Balanced,
ISO G6.3

BARNES BP-HT SERIES HIGH TEMPERATURE PUMPS

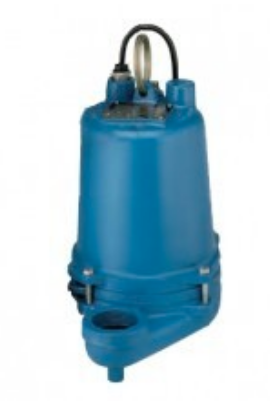

Barnes BP-HT Series High Temperature Pumps

Model Comparison Chart

Model	Discharge (NPT Vertical)	HP	Voltage	Phase	GPM	Max. Head
BP314HT	2"	1/3	115	1	70	30'
BP314HTA	2"	1/3	115	1	70	30'
BP324HT	2"	1/3	230	1	70	30'
BP314HTAU	2"	1/3	115	1	70	30'
BP324HTAU	2"	1/3	230	1	70	30'
BP314HTBR	2"	1/3	115	1	70	30'
BP314HTABR	2"	1/3	115	1	70	30'
BP324HTBR	2"	1/3	230	1	70	30'
BP314HTAUBR	2"	1/3	115	1	70	30'
BP324HTAUBR	2"	1/3	230	1	70	30'

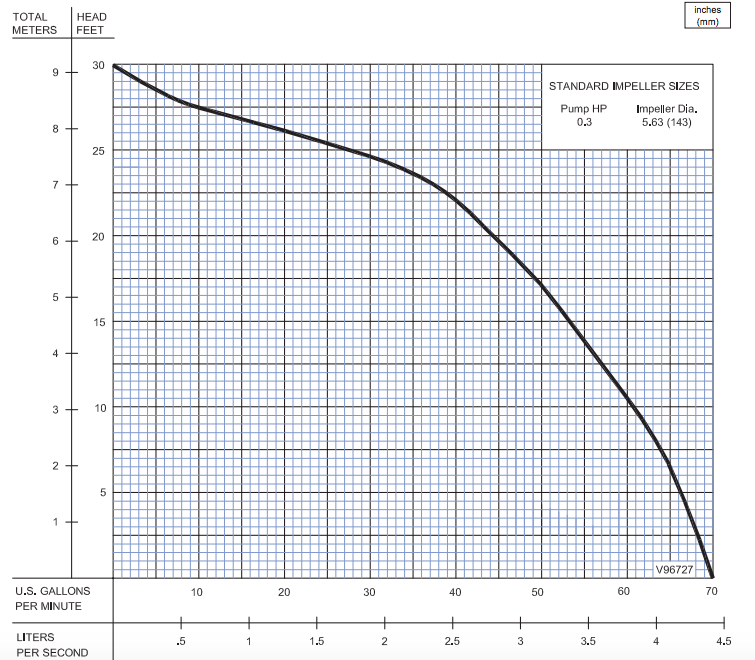

PERFORMANCE CURVE

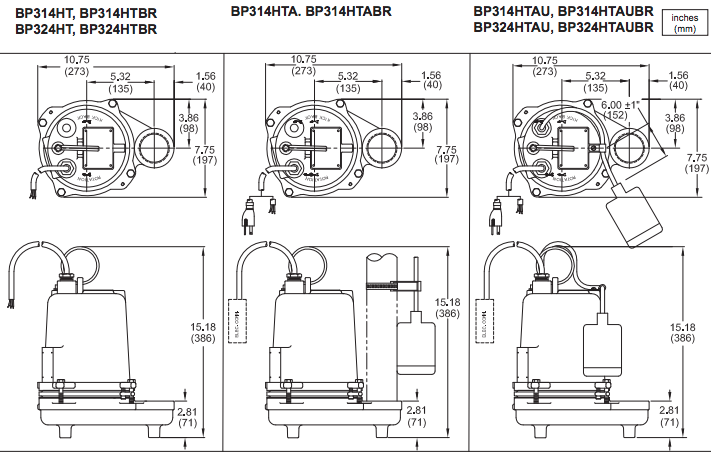

DIMENSIONS

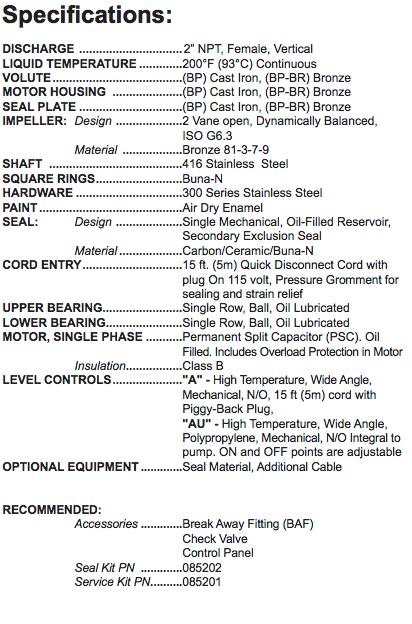

SPECIFICATIONS

Barnes BP-HT Series High Temperature Pump Specifications

INSTALLATION MANUAL

Barnes BP-HT Series High Temperature Pump Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
