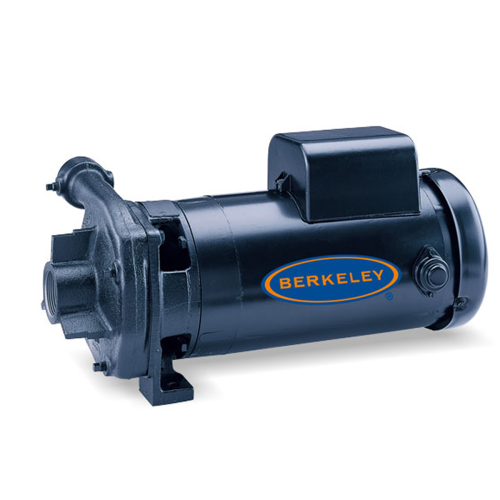

Picture is illustrative and may not reflect the actual product

Brand: Berkeley

SKU: B53602S

Berkeley B53602S, Series C Straight Centrifugal Pump, 70 GPM, 1PH, 230V, 3 HP, 1-1/2" Suction, 1-1/4" Discharge

Write a Review
Berkeley
MAP
List Price: $3,184.00
Best Price Guarantee
"See final price in cart"
Available For Order! (Usually Ships 3-5 Days)
Call Sales Counter !
Free Shipping
The Berkeley B53602S is a straight centrifugal pump, Type C series, manufactured with materials best suited for
water pump applications. The Type C pump is a compact, horizontal, single stage, centrifugal pump close-coupled to an electric motor. The removal of readily accessible bolts (back pull-out construction), permits the removal of the pumping element, exposing the impeller and seal for inspection, without disturbing the piping.

Features
  • 3 HP
  • Motor Voltage: 230
  • NPT Tapped Openings:  Suction 1-1/2 in, Discharge 1-1/4 in.
  • Carefully manufactured with materials best suited for water pump applications to ensure long life and dependability
  • Sturdy cast iron bracket houses seal and maintains positive alignment between motor and volute case
  • Volute case with NPT tapped openings for suction and discharge. Standard discharge position is horizontal. Volute may be rotated for vertical-up discharge
  • Enclosed multi-vane silicon bronze impeller is balanced to eliminate vibration and provide smooth, quiet operation. Impeller is threaded on motor shaft for positive alignment
  • Self-adjusting, water-cooled, mechanical shaft seal prevents leakage and eliminates need for drain piping. Run-in and periodic adjustment is not required
  • Stainless steel motor shaft is threaded for direct mounting of impeller. Shaft extension to impeller is short to increase shaft rigidity and to extend bearing life
  • Heavy-duty and flange-mounted motor designed for continuous 3,600 RPM operation. Two ball bearings are permanently lubricated, eliminating the need for re-lubrication service. Open, drip-proof enclosures are standard.

Applications

  • General farm or home irrigation
  • Air conditioning
  • Refrigeration

This item has a warranty of 12 months from date of original installation, or 18 months from date of manufacture.

Description
The Berkeley B53602S is a straight centrifugal pump, Type C series, manufactured with materials best suited for
water pump applications. The Type C pump is a compact, horizontal, single stage, centrifugal pump close-coupled to an electric motor. The removal of readily accessible bolts (back pull-out construction), permits the removal of the pumping element, exposing the impeller and seal for inspection, without disturbing the piping.

Features
  • 3 HP
  • Motor Voltage: 230
  • NPT Tapped Openings:  Suction 1-1/2 in, Discharge 1-1/4 in.
  • Carefully manufactured with materials best suited for water pump applications to ensure long life and dependability
  • Sturdy cast iron bracket houses seal and maintains positive alignment between motor and volute case
  • Volute case with NPT tapped openings for suction and discharge. Standard discharge position is horizontal. Volute may be rotated for vertical-up discharge
  • Enclosed multi-vane silicon bronze impeller is balanced to eliminate vibration and provide smooth, quiet operation. Impeller is threaded on motor shaft for positive alignment
  • Self-adjusting, water-cooled, mechanical shaft seal prevents leakage and eliminates need for drain piping. Run-in and periodic adjustment is not required
  • Stainless steel motor shaft is threaded for direct mounting of impeller. Shaft extension to impeller is short to increase shaft rigidity and to extend bearing life
  • Heavy-duty and flange-mounted motor designed for continuous 3,600 RPM operation. Two ball bearings are permanently lubricated, eliminating the need for re-lubrication service. Open, drip-proof enclosures are standard.

Applications

  • General farm or home irrigation
  • Air conditioning
  • Refrigeration

This item has a warranty of 12 months from date of original installation, or 18 months from date of manufacture.

Specifications

Please see the manuals for specifications on this item
