Brand: Baldor
SKU: AEM4307-4

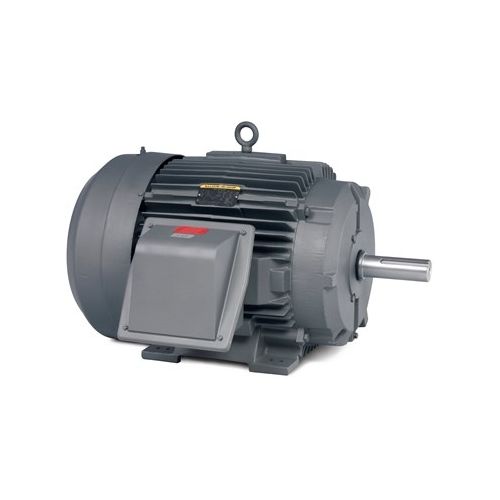

Baldor AEM4307-4, Automotive Duty Motor, 40 HP, 460 Volts, 9.4 Amps, 3 Phase, 60 Hz, 1725 RPM, TEFC Enclosure, 364U Frame, Standard, 1448M Motor Type, Cast Iron Frame
Baldor Automotive Duty Motor
The Baldor Automotive Duty Motor is designed for the automotive industry.
Features
- Cast iron
- Three phase
- 65°C, 1.0sf
- 40°C, 1.15sf
- TEFC
Application
- Pumps
- Compressors
- Fans
- Conveyors
- Machine tool
Note: Picture is illustrative and may not reflect the actual product
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Baldor AEM4307-4, Automotive Duty Motor, 40 HP, 460 Volts, 9.4 Amps, 3 Phase, 60 Hz, 1725 RPM, TEFC Enclosure, 364U Frame, Standard, 1448M Motor Type, Cast Iron Frame | 1 | $14,816.74/each |
Description
Baldor Automotive Duty Motor
The Baldor Automotive Duty Motor is designed for the automotive industry.
Features
- Cast iron
- Three phase
- 65°C, 1.0sf
- 40°C, 1.15sf
- TEFC
Application
- Pumps
- Compressors
- Fans
- Conveyors
- Machine tool
Note: Picture is illustrative and may not reflect the actual product
Specifications
| Brand | Baldor |
| Mfg. Number | AEM4307-4 |
| Product Type | Automotive Duty Motor |
| Horsepower | 40 HP |
| Voltage | 460 Volts |
| Phase | 3 |
| Frequency | 60 Hz |
| Synchronous Speed | 1800 RPM |
| Speed | 1780 RPM |
| Speed Code | Single Speed |
| High Voltage Full Load Amps | 9.4 Amps |
| Enclosure | TEFC |
| Frame Size | 364U |
| Motor Type | 1448M |
| Motor Standards | NEMA |
| Number of Poles | 4 |
| Pulley Face Code | Standard |
| Frame Material | Cast Iron |
| Motor Lead Quantity/Wire Size | 3 @ 6 AWG |
| Overall Length | 33.94 in |
| Service Factor | 1 |
| Efficiency @ 100% Load | 94.50% |
| Duty Rating | CONT |
| Inverter Code | Not inverter |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Bearing Grease Type | POLYREX EM (-20F +300F) |
| Current | 45.0 A |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Heater Indicator | No heater |
| KVA Code | G |
| Shaft Diameter | 2.124 in |
| Insulation Class | F |
| Pulley End Bearing Type | Ball |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Starting Method | Direct on line |
| Vibration Sensor Indicator | No Vibration Sensor |
| Thermal Device - Bearing | No |
| Thermal Device - Winding | None |
| Ambient Temperature | 40 °C |
| Agency Approvals | CCSA, US, CSA, EEV |
