Brand: Marathon
SKU: 056B34D5302

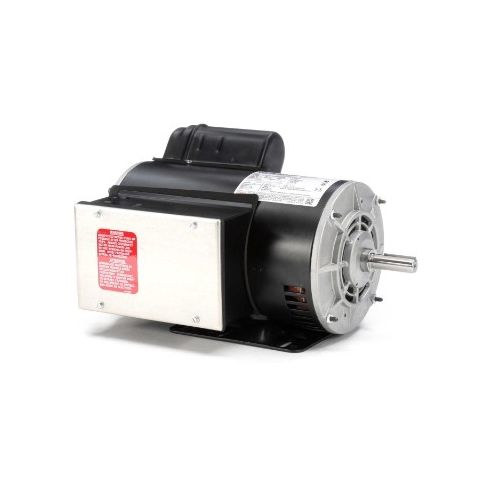

Marathon 056B34D5302, Air Compressor Motor, 5 HP, 230 Volts, 20.0 Amps, 1 Phase, 3450 RPM, 60 Hz,ODP Enclosure, 56H Frame, Rigid Base, Rolled Steel Frame, Catalog No: D017
Marathon Air Compressor Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 056B34D5302, Air Compressor Motor, 5 HP, 230 Volts, 20.0 Amps, 1 Phase, 3450 RPM, 60 Hz,ODP Enclosure, 56H Frame, Rigid Base, Rolled Steel Frame, Catalog No: D017 | 1 | $1,294.02/each |
Description
Marathon Air Compressor Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Specifications
| Brand | Marathon |
| Catalog No | D017 |
| Product Type | Air Compressor Motor |
| Horsepower | 5 HP |
| Voltage | 230 Volts |
| Phase | 1 |
| Output KW | 3.7 kW |
| Frequency | 60 Hz |
| Speed | 3450 RPM |
| Current | 20.0 Amps |
| Enclosure | ODP |
| Frame Size | 56H |
| Motor Orientation | Horizontal |
| Number of Poles | 2 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Overall Length | 13.94 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 84% |
| Duty Rating | Continous |
| Overload Protector | Manual |
| Electrical Type | Capacitor Start Capacitor Run |
| Starting Method | Across The Line |
| Design Code | NO DESIGN CODE |
| KVA Code | H |
| Frame Length | 10.06 in |
| Shaft Diameter | 0.625 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 2.23 in |
| Shaft Rotation | Selective Counterclockwise |
| Shaft Type | NEMA 56 |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
