Brand: Marathon
SKU: 5KCR48UN2653Y

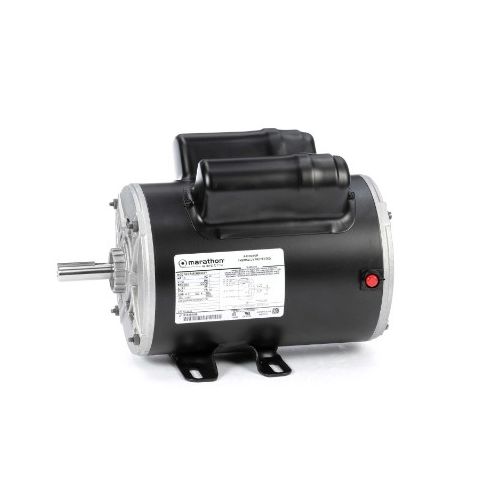

Marathon 5KCR48UN2653Y, Air Compressor Motor, 3 HP, 230 Volts, 14 Amps, 1 Phase, 3450 RPM, 60 Hz,ODP Enclosure, 56 Frame, Rigid Base, Rolled Steel Frame, Catalog No: 9036
Marathon Air Compressor Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 5KCR48UN2653Y, Air Compressor Motor, 3 HP, 230 Volts, 14 Amps, 1 Phase, 3450 RPM, 60 Hz,ODP Enclosure, 56 Frame, Rigid Base, Rolled Steel Frame, Catalog No: 9036 | 1 | $1,217.45/each |
Description
Marathon Air Compressor Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Specifications
| Brand | Marathon |
| Catalog No | 9036 |
| Product Type | Air Compressor Motor |
| Horsepower | 3 HP |
| Voltage | 230 Volts |
| Phase | 1 |
| Output KW | 2.2 kW |
| Frequency | 60 Hz |
| Speed | 3450 RPM |
| Current | 14 Amps |
| Enclosure | ODP |
| Frame Size | 56 |
| Motor Orientation | Any |
| Number of Poles | 2 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Overall Length | 12.64 in |
| Service Factor | 1 |
| Efficiency @ 100% Load | 78.50% |
| Duty Rating | Continous |
| Overload Protector | Manual |
| Electrical Type | Capacitor Start Capacitor Run(CSCR) |
| Starting Method | SM |
| KVA Code | J |
| Frame Length | 8.43 in |
| Shaft Diameter | 0.630 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 1.88 in |
| Shaft Rotation | Clockwise/Counterclockwise |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
