Brand: Leeson
SKU: 107035.00

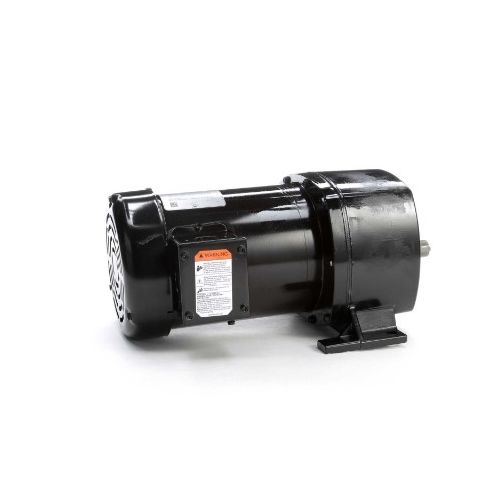

Leeson 107035.00, AC Parallel Shaft Gearmotor, P1100 Series, 1/2 HP, 208-230/460 Volts, 2.0/1.0 Amps, 3 Phase, 91 RPM, 60 Hz, TEFC Enclosure, 48Y Frame, Special, Model no: C4T17FZ51B
Leeson AC Parallel Shaft Gearmotor, P1100 Series
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
- Rugged die cast aluminum gear housing for maximum gear and bearing support
- Precision machined gearing, hardened for maximum load capability
- All gearing designed and rated to AGMA class 9 standards, and to withstand momentary shock overload of 200%
- Oversized output bearings for greater overhung load capacity and long life
- High carbon alloy output shaft provides maximum strength and rigidity
- All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
- Heavy duty industrial oil seals keep lubricant in and dirt out
- Gears and bearings are splash lubricated with permanent, heavy duty gear oil
- Conduit box included as standard
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Leeson 107035.00, AC Parallel Shaft Gearmotor, P1100 Series, 1/2 HP, 208-230/460 Volts, 2.0/1.0 Amps, 3 Phase, 91 RPM, 60 Hz, TEFC Enclosure, 48Y Frame, Special, Model no: C4T17FZ51B | 1 | $1,674.56/each |
Description
Leeson AC Parallel Shaft Gearmotor, P1100 Series
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
- Rugged die cast aluminum gear housing for maximum gear and bearing support
- Precision machined gearing, hardened for maximum load capability
- All gearing designed and rated to AGMA class 9 standards, and to withstand momentary shock overload of 200%
- Oversized output bearings for greater overhung load capacity and long life
- High carbon alloy output shaft provides maximum strength and rigidity
- All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
- Heavy duty industrial oil seals keep lubricant in and dirt out
- Gears and bearings are splash lubricated with permanent, heavy duty gear oil
- Conduit box included as standard
Specifications
| Brand | Leeson |
| Model no | C4T17FZ51B |
| Product Type | AC Parallel Shaft Gearmotor, P1100 Series |
| Horsepower | 1/2 HP |
| Voltage | 208-230/460 Volts |
| Phase | 3 |
| Output KW | 0.37 kW |
| Frequency | 60 Hz |
| Speed | 91 RPM |
| Current | 2.0/1.0 Amps |
| Enclosure | TEFC |
| Frame Size | 48Y |
| Mounting Type | Special |
| Overall Length | 13.42 in |
| Service Factor | 1.15 |
| Duty Rating | Continuous |
| Overload Protector | No |
| KVA Code | K |
| Frame Length | 5.50 in |
| Shaft Diameter | 0.750 in |
| Insulation Class | F |
| Shaft Extension Location | 1.5 in |
| Shaft Rotation | Reversible |
| Shaft Type | Parallel |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
