Zoeller Two Stage Centrifugal Pumps Buyers Guide & Review

Zoeller’s 306-309 Series of two stage, end-suction, centrifugal pumps are ideal for booster service, water circulation, cooling systems, laundry equipment, and liquid transfers. The single phase, continuous duty, capacitor start, double ball bearing motor comes in 3/4, 1, 1-1/2, or 2 horsepower versions. The series features a multi-stage design for high head, cast iron casing, 1-1/2” suction, and 1-1/4” discharge. Pumps are capable of reaching heads ranging from 113 to 154 ft. TDH and capacities from 40 to 55 GPM depending on the chosen model.

Features

56 frame, NEMA J, capacitor start, double ball bearing motor for continuous operation
Rugged cast iron pump casing
Multi-stage for high head
Normal wearing parts are easily removed for service and replacement without disturbing the suction or discharge piping
Applications include booster service, water circulation, cooling systems, laundry equipment, and liquid transfers
Do not exceed the maximum case pressure and maximum liquid temperature rating of the pump
Suction and Discharge Tappings 1-1/2” x 1-1/4”

ZOELLER TWO STAGE CENTRIFUGAL PUMPS

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Phase	GPM	Max. Head
NE306	1-1/4"	3/4	115/230	1	41	113'
NE307	1-1/4"	1	115/230	1	45	138'
NE308	1-1/4"	1-1/2	115/230	1	54	140'
NE309	1-1/4"	2	115/230	1	55	155'

PERFORMANCE CURVES

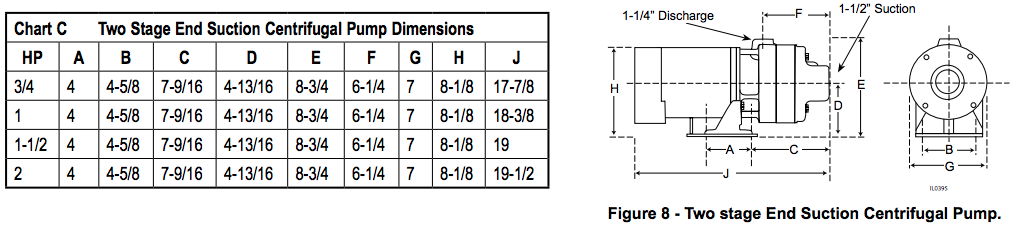

DIMENSIONS

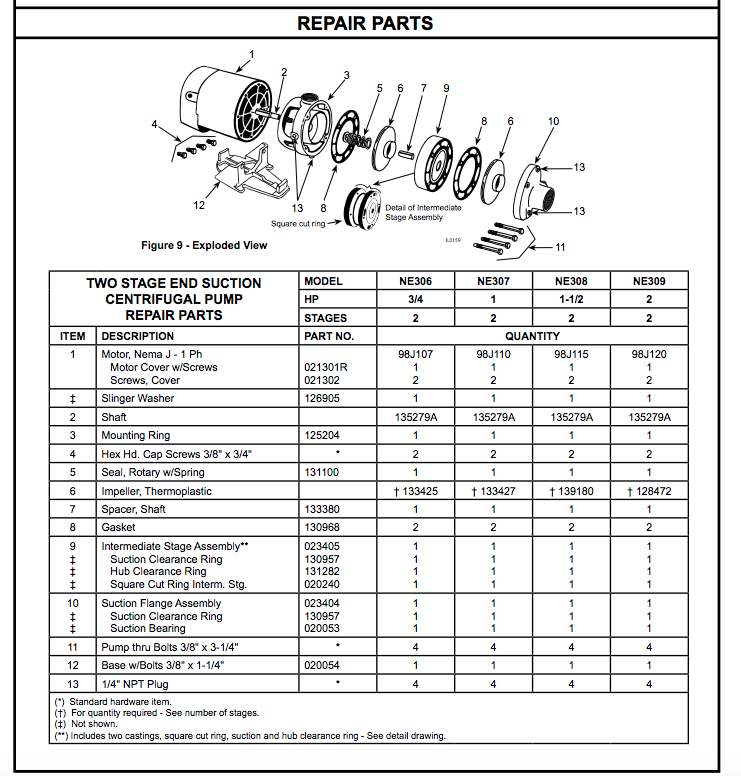

REPAIR PARTS

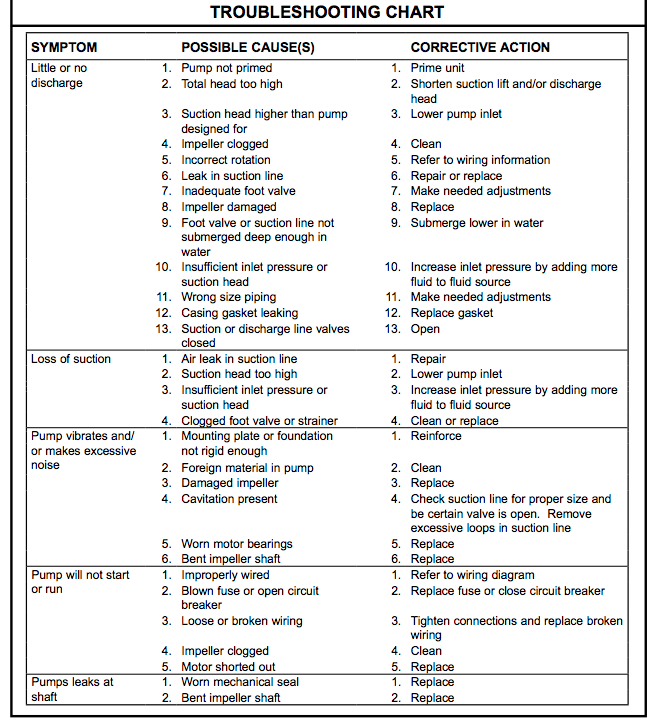

TROUBLESHOOTING

TYPICAL INSTALLATION

CATALOGUE

Zoeller Two Stage Centrifugal Pumps Catalogue

OWNERS MANUAL

Zoeller Two Stage Centrifugal Pumps Owner's Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
