Zoeller Potable Water Turbine Pumps Buyers Guide & Review

Zoeller Pumps Buyer Guides

April 22, 2019

Zoeller Potable Water Turbine Pumps Buyers Guide & Review

Zoeller's submersible, potable water turbine pumps are rated by the number of gallons per minute to the well head from various water level depths. Models rated at 7 GPM (26.5 LPM) are for small homes, cottages, and light water usage demands, whereas the 11 GPM models are for the average residential size home and family. 1/2 thru 1 HP F&W motors used on Zoeller submersible pumps are designed to meet NEMA standards. 1/2 HP models are available in either 115 or 230 volt. The 3/4 and 1 HP models are available in 230 volt only. All models are available with either a 2 or 3 wire connection plus ground wire. 3 wire models require a control box.

Features

Stainless steel pump shell, motor shell, and drive shaft
Quiet and economical operation
No priming required
Submersible pumps rated by the number of gallons per minute to the well head from various water level depths. Models rated at 5 & 7 GPM (22.7 and 31.8 LPM) are for small homes, cottages and light water usage demands, whereas the 11 and 19 GPM (41.6 and 71.9 LPM) models are for the average residential size home and family.
Nationally known Franklin 1/2 thru 1 HP motors used on Zoeller submersible pumps are designed to meet NEMA standards. All models are available with either 2 or 3 wire connection plus ground wire.

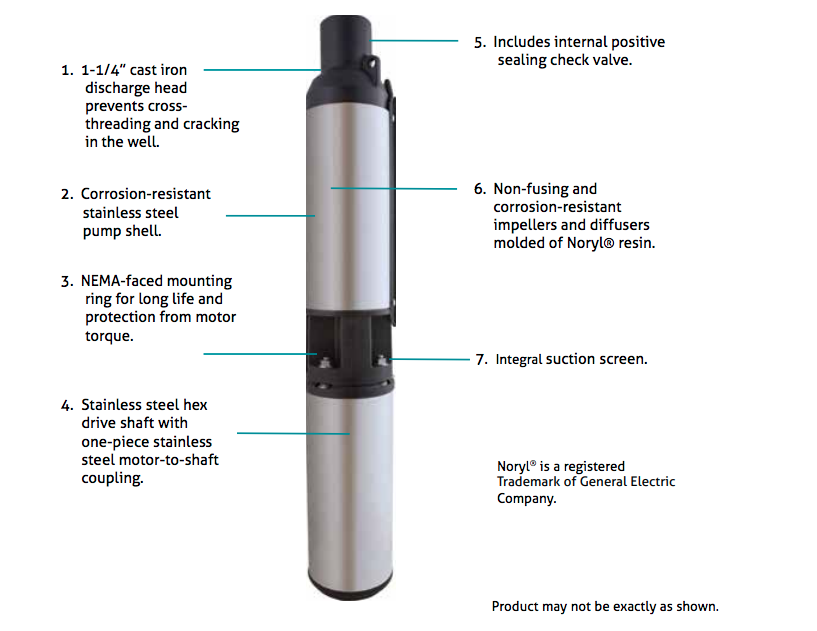

1-1/4” cast iron discharge head prevents cross threading and cracking in the well
Corrosion-resistant 304 stainless steel pump shell
NEMA-faced mounting ring for long life and protection from motor torque
Stainless steel hex drive shaft with one-piece stainless steel motor to shaft coupling
Franklin Electric^® NEMA standard 2 or 3 wire water-cooled motor with ground wire (not shown)
Includes internal positive sealing check valve
Non-fusing and corrosion-resistant impellers, diffusers, and inlet screen molded of Noryl^® resin
Noryl^® is a registered trademark of General Electric company
Control box required for 3-wire models. Quick-disconnect control box features replaceable snap out cover and keeps all components above ground for easy access and repair. Control box not required for 2-wire models.
7, 11 and 19 GPM (31.8, 50 and 86.4 LPM) models available
For use in potable clean water systems only

ZOELLER POTABLE WATER TURBINE PUMPS

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Phase	GPM	Max. Head
450-0009	1-1/4"	1/2	230	1	11	275'
450-0008	1-1/4"	1/2	115	1	11	275'
450-0010	1-1/4"	1/2	115	1	11	275'
450-0011	1-1/4"	1/2	230	1	11	275'
451-0006	1-1/4"	3/4	230	1	11	500'
450-0005	1-1/4"	1/2	230	1	7	310'
451-0007	1-1/4"	3/4	230	1	11	400'
450-0006	1-1/4"	1/2	115	1	7	310
450-0007	1-1/4"	1/2	230	1	7	310'
452-0005	1-1/4"	1	230	1	11	500'
450-0012	1-1/4"	1/2	115	1	5	398'
450-0013	1-1/4"	1/2	230	1	5	398'
452-0006	1-1/4"	1	230	1	11	500'
452-0007	1-1/4"	1	230	1	19	280'
451-0005	1-1/4"	3/4	230	1	7	435'
452-0008	1-1/4"	1	230	1	19	280'
451-0008	1-1/4"	3/4	230	1	5	550'
452-0009	1-1/4"	1	230	1	5	698'

PERFORMANCE CURVES

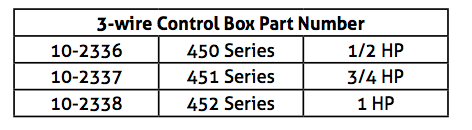

CONTROL BOX PART NUMBERS

DIAGRAM

TROUBLESHOOTING

TYPICAL INSTALLATIONS

BROCHURE

Zoeller Potable Water Turbine Pumps Brochure

OWNERS MANUAL

Zoeller Potable Water Turbine Pumps Owner's Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
