Zoeller Evaporative Cooling Pumps Buyers Guide & Review

Zoeller Pumps Buyer Guides

April 05, 2019

Zoeller Evaporative Cooling Pumps Buyers Guide & Review

The Zoeller 370 series are continuous duty submersible pumps for dewatering or effluent evaporative cooling pumps for poultry applications. Zoeller effluent pumps are well-known for durability, corrosion resistance, and high performance. Like all Zoeller pumps, these pumps are pressure-tested, submerged, and run to ensure quality performance for years.

Features

Cast iron motor and pump housing with corrosion-resistant, powder coated epoxy finish
Motor - oil-filled, hermetically sealed, automatic reset thermal overload protected
Permanently lubricated upper and lower bearings
Stainless steel screws and handle
No sheet metal parts to rust or corrode
No screens to clog
Glass-filled, engineered plastic non-clogging vortex impeller with metal insert
Watertight neoprene square ring between motor and pump housing
Silicon Carbide/Carbon shaft seal
Entire unit pressure tested after assembly
Maximum temperature for effluent or dewatering—130°F (54°C)
1½" NPT Discharge
Completely submersible
Watertight and dust tight

ZOELLER EVAPORATIVE COOLING PUMPS

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Phase	GPM	Max. Head
N371	1-1/2"	0.3	115	1	43	19'
E371	1-1/2"	0.3	230	1	43	19'
N372	1-1/2"	0.3	115	1	50	30'
E372	1-1/2"	0.3	230	1	50	30'
N373	1-1/2"	0.4	115	1	69	38'
E373	1-1/2"	0.4	230	1	69	38'

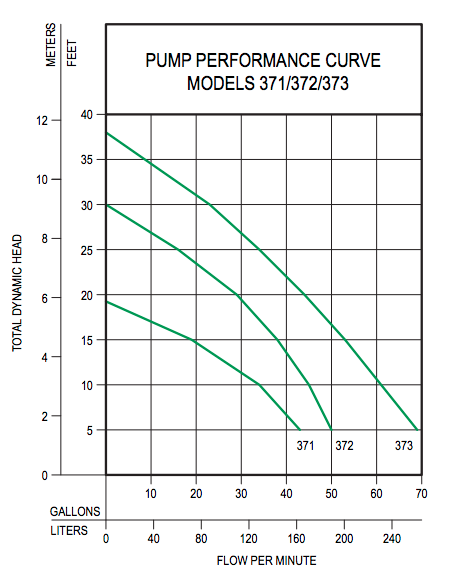

PERFORMANCE CURVES

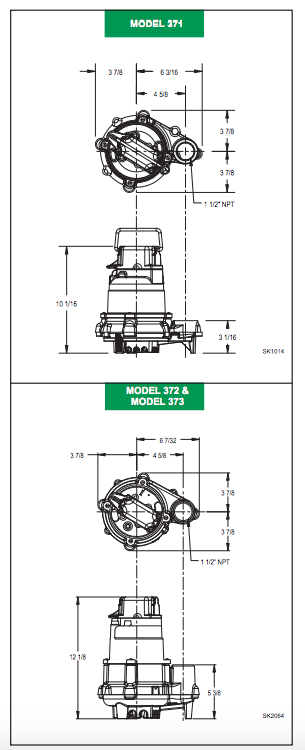

DIMENSIONS

REPLACEMENT PARTS

SERVICE CHECKLIST

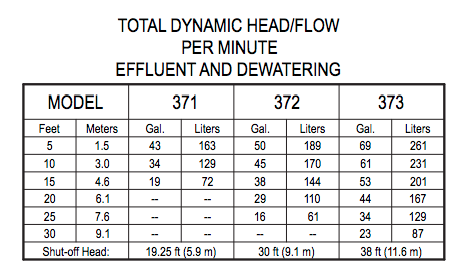

TDH PER MINUTE

BROCHURE

Zoeller Evaporative Cooling Pumps Brochure

INSTALLATION INSTRUCTIONS

Zoeller Evaporative Cooling Pumps Installation Instructions

REPAIR PARTS

Zoeller Evaporative Cooling Pumps Repair Parts

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
