Zoeller 910 Series Sewage Systems Buyers Guide & Review
This series is ideal for homes, farms, trailer courts, motels, restaurants and institutions where drain facilities are below existing sewer lines.
Indoor sewage applications only, 910-0030 or 910-0031 includes:
- Two automatic pumps
- One 10-0804 Smart Pak Residential Alternator with alarm
- One [P/N 31-1105] 30” x 36” (76 x 91 cm) polyfoam basin with 2” vent/discharge
- Two 30-0101 Tri-Check® Valves
Basins
Polyethylene structural foam, polyethylene or fiberglass
Check valves
2” cast iron and 2” PVC full flow design
Notes
Zoeller recommends a High Water Alarm for added protection. See FM0732 for available models.
Maximum temperature rated at 130 °F (54 °C).
The packages listed are available in 2” and 3” vertical discharge and vent. Consult factory for other combinations and prices.
Polyethylene basins recommended for indoor installations only.
| ZOELLER 910 SERIES SEWAGE SYSTEMS |
Model Comparison Chart
| Model | Discharge (NPT) | HP | Voltage | Pump Model | Basin Dimensions | Vent Size |
| 910-0023 | 2" | 4/10 | 115 | BN264 | 18"x30" | 2" |
| 910-0024 | 2" | 1/2 | 115 | BN267 | 18"x30" | 2" |
| 910-0016 | 2" | 1/2 | 115 | M267 | 18"x30" | 2" |
| 910-0018 | 2" | 1/2 | 115 | M267 | 18"x30" | 2" |
| 910-0026 | 2" | 1/2 | 115 | BN267 | 18"x30" | 2" |
| 910-0007 | 2" | 1/2 | 115 | M267 | 18"x30" | 3" |
| 910-0005 | 2" | 1/2 | 115 | M267 | 18"x30" | 2" |
| 910-0009 | 2" | 1/2 | 115 | M267 | 18"x30" | 2" |
| 910-0006 | 2" | 1/2 | 230 | D267 | 18"x30" | 2" |
| 910-0008 | 2" | 1/2 | 230 | D267 | 18"x30" | 3" |
| 910-0030 | 2" | 4/10 | 115 | M264 | 30"x36" | 2" |
| 910-0031 | 2" | 1/2 | 115 | M267 | 30"x36" | 2" |
| PERFORMANCE CURVES |

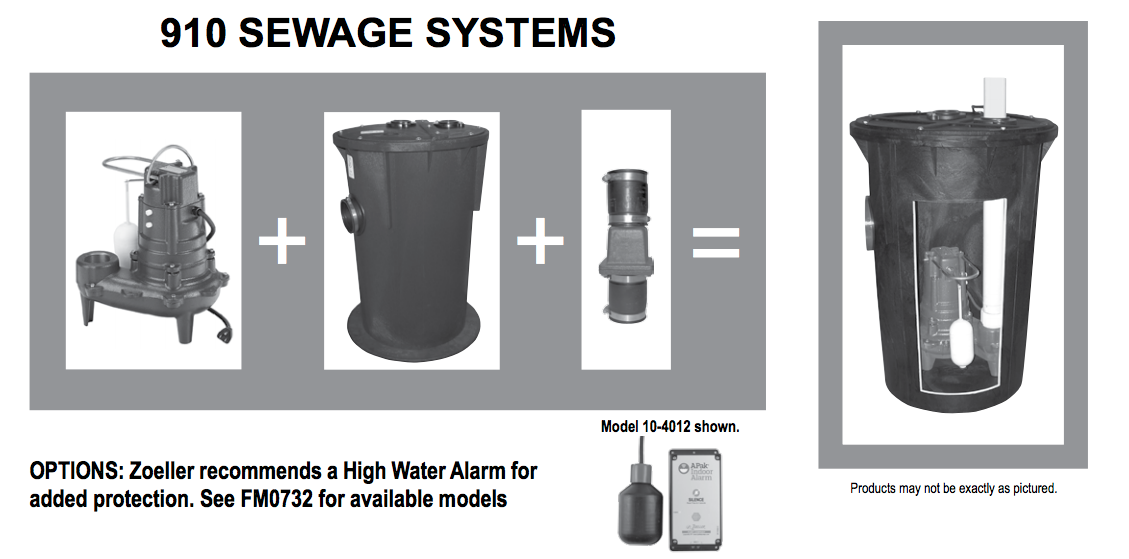

| DIAGRAM |
| TDH FLOW PER MINUTE |
| BROCHURE |
| Zoeller 910 Series Sewage Systems Brochure |
