Taco 0010 Series Circulator Pumps Buyers Guide & Review
The Taco 0010 series 3-Speed service circulator pump is specially designed to make short work of service calls. Since it replaces the most commonly used circulators you’ll appreciate it the next time you’re out on a job at 2 AM. The handy new universal 4-bolt flange simplifies change-out of any pump, regardless of style, type, or age. Keep one in the truck – just in case!
Features:
- 3-speed switch
- Fine tune to system requirements
- Highest performance & starting torque in class
- Heavy duty construction for longer life
- 4-bolt universal flange (0010 only)
- Removable high-flow Integral Flow Check (IFC)
- Replaceable cartridge design
- Quiet, efficient operation
- Self lubricating, no mechanical seal
- Wide range of applications
- Cast iron, flanged universal connection
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.
| TACO 0010 SERIES CIRCULATOR PUMPS |

Taco 0010 Series Circulator Pumps
Model Comparison Chart
| Model |
Connection Sizes |
HP |
Voltage |
Material of Construction |
GPM |
Max. Head |
| 0010-F3-1IFC |
3/4", 1", 1-1/4", 1-1/2" |
1/8 |
115 |
Cast Iron |
30 |
9' |
| 0010-MSF2-IFC |
3/4", 1", 1-1/4", 1-1/2" |
1/20 |
115 |
Cast Iron |
30 |
9' |
| 0010-ZF3-2 |
3/4", 1", 1-1/4", 1-1/2" |
1/8 |
115 |
Cast Iron |
30 |
9' |
| 0010-ZF3-1IFC |
3/4", 1", 1-1/4", 1-1/2" |
1/8 |
115 |
Cast Iron |
30 |
9' |
| 0010-VDTF3 |
3/4", 1", 1-1/4", 1-1/2" |
1/8 |
115 |
Cast Iron |
30 |
9' |
| 0010-SF3 |
3/4", 1", 1-1/4", 1-1/2" |
1/8 |
115 |
Stainless Steel |
30 |
9' |
| 0010-SF3-IFC |
3/4", 1", 1-1/4", 1-1/2" |
1/8 |
115 |
Stainless Steel |
30 |
9' |
| 0010-ZSF3 |
3/4", 1", 1-1/4", 1-1/2" |
1/8 |
115 |
Stainless Steel |
30 |
9' |

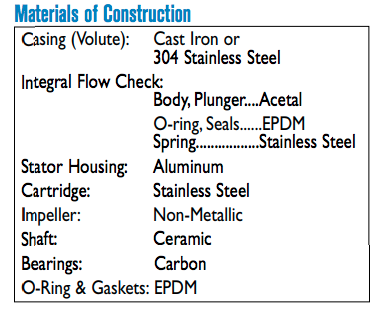

| MATERIALS OF CONSTRUCTION |


Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
