Sta-Rite DPC Series Lawn and Irrigation Pumps Buyers Guide & Review

Sta-Rite Pumps Buyer Guides

May 21, 2019

Sta-Rite DPC Series Lawn and Irrigation Pumps Buyers Guide & Review

The Sta-Rite DPC series lawn/irrigation centrifugal pumps are designed for use in effluent/wastewater removal, sump drainage, dewatering, circulation and fountain applications. Each pump is self-priming and can handle solids up to 0.225" in diameter.

Features:

Cast iron volute
Polycarbonate impeller
Thermoset diffuser
One-piece threaded stainless steel shaft
Steel 12 gauge base
Maximum liquid temperature limit of 130°F (55°C)
Motor is 1/2 HP, 3450 RPM, 115-volt split phase, 60 Hz. Built-in thermal overload protection with automatic reset
Mechanical seal is made of Buna-N elastomers, carbon and ceramic sealing faces, stainless steel metal part
Shielded, permanently lubricated, heavy-duty bearings, extensively tested to ensure extended life and smooth, quiet operation
Comes complete with built-in overload protection with automatic reset and a built-in check valve
10' 115 volt power cord

STA-RITE DPC SERIES LAWN AND IRRIGATION PUMPS

Model Comparison Chart

Model	Suction	Discharge	HP	Voltage	Phase	Max. GPM	Max. Head	Impeller	Cord
DPC	1-1/4" NPT	1-1/4" NPT	1/2	115	1	43	62'	Polycarbonate	10'

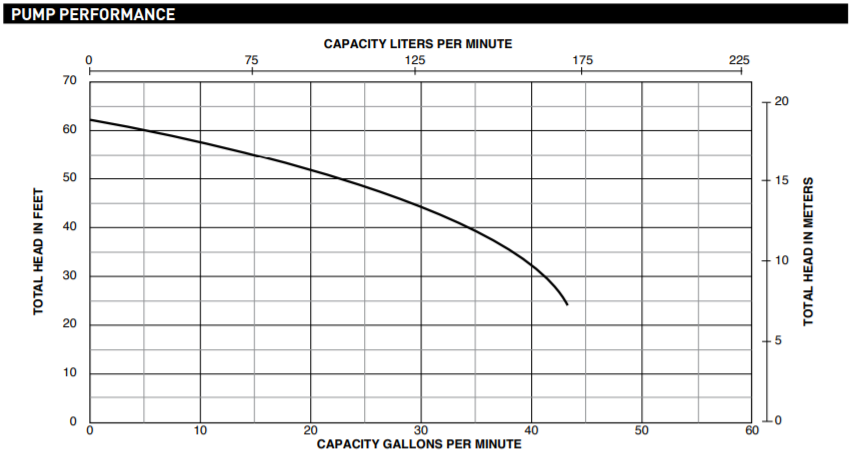

PUMP PERFORMANCE

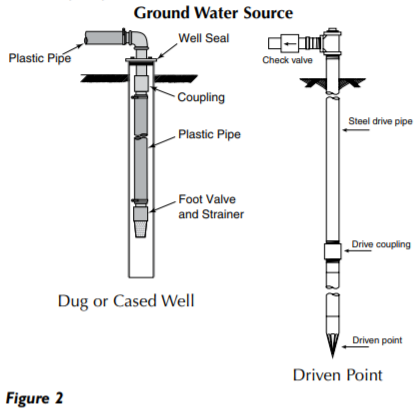

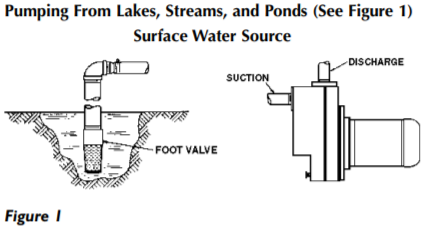

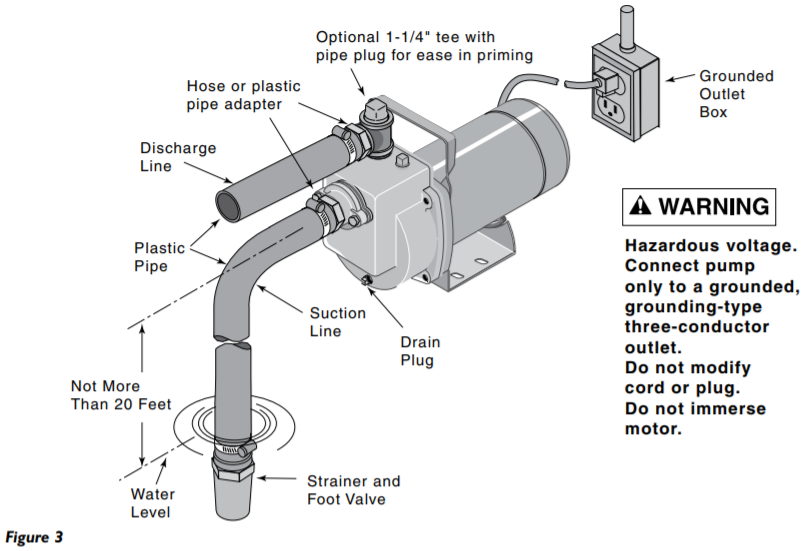

RECOMMENDED INSTALLATIONS

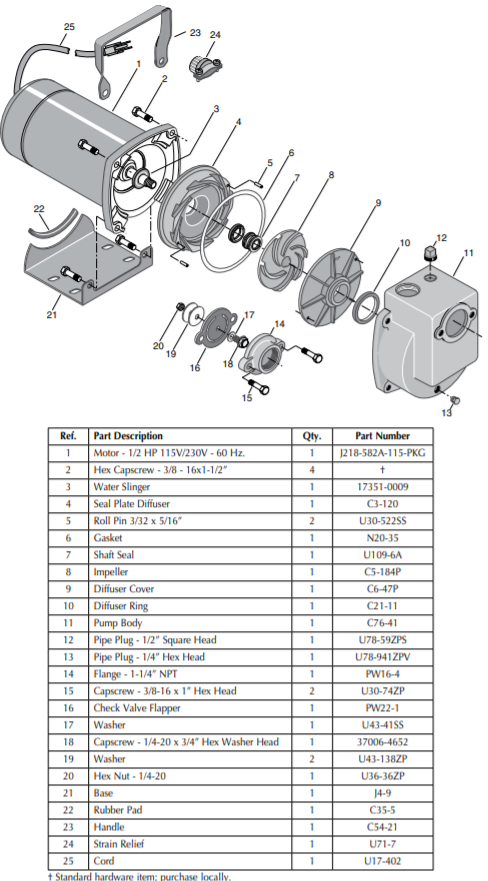

REPAIR PARTS

MANUAL

Sta-Rite DPC Series Owner's Manual

SPECIFICATIONS

Sta-Rite DPC Series Specifications

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
