Myers SK50 Series Sewage Pumps Buyers Guide & Review

Myers Pumps Buyer Guides

May 06, 2019

Myers SK50 Series Sewage Pumps Buyers Guide & Review

Myers SK50 submersible sewage ejector pumps are specifically designed to meet the demands of commercial and residential sewage or sump applications. The SK50 can handle capacities up to 120 gallons per minute and heads to 24 feet.

Features

Carbon/ceramic mechanical seal
Oil-filled motor with automatic reset thermal overload for maximum protection (one phase models)
Upper and lower single-row ball-bearing construction
Non-clogging, two-vane, semi-open cast iron impeller
Includes wide-angle "piggyback" float switch
Split phase motor with thermal overload protection
Cast iron motor housing and pump casing construction
2" solids handling

Applications

Commercial sewage
Residential sewage
High-capacity sump
Septic tank effluent

MYERS SK50 SERIES SEWAGE PUMPS

myers sk50 series centrifugal sewage pumps

Myers SK50 Series Sewage Pumps

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Phase	GPM	Max. Head
MSK50M1 10	2"	1/2	115	1	120	24'
MSK50A1 10	2"	1/2	115	1	120	24'
MSK50M1 20	2"	1/2	115	1	120	24'
MSK50M2 20	2"	1/2	230	1	120	24'
MSK50A1 20	2"	1/2	115	1	120	24'

PERFORMANCE CURVE

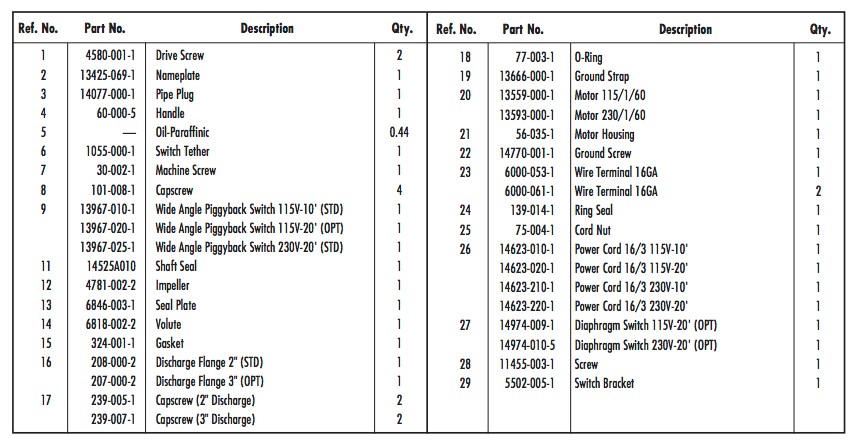

PARTS LIST

DIMENSIONS

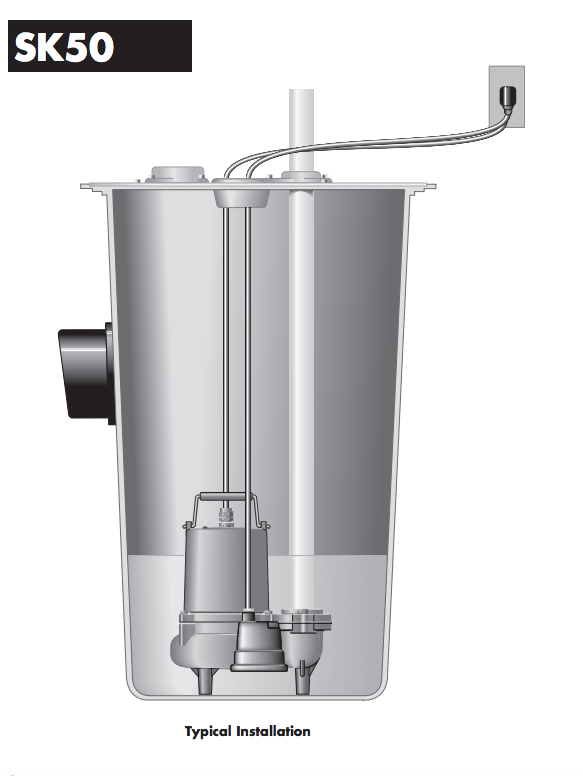

INSTALLATION DIAGRAM

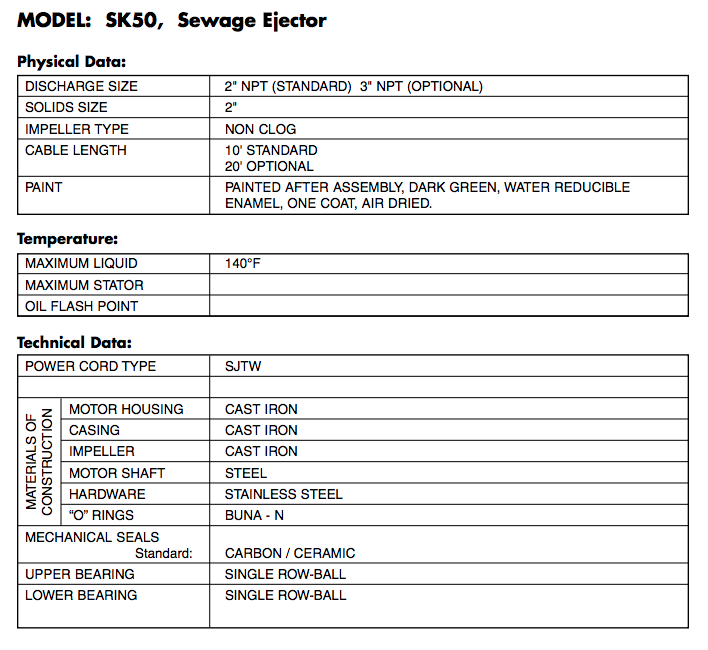

SPECIFICATIONS

BROCHURE

Myers SK50 Series Sewage Pump Brochure

INSTALLATION MANUAL

Myers SK50 Series Sewage Pump Installation Manual

CURVES

Myers SK50 Series Sewage Pump Curves

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
