Myers SK100 Series Sewage Pumps Buyers Guide & Review

Myers SK100 Submersible Sewage Pumps are specifically designed to meet the demands of residential and commercial wastewater and sewage applications. The SK100 can handle capacities up to 160 gallons per minute and heads to 37 feet.

Features

Carbon/ceramic mechanical seal
Oil-filled motor with automatic reset thermal overload for maximum protection (one phase models)
Upper and lower single-row ball-bearing construction
Non-clogging, two-vane, semi-open cast iron impeller
Split phase motor with thermal overload protection
Cast iron motor housing and pump casing construction
2" solids handling

Applications

Commercial sewage
Residential sewage
High-capacity sump
Septic tank effluent

MYERS SK100 SERIES SEWAGE PUMPS

Myers SK100 Series Sewage Pumps

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Phase	GPM	Max. Head
MSK100M2 20	2"	1	230	1	160	37'
MSK100M3 20	2"	1	230	3	160	37'
MSK100M4 20	2"	1	460	3	160	37'
MSK100M6 20	2"	1	200	3	160	37'
MSK100M7 20	2"	1	200	1	160	37'

PERFORMANCE CURVE

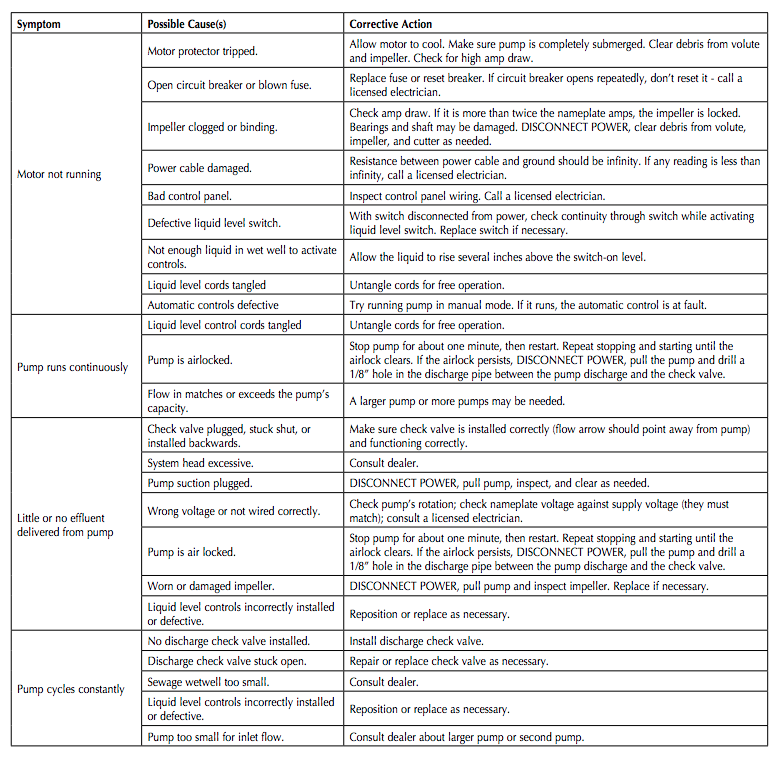

TROUBLESHOOTING

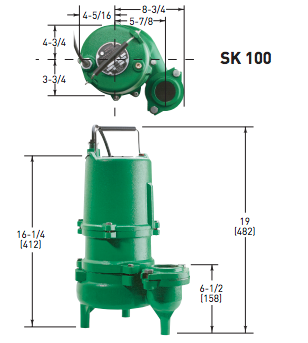

DIMENSIONS

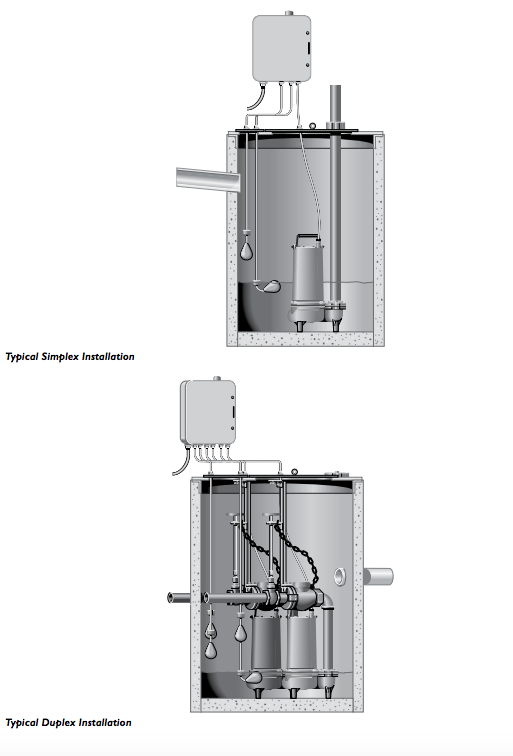

INSTALLATION DIAGRAM

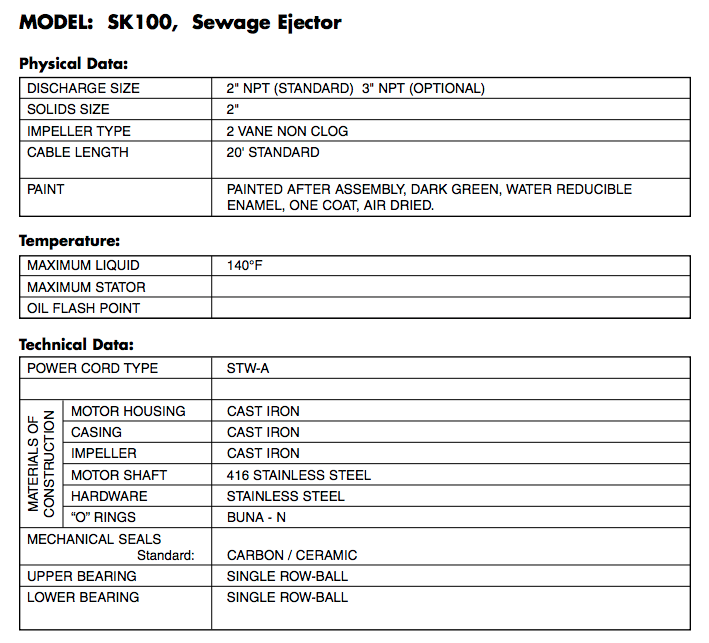

SPECIFICATIONS

BROCHURE

Myers SK100 Series Sewage Pump Brochure

INSTALLATION MANUAL

Myers SK100 Series Sewage Pump Installation Manual

CURVES

Myers SK100 Series Sewage Pump Curves

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
