Myers QP Series Centrifugal Pumps Buyers Guide & Review
Myers QP (Quick Prime) series of self-priming centrifugal pumps are designed for demanding jobs where a lot of water is required over a long period of time. It’s built for one purpose only: continuous high performance service. This series is ideal for applications such as lawn and garden sprinkling, car washing, or other big cleaning and maintenance jobs. The simple design provides powerful, efficient operation and easy servicing. Not for use with corrosive chemicals or flammable liquids.
Features
- High tensile gray cast iron pump case and motor bracket
- Square rubber sealing rings
- Proven thermoset diffuser
- Corrosion resistant engineered composite impeller for long life
- Proper impeller alignment for smooth, quiet running
- Carbon/ceramic shaft seal
- Ruggedly built to meet the demands for long, hard continuous service without over-working or overloading the motor
- Manufactured to precise performance specifications
- Unique diffuser design for quick automatic prime. No additional water needed for repriming after installation
- Cases and gaskets on all sizes provides simplified parts selection
Applications
Water systems:
- Lawn and gardening sprinkling
- Car washing
- Big cleaning and maintenance jobs
| MYERS QP SERIES CENTRIFUGAL PUMPS |
Model Comparison Chart
| Model | Discharge (NPT) | HP | Voltage | Phase | GPM | Max. Head |
| QP7 | 1-1/2" | 3/4 | 115/230 | 1 | 55 | 105' |
| QP10-01 | 1-1/2" | 1 | 115/230 | 1 | 65 | 108' |
| QP15-01 | 1-1/2" | 1-1/2 | 115/230 | 1 | 85 | 111' |
| QP10B-01 | 1-1/2" | 1 | 115/230 | 1 | 65 | 108' |
| QP15B-01 | 1-1/2" | 1-1/2 | 115/230 | 1 | 85 | 111' |
| QP20 | 1-1/2" | 2 | 230 | 1 | 95 | 116' |
| QP7-3 | 1-1/2" | 3/4 | 200/230/460 | 3 | 55 | 105' |
| QP20-3 | 1-1/2" | 2 | 200/230/460 | 3 | 95 | 116' |
| QP30-3 | 1-1/2" | 3 | 200/230/460 | 3 | 104 | 121' |
| QP30 | 1-1/2" | 3 | 230 | 1 | 104 | 121' |

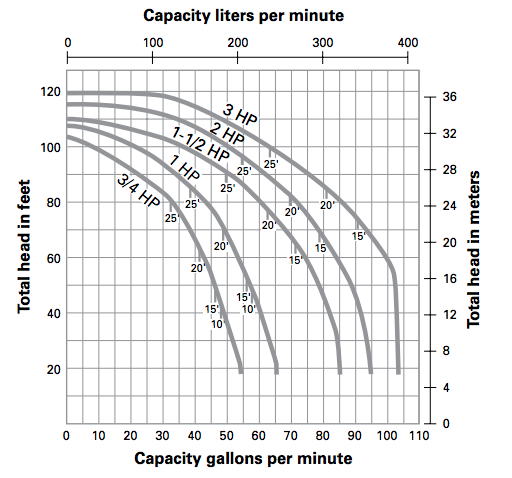

| PERFORMANCE CURVES |
| DIMENSIONS |

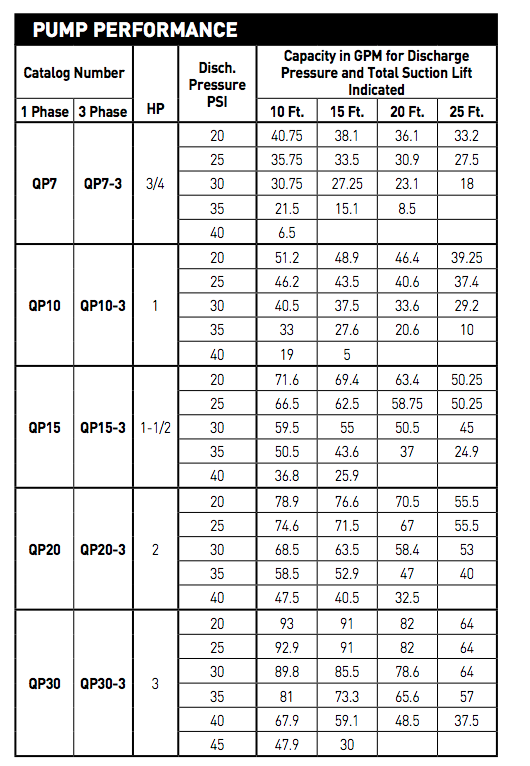

| PUMP PERFORMANCE |

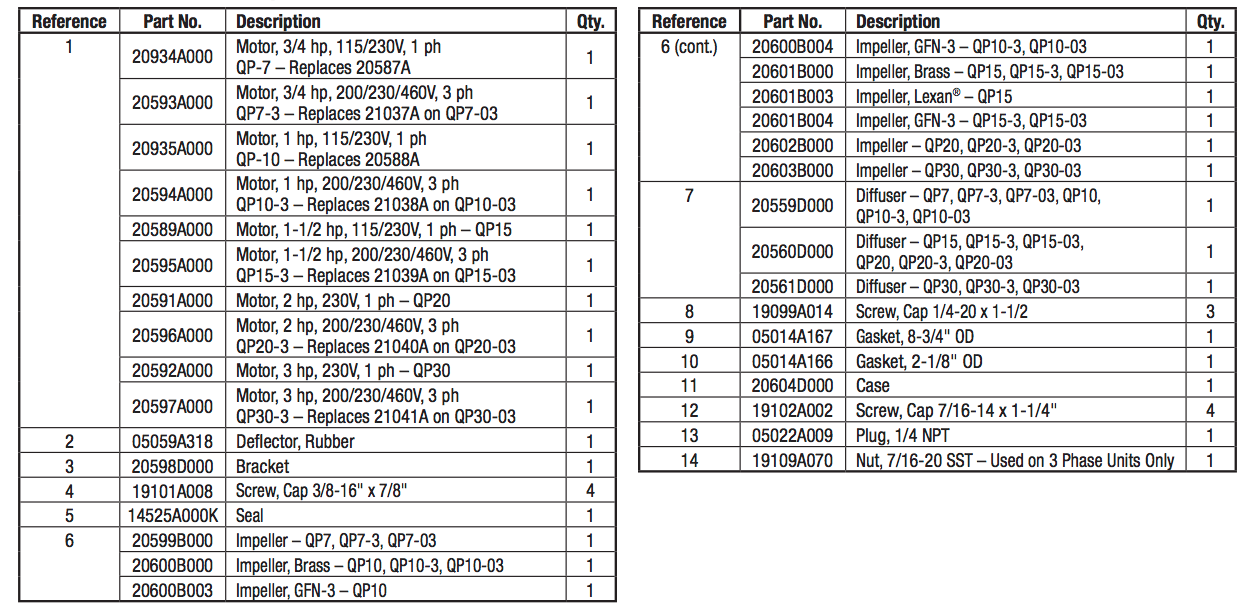

| REPAIR PARTS |
| SPECIFICATIONS |
| Myers QP Series Centrifugal Pump Specifications |
| MANUAL |
| Myers QP Series Centrifugal Pump Manual |
Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
