Myers PQP Series Centrifugal Pumps Buyers Guide & Review

Myers PQP series centrifugal pumps are suited for turf sprinkling and water transfer for either residential or light commercial applications. These pumps are made of lightweight fiberglass-reinforced engineered composite. Reinforcement ribs support the body, while a 2” suction discharge is also featured. The quick priming PQP series also features a self-priming design and offers a stronger pump body that is designed for the professional pump contractor.

Features

Fiberglass-reinforced engineered composite pump body is lightweight, corrosion-resistant and exceptionally strong
High-impact, corrosion-resistant composite base
Fiberglass-reinforced engineered composite seal plate
Polycarbonate impeller
Polycarbonate diffuser
Stainless steel shaft
Stainless steel clamp
Single phase, 115/230V dual voltage, 60 Hz; ODP
Drain Port provided for easy winterization
Easy serviceable back pullout design
2-Compartment, square flange
Motor, thermal overload protected
Rapid priming, once pump body is filled with water

Applications

Turf sprinkling and water transfer for residential and light commercial

MYERS PQP SERIES CENTRIFUGAL PUMPS

Myers PQP Series Centrifugal Pumps

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Phase	GPM	Max. Head
PQP10	1-1/2"	1	115/230	1	55	106'
PQP15	1-1/2"	1-1/2	115/230	1	70	113'
PQP20	2"	2	230	1	80	128'
PQP25	2"	2-1/2	230	1	95	140'

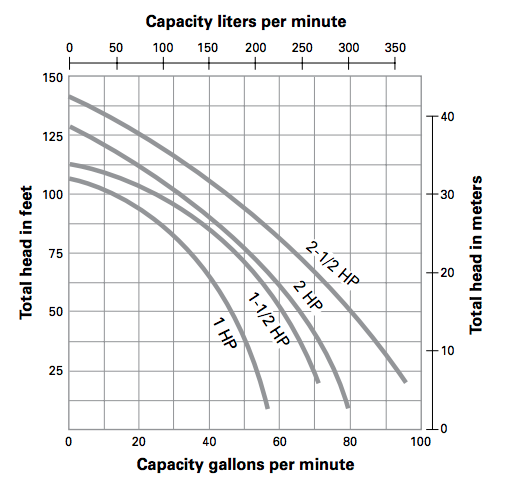

PERFORMANCE CURVES

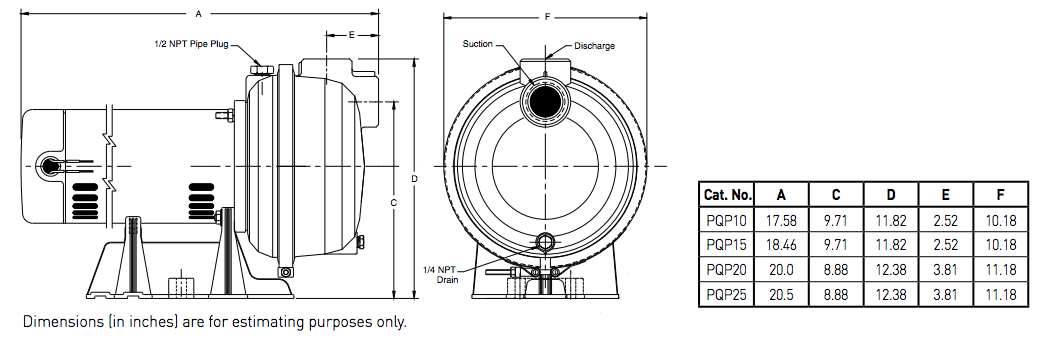

DIMENSIONS

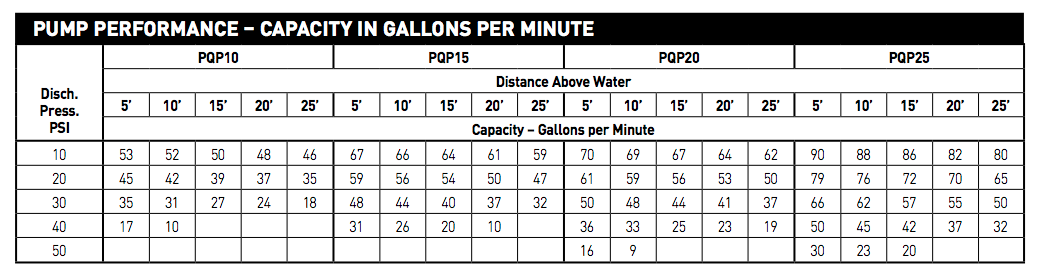

PUMP PERFORMANCE

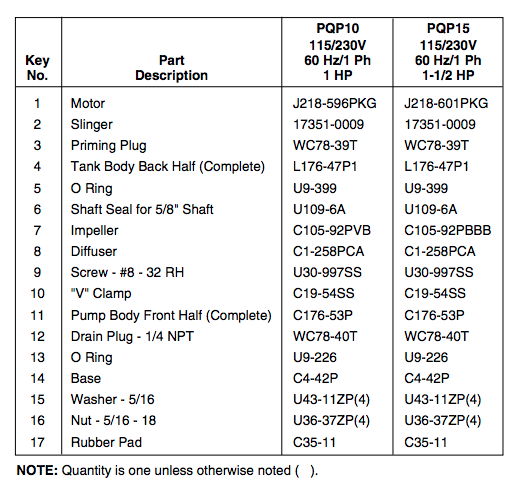

REPAIR PARTS

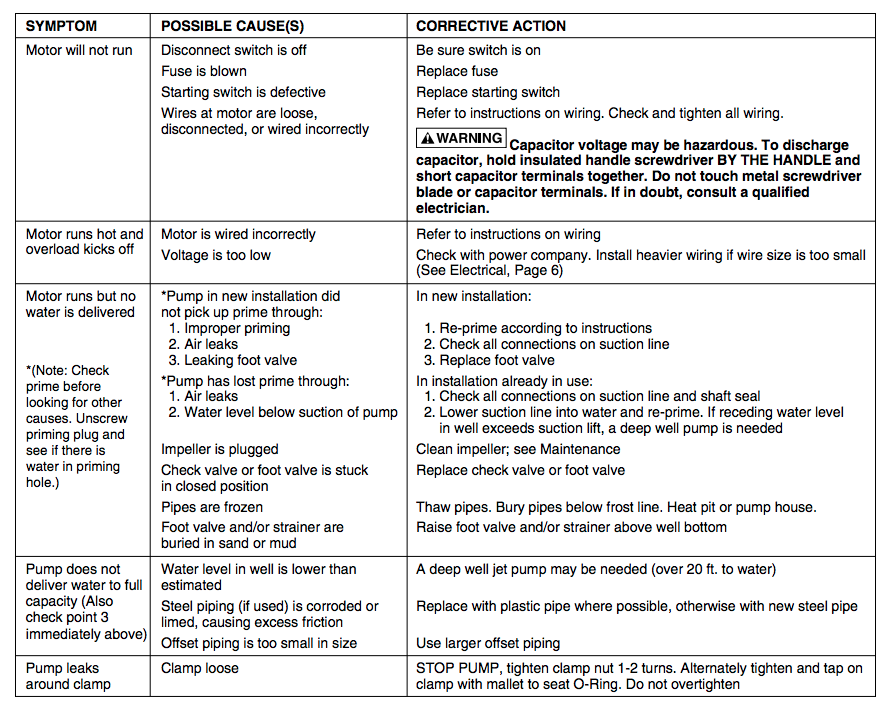

TROUBLESHOOTING

SPECIFICATIONS

Myers PQP Series Centrifugal Pump Specifications

MANUAL

Myers PQP Series Centrifugal Pump Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
