Myers ME40-CI Series Effluent Pumps Buyers Guide & Review

The Myers ME40-CI series of effluent pumps are rugged, submersible cast iron pumps with non-clog, semi-open impellers and solids handling capabilities to 3/4". Each unit has a 4/10 HP single phase motor complete with power cord. 2" NPT vertical discharge is standard. A full selection of accessories for automatic operation is available, and includes float switches, duplex controllers, simplex controllers, alarms, basins and check valves.

Features

Bearings and Mechanical Seal
Permanently lubricated for long life.

Impeller
Vortex style, pump out vanes for seal protection.

Overload Protection
Built-in thermal overload with automatic reset.

Cord Design
Easily replaceable with optional lengths available.

Serviceability
Heavy-duty lift out ring, field serviceable.

Solids Handling
3/4" spherical capability.

Stainless Steel Hardware
Allows easy disassembly after extended service.

Controls
Standard controls available for automatic operation.

MYERS ME40-CI SERIES EFFLUENT PUMPS

Myers ME40-CI Series Effluent Pumps

Model Comparison Chart

Model	Discharge (NPT Vertical)	HP	Voltage	Phase	GPM	Max. Head
ME40MC-11-CI	2"	4/10	115	1	64	40'
ME40PC-11-CI	2"	4/10	115	1	64	40'
ME40MC-11-CI 30	2"	4/10	115	1	64	40'

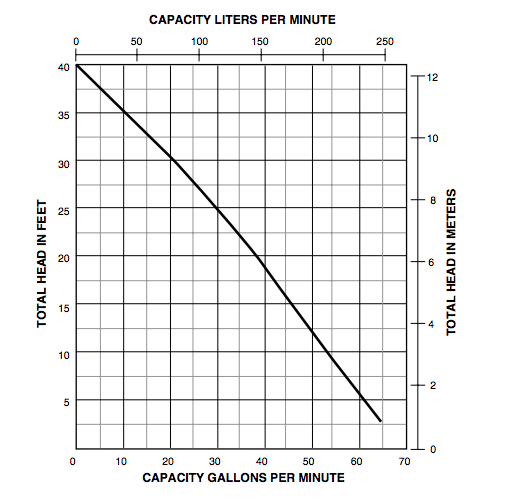

PERFORMANCE CURVE

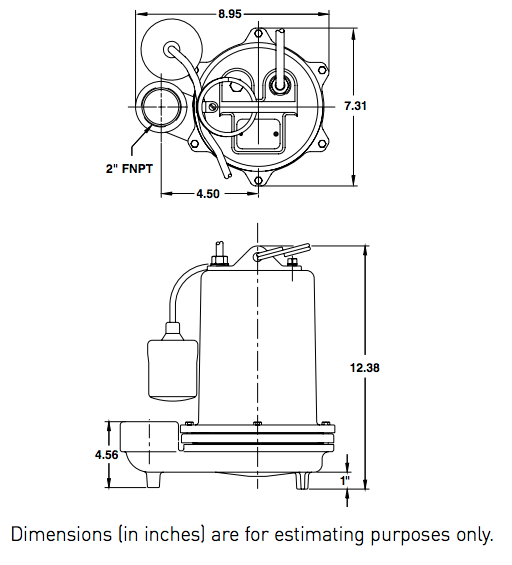

DIMENSIONS

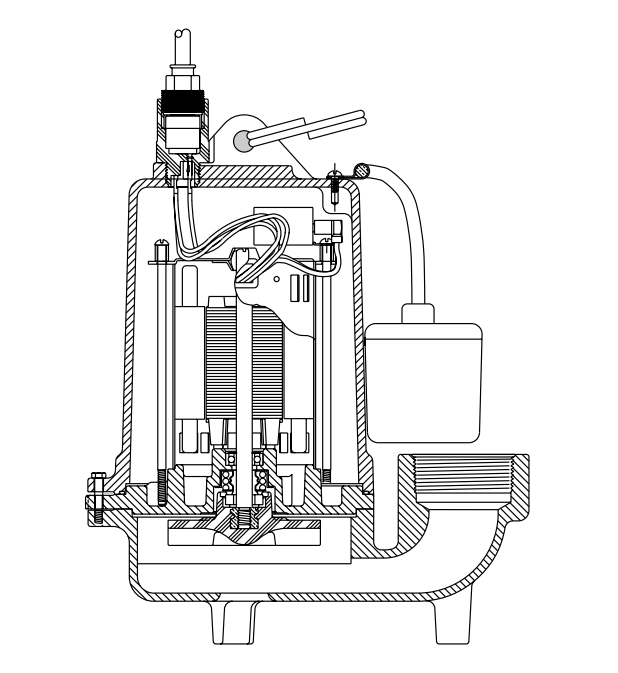

SECTIONAL VIEW

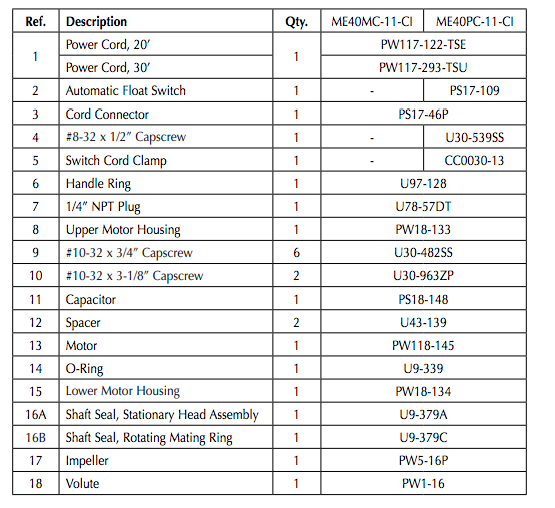

REPAIR PARTS

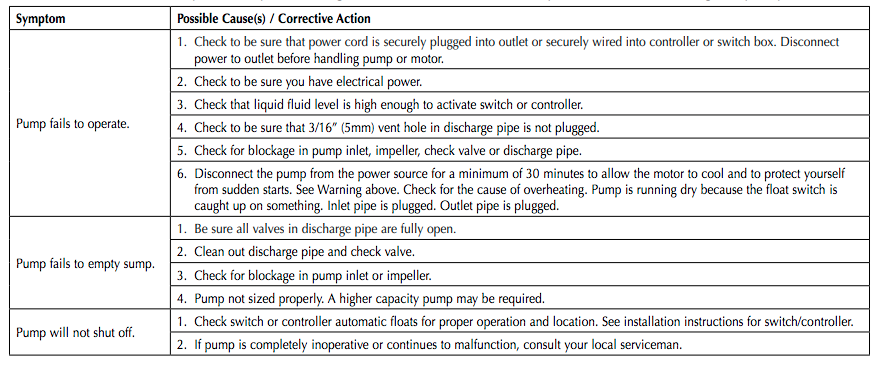

TROUBLESHOOTING

SPECIFICATIONS

Myers ME40-CI Series Effluent Pump Specifications

MANUAL

Myers ME40-CI Series Effluent Pump Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
