Myers ME Series Effluent Pumps Buyers Guide & Review

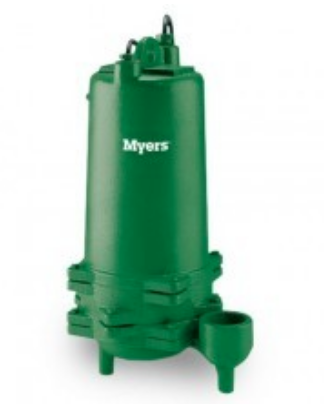

The Myers ME series of effluent pumps are designed specifically for effluent pressure distribution mounds, trenches and high-flow drainage applications. This series features heavy duty construction, providing years of extended service in the harshest environments. The ME series is available in single and double seal models; thermoplastic and bronze impeller models.

Features

Two-vane cast iron impeller design provides maximum dosing efficiency
Enclosed design for high-efficiency pumping
Eliminates possibility of jamming between impeller and volute
Passes full 3/4" solids
Durable motor will deliver many years of reliable service
Oil-filled motor for maximum heat dissipation and continuous bearing lubrication
Optional seal leak probe warns of seal leak condition (dual seal motors only); helps prevent costly motor damage
Motors have a winding current and temperature-sensitive overload (single phase only)
Volute seal ring is replaceable; restores pump to original performance if wear should occur
Motor is held in place by 4 screws; easily removed if service if ever needed

MYERS ME SERIES EFFLUENT PUMPS

Myers ME Series Effluent Pumps

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Phase	GPM	Max. Head
ME75S-01	2"	3/4	200	1	99	65'
ME75S-03	2"	3/4	200	3	99	65'
ME75S-21	2"	3/4	230	1	99	65'
ME100S-21	2"	1	230	1	112	85'
ME100S-01	2"	1	200	1	112	85'
ME75S-23	2"	3/4	230	3	99	65'
ME75S-43	2"	3/4	460	3	99	65'
ME100S-23	2"	1	230	3	112	85'
ME100S-03	2"	1	200	3	112	85'
ME100S-43	2"	1	460	3	112	85'
ME75D-01	2"	3/4	200	1	99	65'
ME150S-01	2"	1-1/2	200	1	120	95'
ME75D-03	2"	3/4	200	3	99	65'
ME150S-21	2"	1-1/2	230	1	120	95'
ME150S-03	2"	1-1/2	200	3	120	95'
ME75D-21	2"	3/4	230	1	99	65'
ME150S-23	2"	1-1/2	230	3	120	95'
ME150S-43	2"	1-1/2	460	3	120	95'
ME75D-23	2"	3/4	230	3	99	65'
ME75D-43	2"	3/4	460	3	99	65'
ME100D-01	2"	1	200	1	112	85'
ME100D-03	2"	1	200	3	112	85'
ME100D-21	2"	1	230	1	112	85'
ME150D-01	2"	1-1/2	200	1	120	98'
ME100D-23	2"	1	230	3	112	85'
ME100D-43	2"	1	460	3	112	85'
ME150D-21	2"	1-1/2	230	1	120	98'
ME150D-43	2"	1-1/2	460	3	120	98'
ME150D-03	2"	1-1/2	200	3	120	98'
ME150D-23	2"	1-1/2	230	3	120	98'

PERFORMANCE CURVE

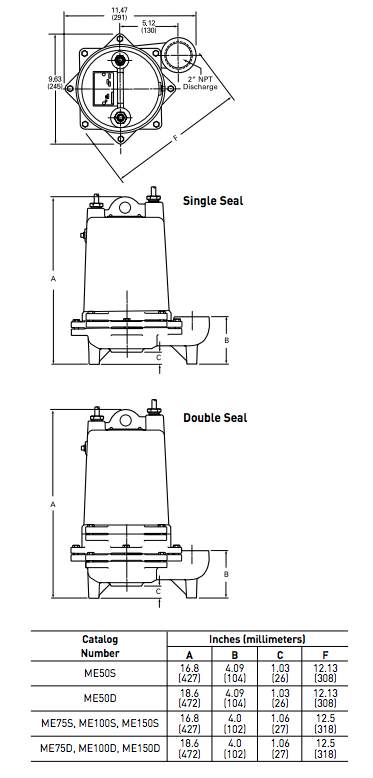

DIMENSIONS

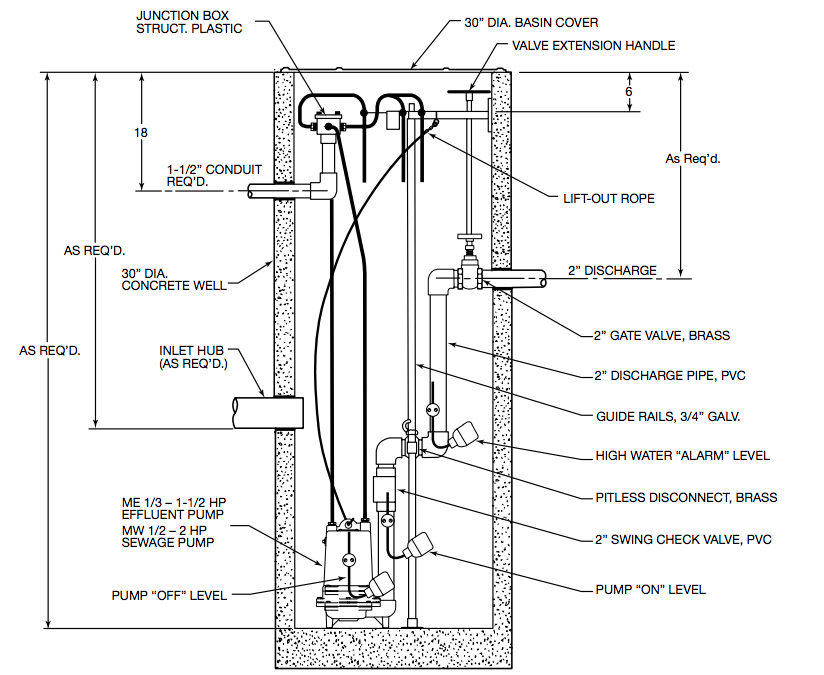

DIAGRAM

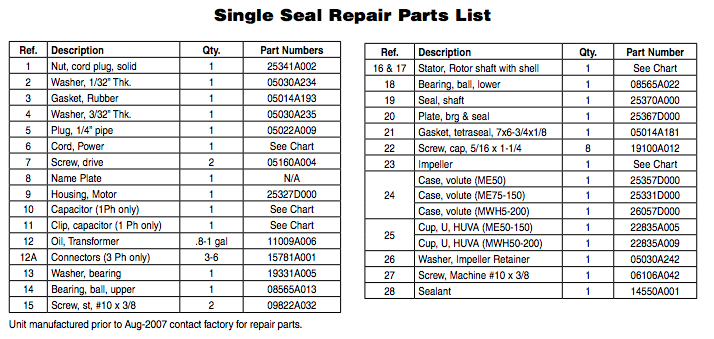

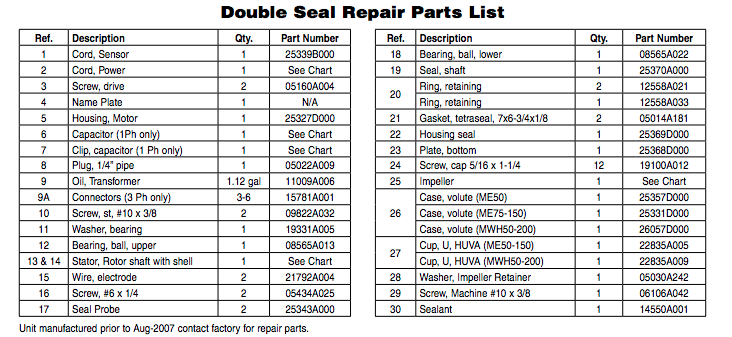

REPAIR PARTS

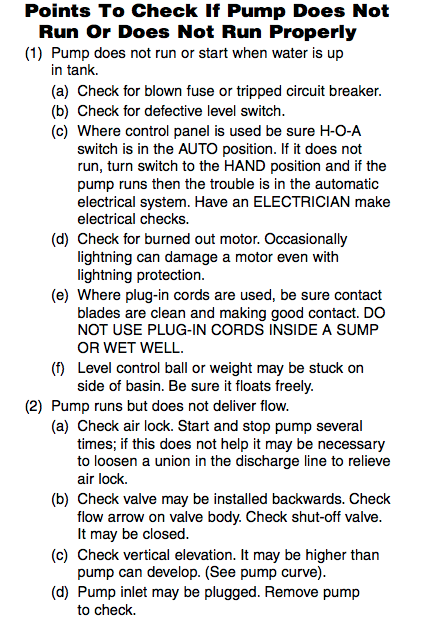

TROUBLESHOOTING

OVERVIEW

Myers ME Series Effluent Pump Overview

BROCHURE

Myers ME Series Effluent Pump Brochure

MANUAL

Myers ME Series Effluent Pump Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
