Myers MDC Series Sump Pumps Buyers Guide & Review

The Myers MDC series of cast iron sump/light effluent pumps are designed to operate in a variety of installations. A unique combination of corrosion-resistant materials makes these pumps a great choice for extreme conditions. Pump intake screen, impeller, volute base, switch, and power cord are serviceable. Available in 1/3 and 1/2 HP models.

Features

Removal of drainage water and light septic tank effluent
Piggy-back vertical float switch for full automatic operation
Oil-filled motor for maximum heat dissipation, continuous bearing lubrication
1/3 or 1/2 HP
48 GPM max capacity
24' shut-off head
Shaded plole motor
Recessed vortex impeller
Thermal overload protection
CSA Listed
Carbon & ceramic shaft seal
Heavy duty cast iron pump body and motor cover
115 volt, single phase motor
1/2" Solids handling
1-1/2" Discharge
10', 16/3, SJTW, SJTW-A power cord
12" minimum sump diameter

MYERS MDC SERIES SUMP PUMPS

Myers MDC Series Sump Pumps

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Power Cord Length	GPM	Max. Head
MDC33V1	1-1/2"	1/3	115	10'	48	24'
MDC50V1	1-1/2"	1/2	115	10'	62	33'
MDC50P1	1-1/2"	1/2	115	10'	62	33'
MDC50PC1	1-1/2"	1/2	115	20'	62	33'
MDC50VC1	1-1/2"	1/2	115	20'	62	33'

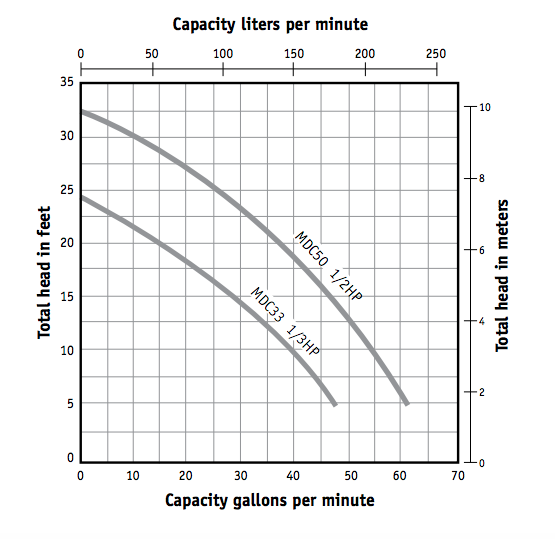

PERFORMANCE CURVES

DIMENSIONS

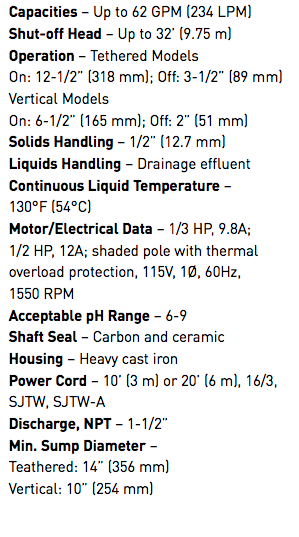

SPECIFICATIONS

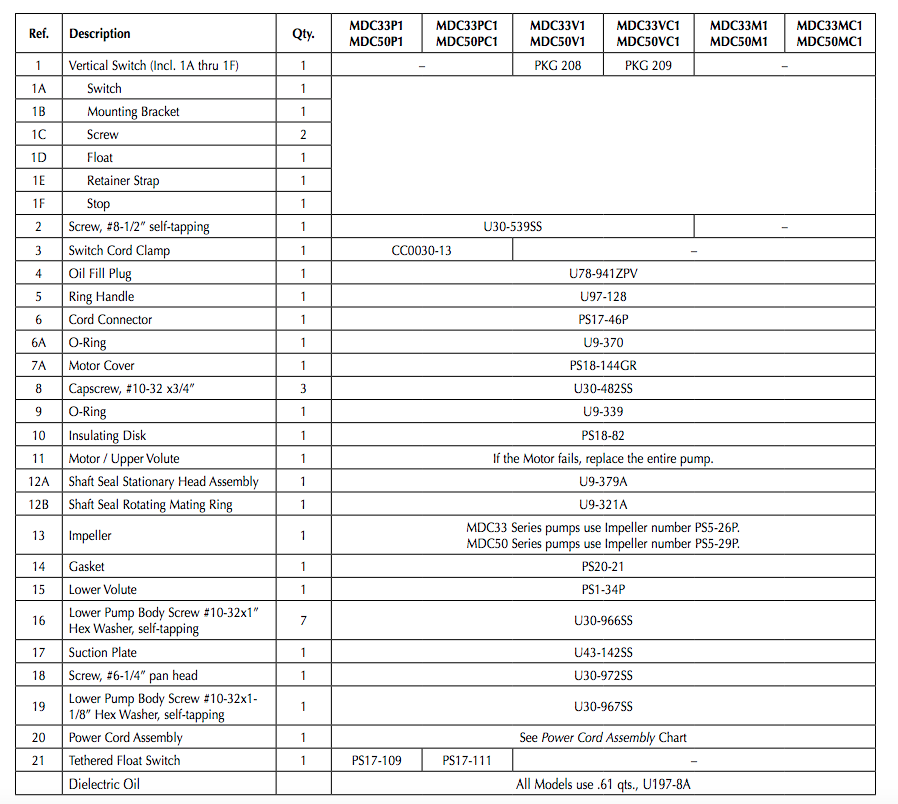

REPAIR PARTS

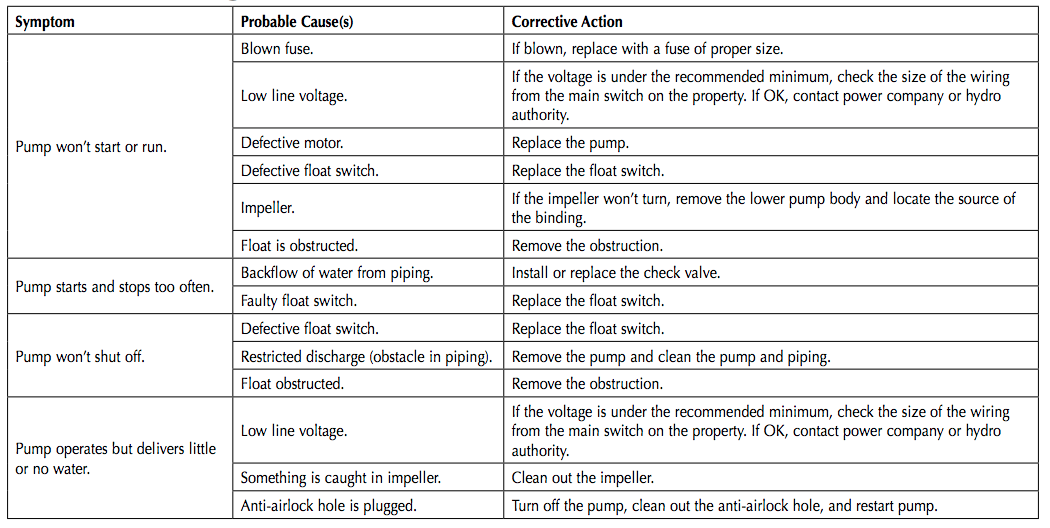

TROUBLESHOOTING

BROCHURE

Myers MDC Series Sump Pump Brochure

MANUAL

Myers MDC Series Sump Pump Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
