Myers MD Series High Head Filtered Effluent Pumps Buyers Guide & Review

The Myers MD series of 4” stainless steel submersible effluent pumps are capable of drawing down to 4-1/2” (a standard NEMA 4” only draws down to 13-1/2”). Lower amp draw reduces operating costs and extends the life of the float switch contacts. Pumped fluid flows around the motor providing cooling and sound dampening. This series is ideal for STEP Effluent, drainfield and mound dosing, drip disposal dosing, treatment dosing, high head effluent pumping, septic tank effluent and cistern pumping applications.

Features

1/2 HP, 115V, single-phase
Superior drawdown capability to 4-1/2" (114 mm) vs. 13-1/2" (343 mm) on a standard NEMA 4"
25% reduced amp-draw 9.5A vs. 12.7A on a standard NEMA 4"
Stainless steel and composite construction
Exclusive dry-run capability
Enclosed and self-lubricated shaft-bearing resists wear from abrasives
Heavy 7/16" (12 mm) positive drive 300 Series stainless steel hexagonal shaft
Serviceable composite intake screen — allows for .080" solids

MYERS MD SERIES HIGH HEAD FILTERED EFFLUENT PUMPS

Myers MD Series High Head Filtered Effluent Pumps

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Phase	GPM	Max. Head
20MD05121-01	1-1/4"	1/2	115	1	32	148'
10MD05121-01	1-1/4"	1/2	115	1	18	230'
30MD05121-01	1-1/4"	1/2	115	1	40	85'

PERFORMANCE CURVE

DIMENSIONS

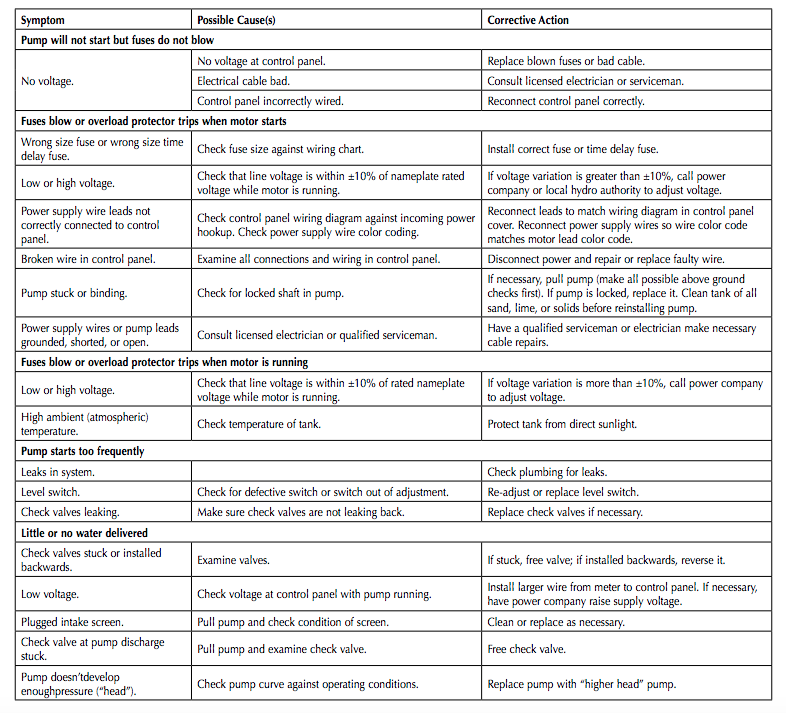

TROUBLESHOOTING

SPECIFICATIONS

Myers MD Series Effluent Pump Specifications

OWNERS MANUAL

Myers MD Series Effluent Pump Owners Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
