Myers Pumps Buyer Guides

Myers MCSP Series Pedestal Sump Pumps Buyers Guide & Review

Myers Pumps Buyer Guides

May 17, 2019

Myers MCSP Series Pedestal Sump Pumps Buyers Guide & Review

The Myers MCSP series of pedestal sump pumps are industry-proven for reliability and offer an economical choice for new installation or retrofit. Easy to install and an ideal solution for residential basement sump drainage. Available in engineered thermoplastic or cast iron models.

Features

Quick and easy installation
Fits 12" diameter X 24" deep or larger sump pits
Available with corrosion-resistant thermoplastic or cast iron pump
housing and base
Built-in reliability and ease of operation
Thermal overload protection to prevent motor overload
Top-mounted adjustable float switch for easy accessibility
Top-screened inlet to reduce clogging
Pumps up to 50 GPM

MYERS MCSP SERIES PEDESTAL SUMP PUMPS

Myers MCSP Series Pedestal Sump Pumps

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Phase	GPM	Max. Head
MCSP3	1-1/4"	1/3	115	1	50	18'
MCSP3I	1-1/4"	1/3	115	1	50	18'

PERFORMANCE CURVES

DIMENSIONS

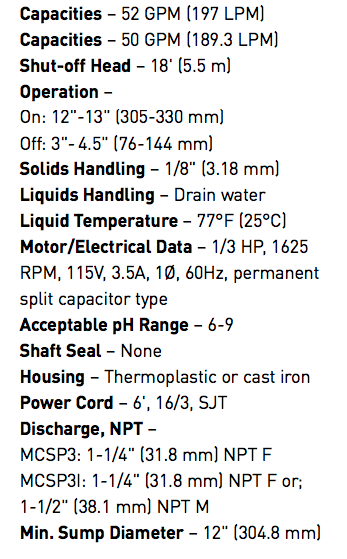

SPECIFICATIONS

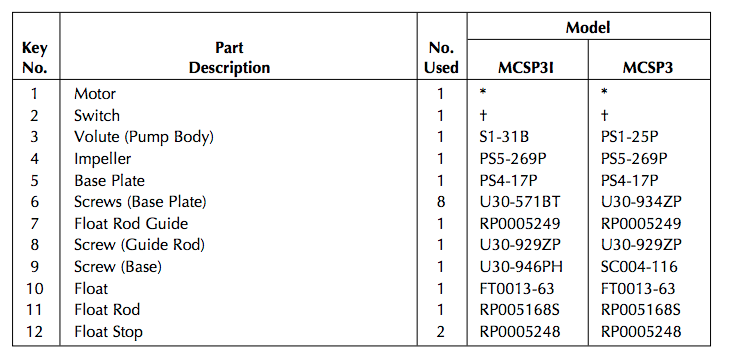

REPAIR PARTS

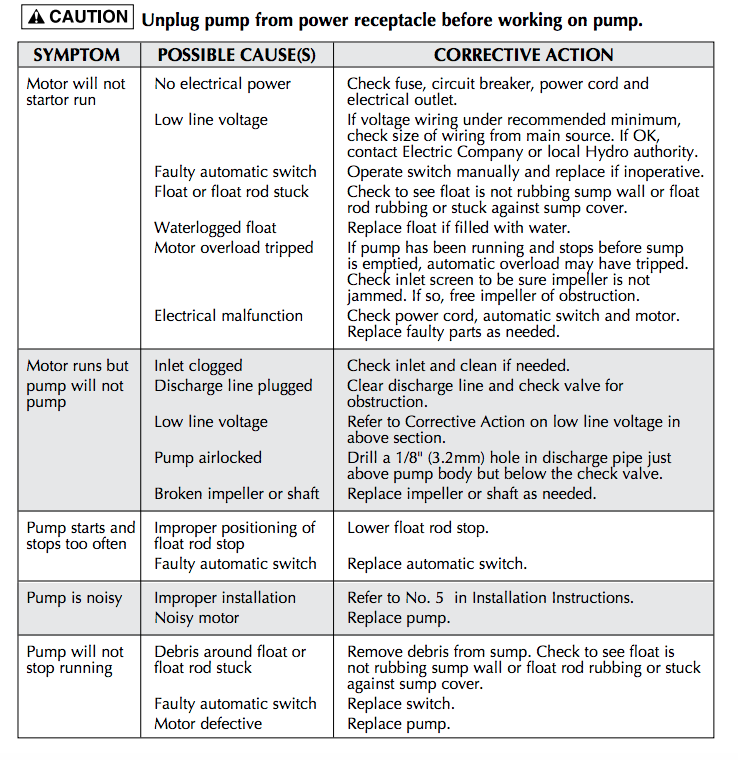

TROUBLESHOOTING

BROCHURE

Myers MCSP Series Pedestal Sump Pump Brochure

MANUAL

Myers MCSP Series Pedestal Sump Pump Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
