Myers HR Series Convertible Jet Pumps Buyers Guide & Review

Myers HR Series of convertible jet pumps provide reliable service for many residential homes and farms, as well as commercial and industrial applications.

If using this pump for NEW INSTALLATIONS in deep well applications, a deepwell jet assembly package in either twin pipe or packer style must be purchased separately (see brochure in Manuals tab for choosing the approprate jet assembly). This pump requires a pressure regulator P/N 15285A014 (sold separately).

Features

Cast iron pump case
Dual compartment, 115/230 Volt double-ball bearing motor with voltage selector switch
Priming screen
Diffuser with stainless steel wear ring
Square D pressure switch
Durable machined heavy-duty construction pump body provides long product life
Precision molded impellers and diffuser provide smooth, balanced performance and efficiency
High quality proven pressure switch with adjustable on/off pressure settings. 20 PSI differential
Heavy-duty motor with double ball bearing design and voltage selection device
Mechanical shaft seal with ceramic face and stainless steel construction for long seal life

MYERS HR SERIES CONVERTIBLE JET PUMPS

Myers HR Series Convertible Jet Pumps

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Phase	GPM	Max. Head
HR50S	1"	1/2	115/230	1	16	160'
HR50D	1"	1/2	115/230	1	16	160'

PERFORMANCE CURVES

DIMENSIONS

INSTALLATION DIAGRAM

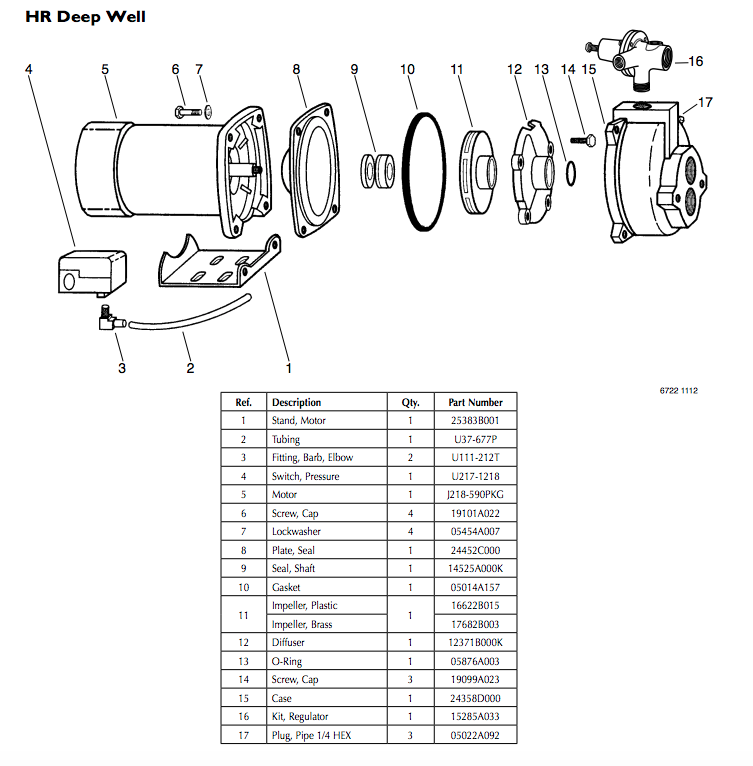

REPAIR PART KITS

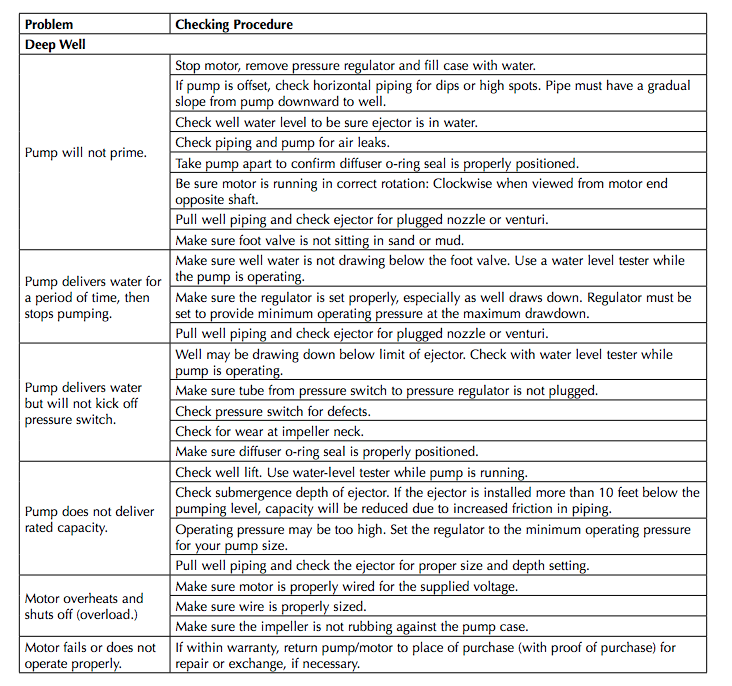

TROUBLESHOOTING

SPECIFICATIONS

Myers HR Series Convertible Jet Pump Specifications

MANUAL

Myers HR Series Convertible Jet Pump Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
