Liberty Pumps Buyer Guides

Liberty SBX-Series Sumpboxes Buyers Guide & Review

Liberty Pumps Buyer Guides

April 30, 2019

Liberty SBX-Series Sumpboxes Buyers Guide & Review

The Liberty SBX-series sumboxes are groundwater protection units designed for use in new home construction. These fully assembled units feature a pump, box, debris filter tray, float switches, and radon ready sealed covers.

Features:

Fully assembled
Pre-mounted pump secured with torque-stops
Unique removable 15 quart filter tray
Safety overflow feature
Schedule 80 PVC discharge
Pump cover securely bolted with stainless steel fasteners
Large 41 gallon capacity
Easy access cover requires no tools to open
Easy to service float switches located in holders under access cover
Anti-float collar with "Staking" locators
Radon-Ready. Provision for 3" Vent Pipe (Pipe seal included, uninstalled)

Some models include a pre-set alarm.

LIBERTY SBX-SERIES SUMPBOXES

Model Comparison Chart

Model	Pump	Discharge	HP	Voltage	Full Load Amps	GPM @ 10'	Shut-off Head	Alarm	Weight lbs.	Solids
SBX35	S35	1-1/2" FNPT	1/3	115	6.5	35	25'	No	50	1/4"
SBX35A	S35	1-1/2" FNPT	1/3	115	6.5	35	25'	Yes	50	1/4"
SBX280	280	1-1/2" FNPT	1/2	115	10	56	37'	No	67	3/4"
SBX280A	280	1-1/2" FNPT	1/2	115	10	56	37'	Yes	67	3/4"

PERFORMANCE RATINGS

FEATURES BREAKDOWN

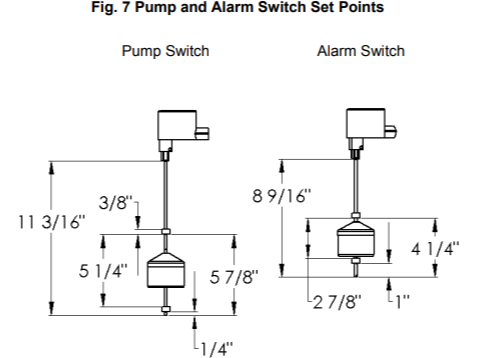

DIAGRAMS

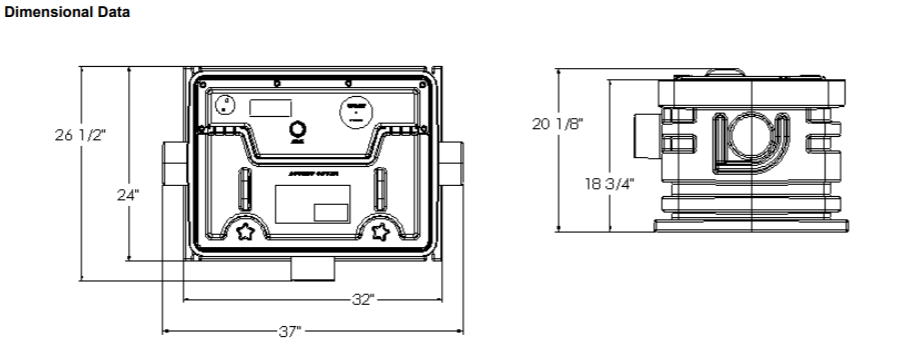

DIMENSIONAL DATA

BROCHURE

Liberty SBX-Series Sumpbox Brochure

MANUAL

Liberty SBX-Series Sumpbox Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
