Liberty ProVore 380-Series Simplex Grinder Packages Buyers Guide & Review

The Liberty ProVore 380-series is a compact simplex grinder package designed for residential sewage applications. Each unit includes a Liberty ProVore grinder pump, a polyethylene basin, and QuickTree float technology. Some models may include alarm.

Features

Compact heavy-duty polyethylene basin and cover
System can be installed above or below floor level
41 gallon capacity for longer pump cycles
Patented V-Slice cutter technology shreds difficult solids such as feminine products, rags, towels, and wipes that can jam solids-handling pumps
Easy access cover with QuickTree technology allows for quick float removal and servicing
Heavy-duty integrated rubber gaskets on covers
Secure 16 bolt cover is standard on all models
IAPMO listed. Passes 10' stack test

Perfect for basement bathroom additions and remodeling projects.

LIBERTY PROVORE 380-SERIES SIMPLEX GRINDER PACKAGES

Model Comparison Chart

Model	Pump	Discharge	HP	Voltage	Phase	GPM	Max. Head	Cord	Alarm
P382XPRG101-2	PRG101M	2"	1	115	1	46	50'	25"	No
P382XPRG101	PRG101M	2"	1	115	1	46	50'	10"	No
P382XPRG101-2/A2	PRG101M	2"	1	115	1	46	50'	25"	Yes
P382XPRG101/A2	PRG101M	2"	1	115	1	46	50'	10"	Yes

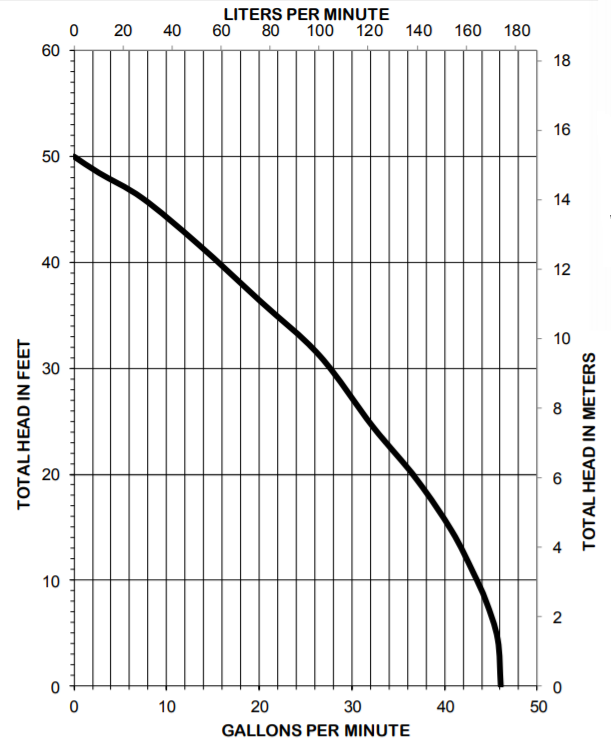

PERFORMANCE RATINGS

BREAKDOWN DIAGRAM

TYPICAL INSTALLATIONS

FLOAT SETTINGS

DIMENSIONAL DATA

TECHNICAL DATA

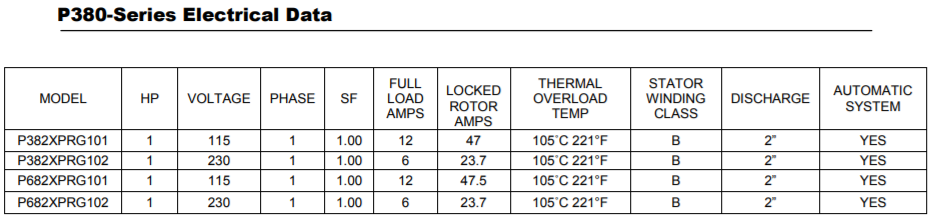

ELECTRICAL DATA

BROCHURE

Liberty ProVore 380-Series Simplex Grinder Package Brochure

MANUAL

Liberty ProVore 380 & ProVore 680-Series Grinder Package Installation Manual

SPECIFICATIONS

Liberty ProVore 380 & ProVore 680-Series Sewage Package Specifications

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
