Liberty 2484-Series Simplex Grinder Packages Buyers Guide & Review

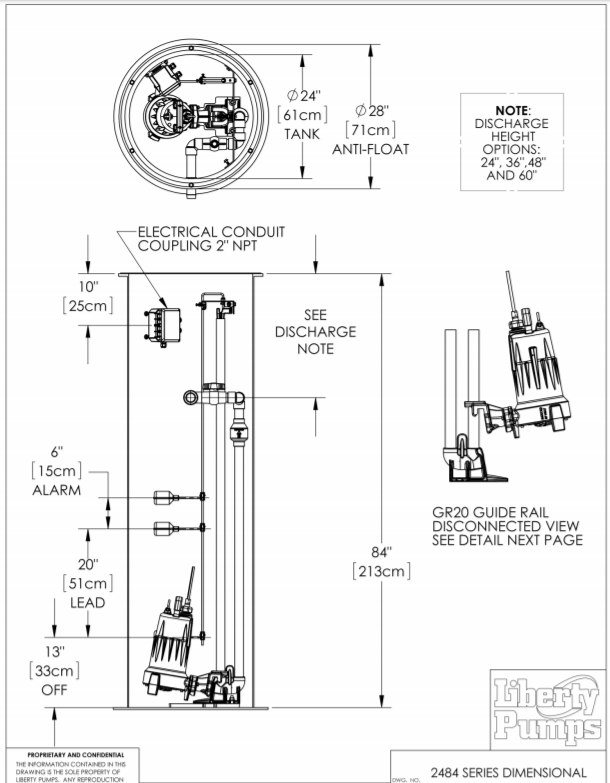

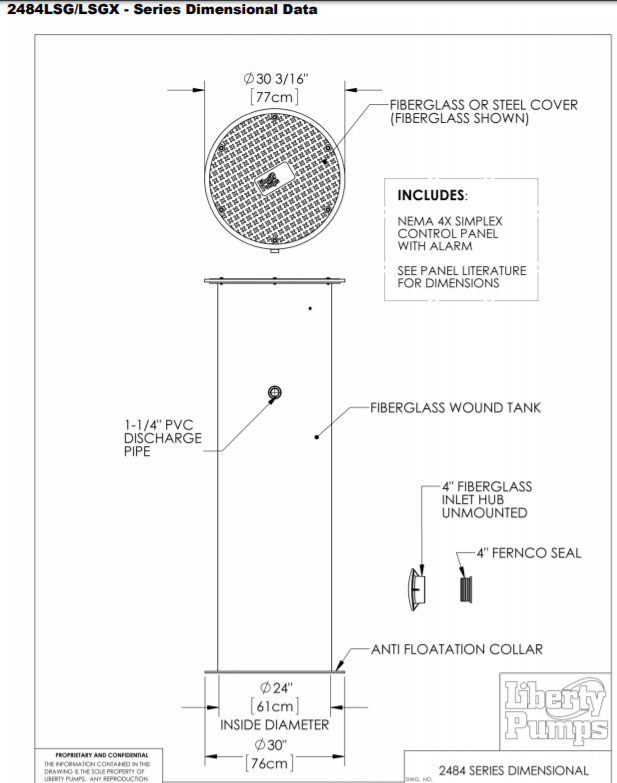

The Liberty 2484 series is a simplex grinder package for residential and commercial applications. Factory assembled, this simplex grinder package features the LSG or LSGX Omnivore grinder pump, a 24" x 72" basin, QuickTree float assembly, GR20 guide rails and SX-Series control panel.
Features:
- Factory assembled simplex grinder package with 24" x 84" fiberglass basin & Omnivore grinder pump
- 2 HP heavy-duty oil filled and thermally protected motor, 208/230v, 1 phase, 1-1/4" discharge

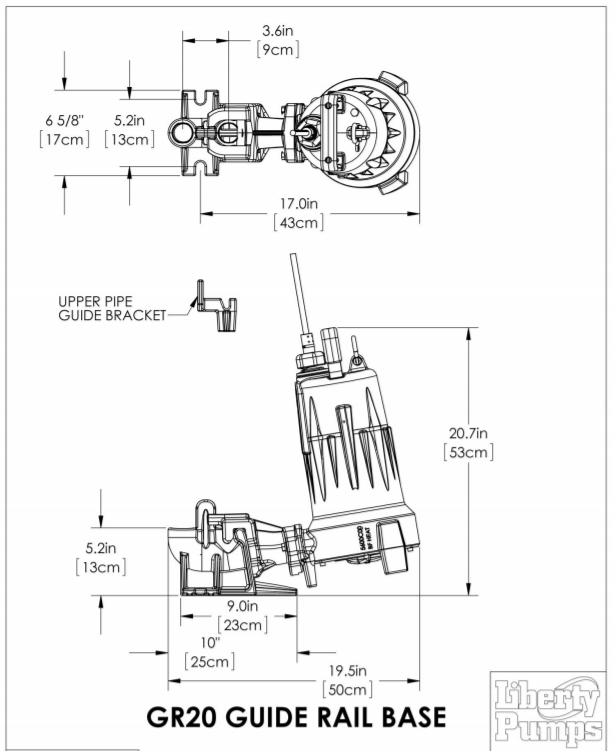

- GR20 guide rail assembly
- New V-Slice Cutter technology: Recessed cutter bolt eliminates wadding & exclusion clean out slots clear debris from under the cutter
- Provides superior cutting with improved shredding performance over radial cutters
- V-pattern cutter provides up to 108 alternate cuts per revolution
- Standard panel SXH24=3
- NEMA 4X junction box for electrical connections pre-mounted
- Stainless steel chain for pump lift-out included
- Includes Liberty's standard three year limited warranty
All internal brackets, floats, guide-rail base and discharge piping are pre-installed at the factory, saving hours of labor on the job site.

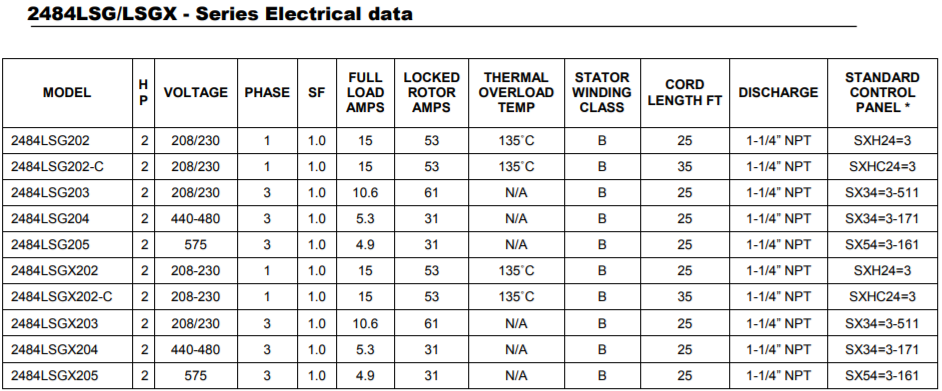

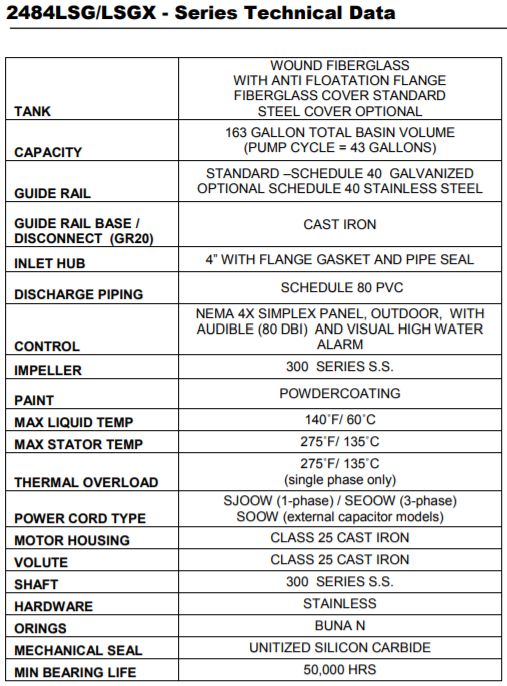

| LIBERTY 2484-SERIES GRINDER PACKAGES |

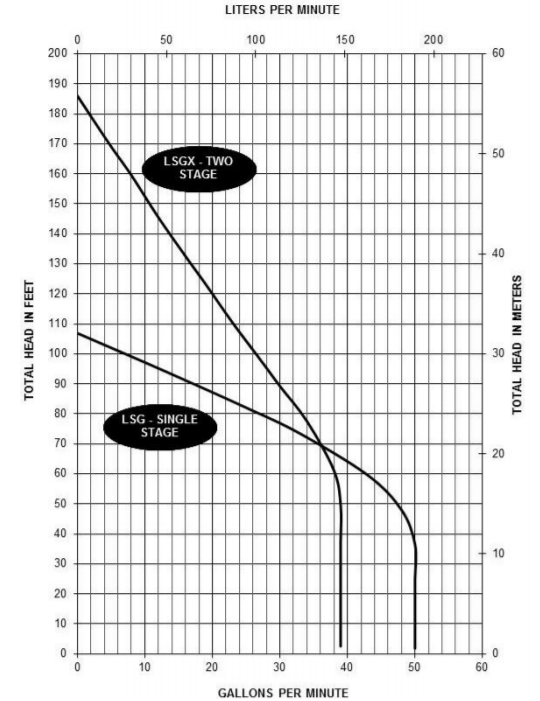

Model Comparison Chart
