Grundfos ALPHA Series Circulator Pumps Buyers Guide & Review

Grundfos Pumps Buyer Guides

July 01, 2019

Grundfos ALPHA Series Circulator Pumps Buyers Guide & Review

The Grundfos ALPHA series circulator pumps adapt to the variable demands of a system without sacrificing comfort. Using the AUTOADAPT feature, the Grundfos ALPHA will analyze the system and adjust to meet your heating demands. By incorporating a permanent magnet motor design, power consumption is now reduced by 50%.

Features:

AUTOADAPT measures system changes automatically and maximizes energy savings
Easy-to-use operation
Select a mode with the touch of a button
Easy-to-read LED display shows flow indication and power consumption
Simple plug connections
No wiring required
Terminal box for conduit connection applications

GRUNDFOS ALPHA SERIES CIRCULATOR PUMPS

Grundfos ALPHA Series Circulator Pumps

Model Comparison Chart

Model	Pipe Connection (GF)	HP	Voltage	Construction	GPM	Max. Head
ALPHA 15-55F	15/26	1/16	115	Cast Iron	21	19'
ALPHA 15-55SFC	15/26	1/16	115	Stainless Steel	21	19'
ALPHA2 15-55SF/LC	15/26	1/16	115	Stainless Steel	21	19'

PERFORMANCE CURVES

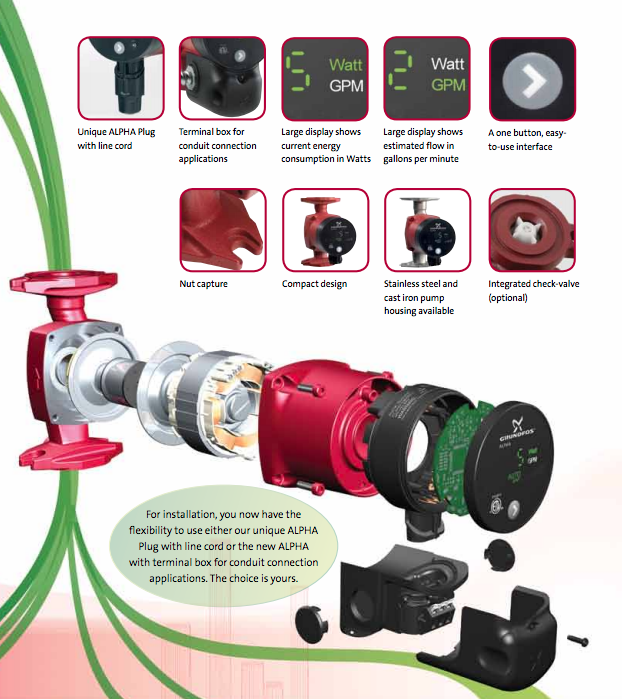

FEATURES

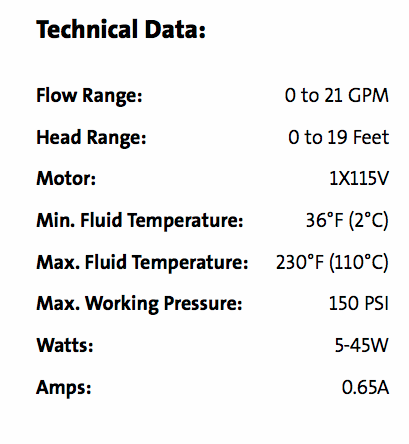

SPECIFICATIONS

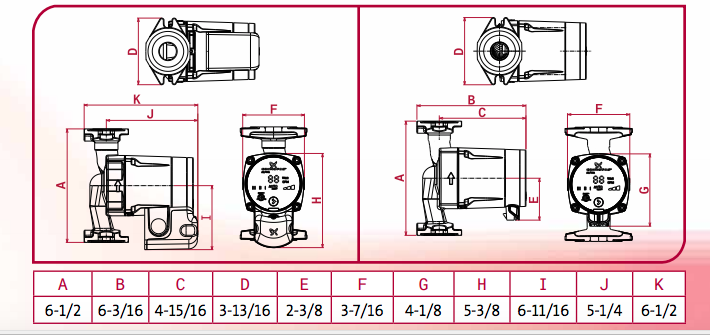

DIMENSIONS

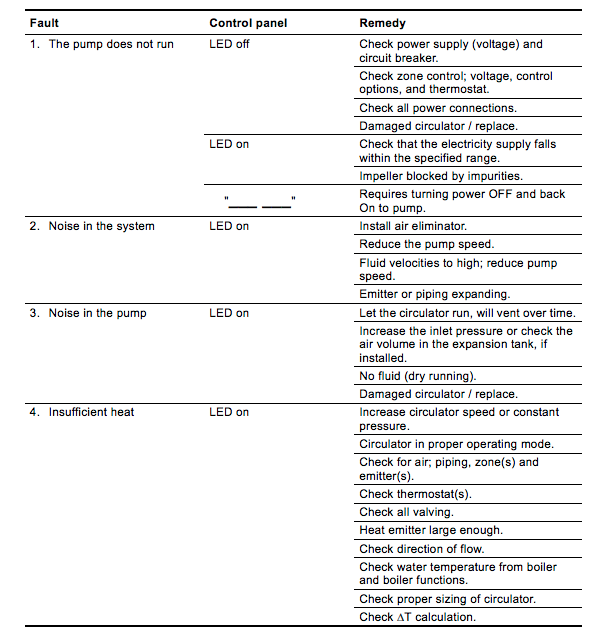

TROUBLESHOOTING

SERIES OVERVIEW

Grundfos ALPHA Series Circulator Pump Series Overview

INSTRUCTIONS

Grundfos ALPHA Series Circulator Pump Instructions

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
