Goulds SPBB Series Battery Backup Sump Pumps Buyers Guide & Review

The Goulds SPBB series Battery Backup Sump Pumps are designed to provide emergency backup service for a sump system if the primary sump pump fails. Sump pump failure often occurs during power outages caused by storms. The SPBB Series can also operate if the primary pump can't keep up with the groundwater inflow.

Included in the SPBB Battery Backup Sump Pumps unit is a 12 volt pump, a float switch, a 10 amp battery charger a check valve, pipe fittings, and a battery box. The pump is self-charging and is enabled for automatic start-up operation. The charger includes indicator lights and an alarm sound to warn the user when pumping commences and/or if the battery will not charge.

Please note that the primary sump pump and the battery itself are not included in this package. The system requires a minimum 105 amp deep cycle marine battery, Series 27.

GOULDS SPBB SERIES BATTERY BACKUP

Model Comparison Chart

Model	Voltage	Max GPH	Discharge Height @ Max GPH	Battery Life @ Max GPH
SPBB2	12	2250	5'	7 hours

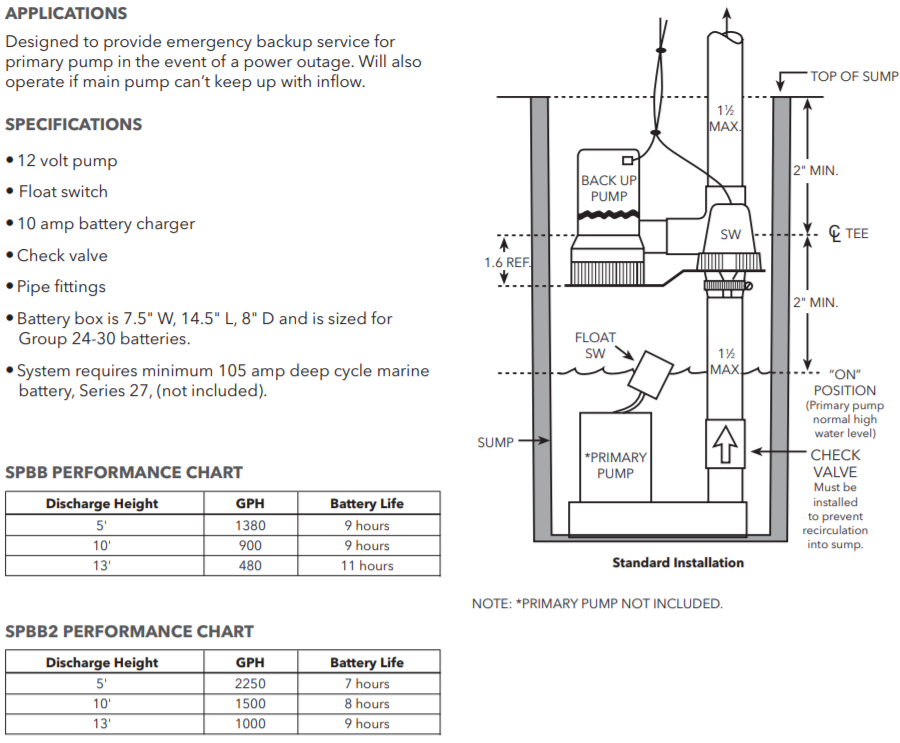

SPECIFICATIONS AND PERFORMANCE

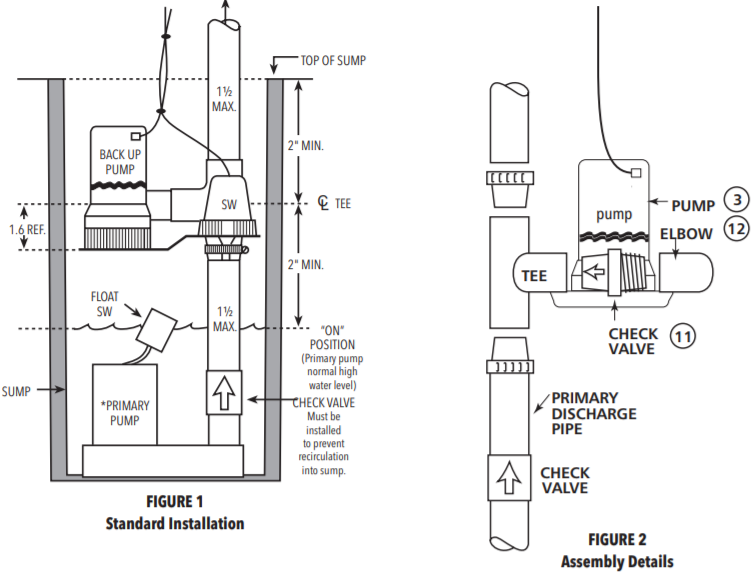

INSTALLATION AND ASSEMBLY

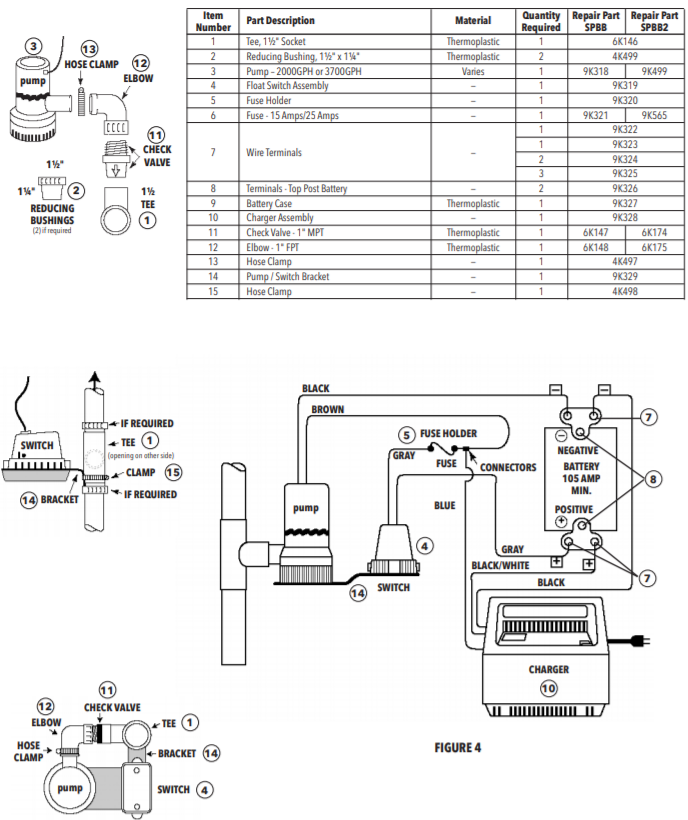

REPAIR PARTS

BROCHURE

Goulds SPBB Battery Backup Sump Pump Brochure

MANUAL

Goulds SPBB Battery Backup Sump Pump Installation Manual

REPAIR PARTS

Goulds SPBB Battery Backup Sump Pump Repair Parts

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
