Goulds PV Series Sewage Pumps Buyers Guide & Review
Goulds PV Series Submersible Sewage Pumps are heavy duty while also being portable and compact. Each pump is comprised of a corrosion resistant cast iron body with a thermoplastic vortex impeller which is capable of handling up to 2" waste solids. The mechanical seal is a mixture of carbon, ceramic, BUNA, and stainlees steel, while the fasteners are stainless steel. The motor is permanently lubricated for extended service life and powered for continuous operation. It includes built-in thermal overload protection with an automatic reset and an oil-filled design. The shaft is high strength carbon steel.
These Goulds PV Series Sewage Pumps are built for residential sewage system applications. They can also be used for sump, dewatering, and general water transfer applications as well. All pumps are single phase operated and include a replaceable 16/3 STJW NEMA three prong power cord. Manual and automatic models available.
| Goulds PV Series |
Model Comparison Chart
| Model | HP | Voltage | GPM | Max. Head | Operation | Cord | Float |
| PV41M | 4/10 | 115 | 70 | 17' | Manual | 10' | N/A |
| PV41MF | 4/10 | 115 | 70 | 17' | Manual | 20' | N/A |
| PV41A1 | 4/10 | 115 | 70 | 17' | Auto | 10' | T-Spliced Wide Angle |
| PV51M | 4/10 | 115 | 100 | 22' | Manual | 10' | N/A |
| PV41P1 | 4/10 | 115 | 70 | 17' | Auto | 10' | Piggyback Wide Angle |
| PV41AV | 4/10 | 115 | 70 | 17' | Auto | 10' | T-Spliced Vertical |
| PV51MF | 1/2 | 115 | 100 | 22' | Manual | 20' | N/A |
| PV42MF | 4/10 | 230 | 70 | 17' | Manual | 20' | N/A |
| PV41P1F | 4/10 | 115 | 70 | 17' | Auto | 20' | Piggyback Wide Angle |
| PV51A1 | 1/2 | 115 | 100 | 22' | Auto | 10' | T-Spliced Vertical |
| PV51P1 | 1/2 | 115 | 100 | 22' | Auto | 10' | Piggyback Wide Angle |
| PV51AV | 1/2 | 115 | 100 | 22' | Auto | 10' | T-Spliced Vertical |
| PV52MF | 1/2 | 230 | 100 | 22' | Manual | 20' | N/A |
| PV51P1F | 1/2 | 115 | 100 | 22' | Auto | 20' | Piggyback Wide Angle |
| PV42P1F | 4/10 | 230 | 70 | 17' | Auto | 20' | Piggyback Wide Angle |
| PV52P1F | 1/2 | 230 | 100 | 22' | Auto | 20' | Piggyback Wide Angle |

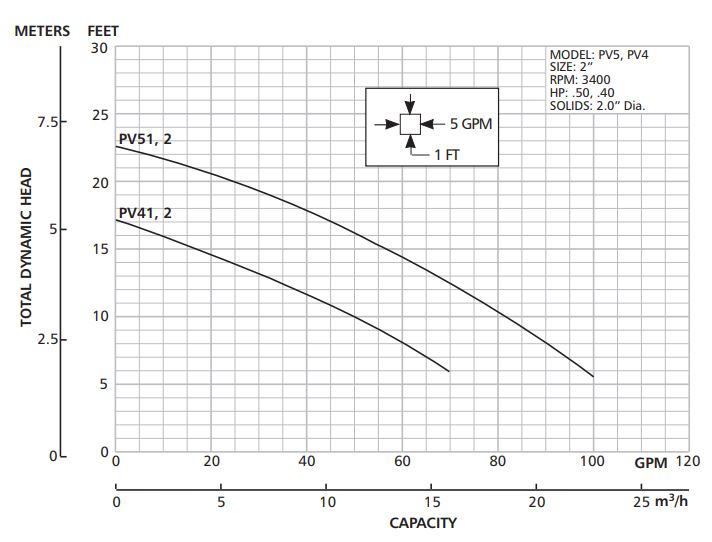

| Performance Curve |
| TECHNICAL BROCHURES |
| Goulds PV Sewage Pump Brochure |
| MANUALS |
| N/A |
| PARTS LISTS |
| Goulds PV Sewage Pump Repair Parts List |
| SPECIFICATIONS |
| N/A |
