Goulds NPO-F Series Centrifugal Pumps Buyers Guide & Review

Goulds NPO-F series frame mounted end suction centrifugal pumps are designed to serve multiple washer applications, including dishwashers, glass washers, commercial laundry systems, and parts washers among others. The pumps feature AISI 316L stainless steel liquid handling components for corrosion resistance and strength. Note: This is the pump end only, motor not included.

Features

Complete AISI 316L stainless steel liquid handling components and mounting bracket for corrosion resistance, quality appearance, and improved strength and ductility
Open impeller design passes up to 3/8″ solids including food particles, lint, metal filings, and other wash residue
Stainless steel construction with NPT threaded centerline connections, easily accessible vent, prime, and drain connections with stainless steel plugs. Optional seal face vent/flush available
Frame mounted simplifies maintenance and installation
Standard John Crane type 21 mechanical seals with carbon versus ceramic faces and viton elastomers. Optional high temperature and chemical duty seals available
The NPO can be installed in either a horizontal or vertical position. An optional seal chamber vent is available

Applications

Dish washers
Bottle and glass washers
Commercial laundry systems
Parts washers
Machine tool coolant
Water circulation
Booster service
Liquid transfer
Spray system
Chillers
Washing/cleaning systems
Air scrubbers
Filtration systems
OEM applications
General water services

GOULDS NPO-F SERIES CENTRIFUGAL PUMPS

Goulds NPO-F Series Centrifugal Pumps

Model Comparison Chart

Model	Discharge (NPT)	Suction (NPT)	Impeller Size	HP (@3500 RPM)	GPM	Max. Head
1SNFRMF4	1"	1-1/4"	3"	1/2	45	27'
1SNFRMA4	1"	1-1/4"	4-5/16"	2.4	75	64'
1SNFRMC4	1"	1-1/4"	3-3/4"	1.4	63	48'
1SNFRME4	1"	1-1/4"	3-1/4"	0.8	54	33'
1SNFRMH4	1"	1-1/4"	5"	2.4	85	83'
1SNFRMB4	1"	1-1/4"	4"	1.9	72	55'
1SNFRMD4	1"	1-1/4"	3-1/2"	1	60	40'
1SNFRMG4	1"	1-1/4"	5-3/8"	2.4	89	89'
2SNFRME4	1-1/4"	1-1/2"	4-1/16"	2.2	110	55'
2SNFRMG4	1-1/4"	1-1/2"	3-7/16"	1.4	93	40'
2SNFRMB4	1-1/4"	1-1/2"	5-1/16"	4.2	157	93'
2SNFRMD4	1-1/4"	1-1/2"	4-5/16"	2.8	117	63'
2SNFRMF4	1-1/4"	1-1/2"	3-3/4"	1.9	102	47'
2SNFRMA4	1-1/4"	1-1/2"	5-5/16"	4.5	167	103'
2SNFRMC4	1-1/4"	1-1/2"	4-5/8"	3.3	145	77'
3SNFRMG4	1-1/2"	2"	3-3/4"	1.3	160	56'
3SNFRMB4	1-1/2"	2"	5-1/4"	5-1/4	138	106'
3SNFRMD4	1-1/2"	2"	4-5/8"	2.9	208	82'
3SNFRMF4	1-1/2"	2"	4-3/16"	1.8	177	68'
3SNFRMA4	1-1/2"	2"	5-7/16"	6.6	146	114'
3SNFRMC4	1-1/2"	2"	4-15/16"	3.4	223	93'
3SNFRME4	1-1/2"	2"	4-7/16"	2.4	195	78'

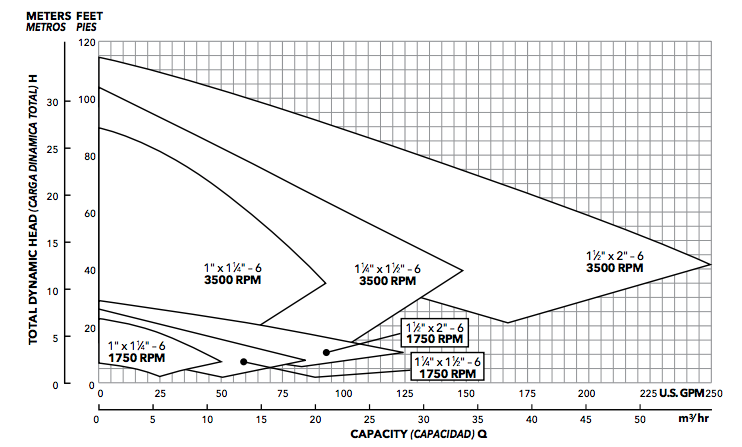

PERFORMANCE COVERAGE

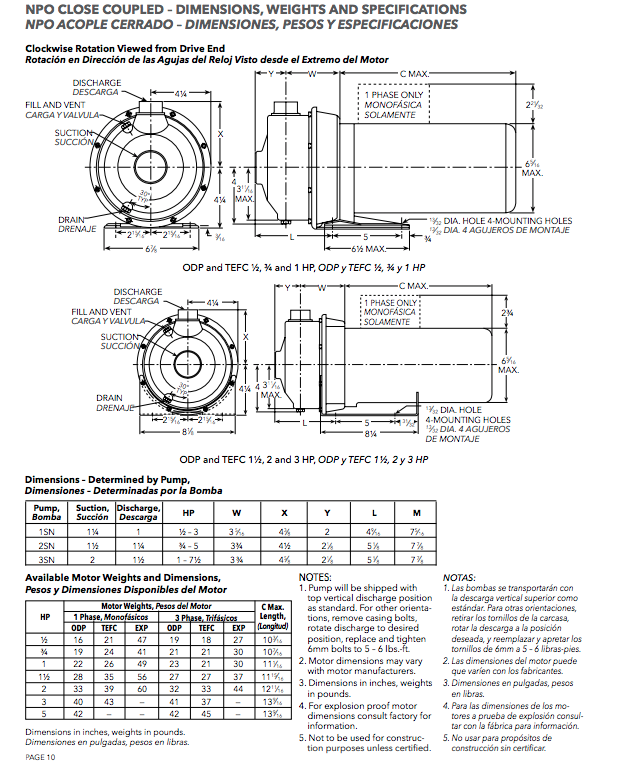

DIMENSIONS

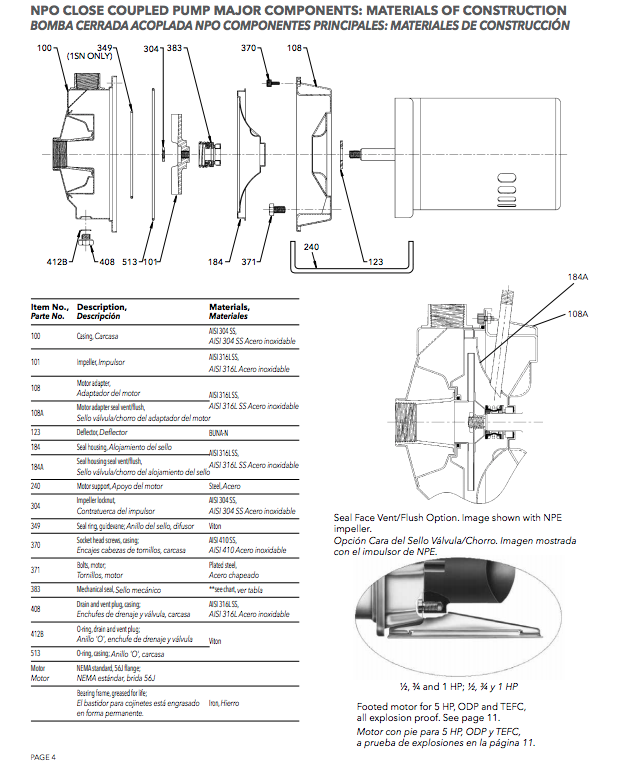

MATERIALS OF CONSTRUCTION

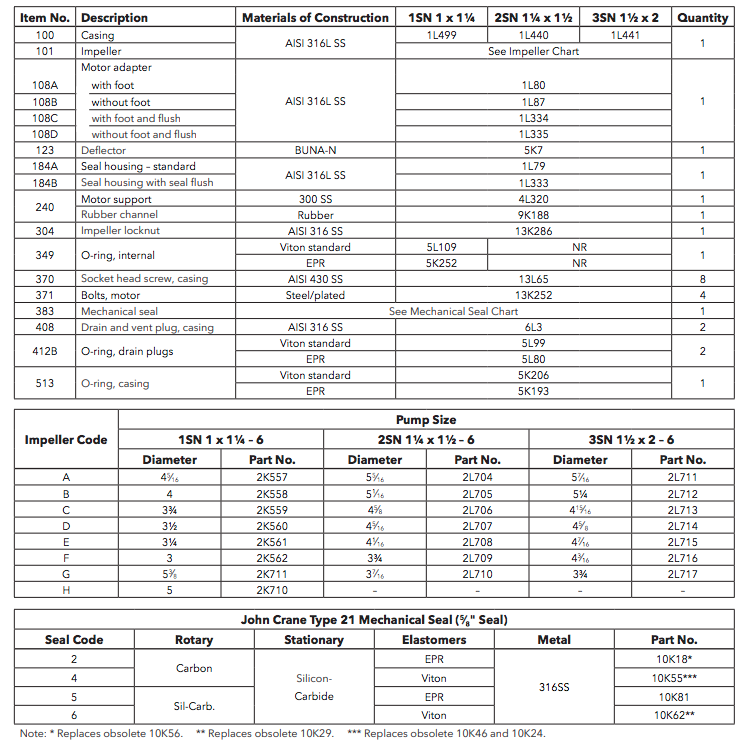

REPAIR PARTS

TECHNICAL BROCHURE

Goulds NPO-F Series Centrifugal Pump Technical Brochure

INSTRUCTION MANUAL

Goulds NPO-F Series Centrifugal Pump Instruction Manual

REPAIR PARTS

Goulds NPO-F Series Centrifugal Pump Repair Parts

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
