Goulds MCS Series Centrifugal Pumps Buyers Guide & Review

Goulds’ MCS Series stainless steel, end-suction, centrifugal pumps are designed for a broad range of general applications including, water circulation, booster, liquid transfer, etc. This series is available in single or three phase with a variety of power outputs, voltages, and suction/discharge sizes. These pumps are built with a high efficiency, stainless steel impeller, VITON or BUNA mechanical seal, and an open drip-proof or totally enclosed fan cooled motor. The MCS series can handle heads up to 142 ft. TDH and capacities up to 220 GPM. For similar pumps with cast iron casing, look at Goulds’ MCC Series.

Features

AISI 304 and 316L stainless steel liquid handling components for corrosion resistance, quality appearance, and improved strength and ductility
Enclosed impeller with unique floating seal ring design maintains maximum efficiencies over the life of the pump without adjustment
Stainless steel construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connections with stainless steel plugs
Standard John Crane seal with carbon ceramic faces, BUNA elastomers and stainless metal parts
NEMA standard motor
Rugged ball bearing design for continuous duty under all operating conditions

Applications

Water circulation
Booster service
Liquid transfer
Spray system
Chillers
Washing/cleaning systems
Injection molding cooling
Reverse osmosis
Air scrubbers
Heat exchangers
Filtration systems
Jockey pumps
OEM applications
General water services

GOULDS MCS SERIES CENTRIFUGAL PUMPS

Goulds MCS Series Centrifugal Pumps

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Phase	RPM	Mechanical Seal
1MS1C1E0	1"	1/2	115/230	1	3500	BUNA
1MS1C2E0	1"	1/2	208-230/460	3	3500	BUNA
1MS1C1E4	1"	1/2	115/230	1	3500	VITON
1MS1D1D0	1"	3/4	115/230	1	3500	BUNA
1MS1C2E4	1"	1/2	208-230/460	3	3500	VITON
2MS1D1F0	1-1/4"	3/4	115/230	1	3500	BUNA
1MS1C4E0	1"	1/2	115/230	1	3500	BUNA
1MS1D1D4	1"	3/4	115/230	1	3500	VITON
1MS1C5E0	1"	1/2	208-230/460	3	3500	BUNA
1MS1D2D0	1"	3/4	208-230/460	3	3500	BUNA

*For a complete listing of models in the Goulds MCS series, please visit our MCS series product pages.

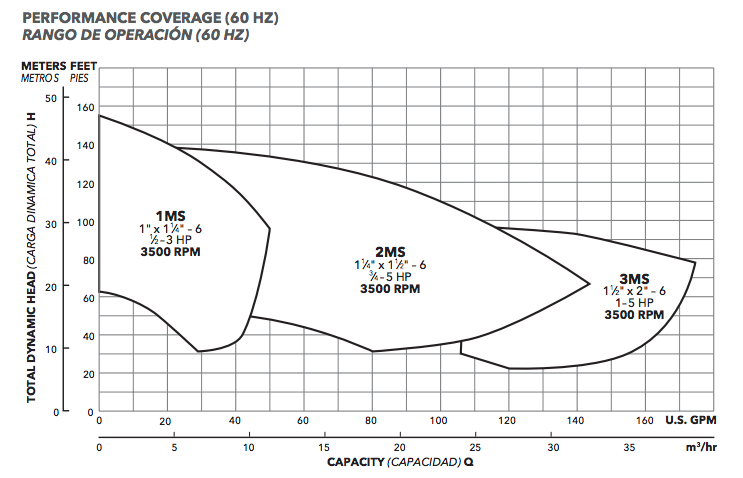

PERFORMANCE COVERAGE

SPECIFICATIONS

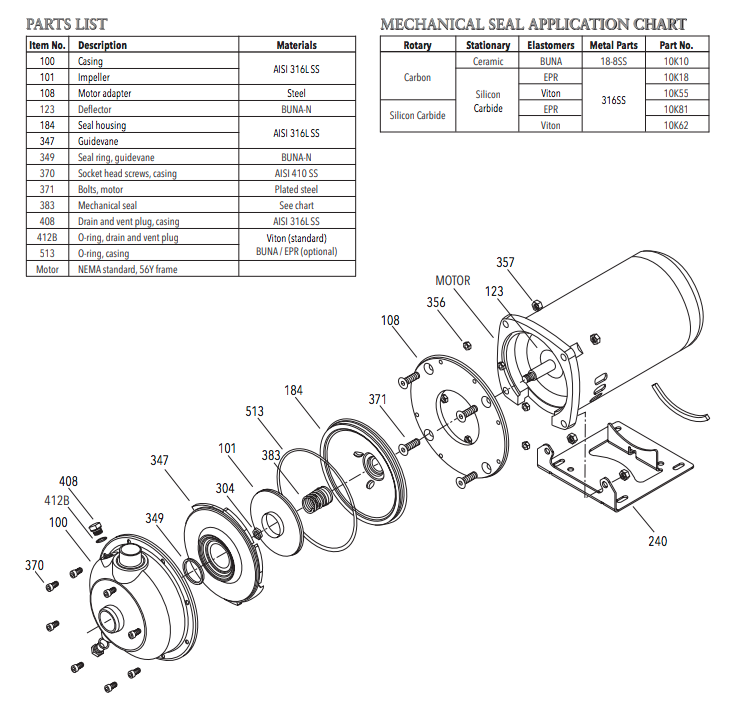

COMPONENTS

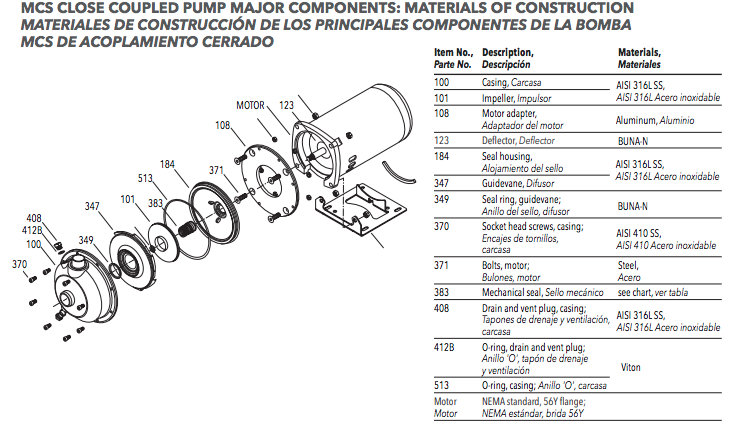

MATERIALS OF CONSTRUCTION

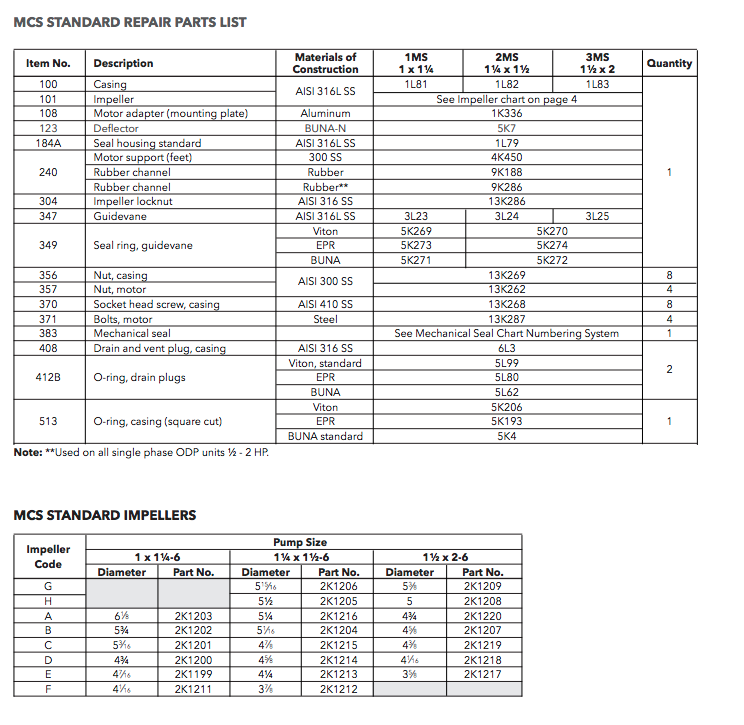

REPAIR PARTS

BROCHURE

Goulds MCS Series Centrifugal Pump Brochure

INSTALLATION MANUAL

Goulds MCS Series Centrifugal Pump Installation Manual

INSTALLATION MANUAL ADDENDUM (IMPELLER ASSEMBLY PROCESS)

Goulds MCS Series Centrifugal Pump Installation Manual Addendum (Impeller Assembly Process)

REPAIR PARTS

Goulds MCS Series Centrifugal Pump Repair Parts

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
