Goulds 3656 M Series Centrifugal Pumps Buyers Guide & Review

Goulds’ 3656 M Series close-coupled, end-suction, centrifugal pumps have been designed for a variety of water supply, recirculation, and cooling applications. This series features a cast iron or bronze fitted, enclosed impeller available in multiple diameters. These pumps are built with an ANSI flanged or NPT suction and discharge that comes in multiple sizes. The motors come in open drip-proof or totally enclosed fan cooled, single or three phase, and in 1750 or 3500 RPM versions. These pumps are available in a wide range of power outputs. The selected options determine the maximum head and flow.

Features

Back pull-out to reduce maintenance down time
Standard Type 21 mechanical seal for both reliability and availability
Carbon/ceramic/BUNA standard, with other faces and elastomers available
Available in packed stuffing box design with Teflon impregnated packing, split Teflon lantern ring, tapped flush connection and 2 piece investment cast interlocking gland, all standard
Replaceable wearing components include stainless steel shaft sleeve and casing and hub wear rings to maintain peak efficiency
Enclosed impeller design, dynamic balancing and renewable wear rings reduce losses affecting performance and pump life

Applications

Booster service
Spraying systems
Irrigation
Water circulation
Liquid transfer
General purpose pumping

GOULDS 3656 M SERIES CENTRIFUGAL PUMPS

Goulds 3656 M Series Centrifugal Pumps

Model Comparison Chart

Model	Discharge	HP	Voltage	Phase	RPM	Impeller Material
16AI2EBJ0	3" ANSI Class 125 Flange	1	230/460	3	1750	Cast Iron
16AI2E9J0	3" ANSI class 125 flange	1	230/460	3	1750	Cast Iron
16BF2EBJ0	3" ANSI class 125 flange	1	230/460	3	1750	Bronze
16AI2FBH0	3" ANSI class 125 flange	1-1/2	230/460	3	1750	Cast Iron
7AI2GBF0	2-1/2" NPT	2	230/460	3	1750	Cast Iron
16AI2F9H0	3" ANSI class 125 flange	1-1/2	230/460	3	1750	Cast Iron
7AI2G9F0	2-1/2" NPT	2	230/460	3	1750	Cast Iron
16BF2E9J0	3" ANSI class 125 flange	1	230/460	3	1750	Bronze
16AI1LBH0	3" ANSI class 125 flange	10	230/460	3	3500	Cast Iron
16BF2FBH0	3" ANSI class 125 flange	1-1/2	230/460	3	1750	Bronze

*For a complete listing of models in the Goulds 3656 M series, please visit our 3656 M series product pages.

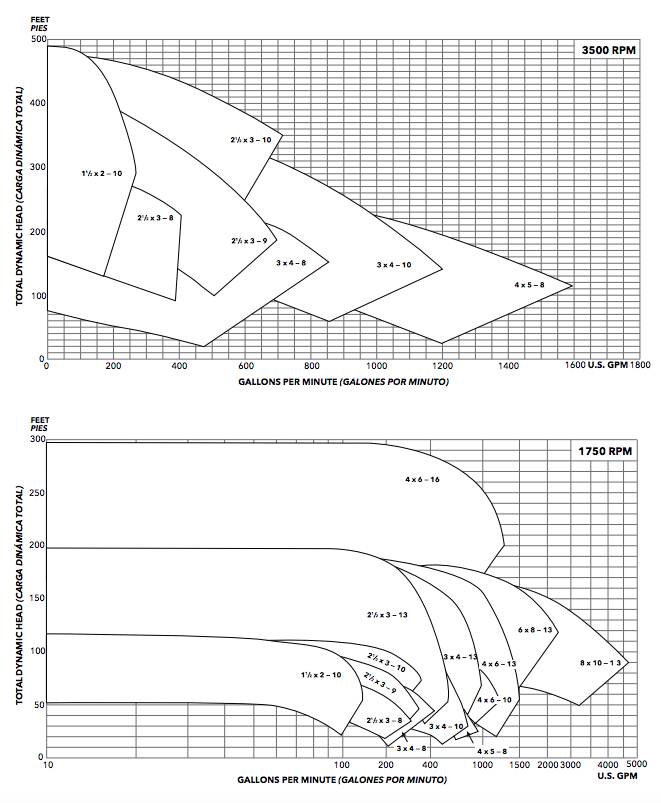

PERFORMANCE CURVES

DIMENSIONS

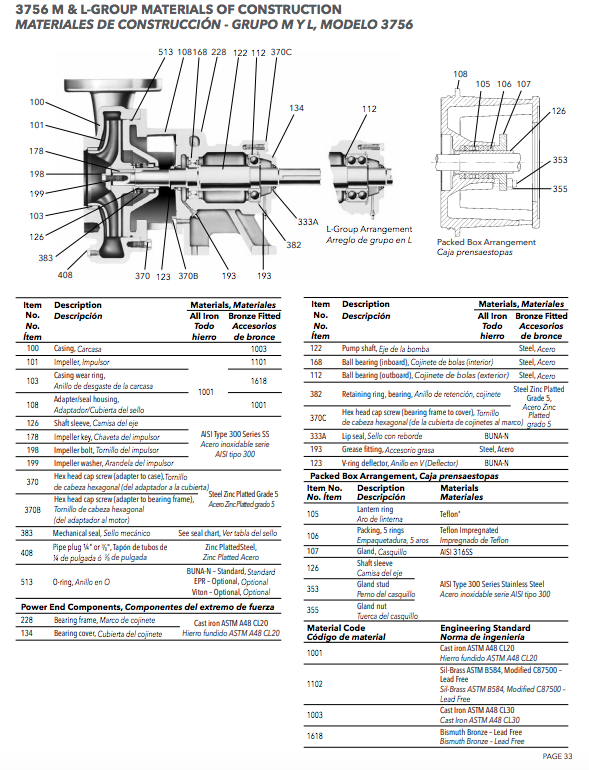

MATERIALS OF CONSTRUCTION

ENGINEERING DATA

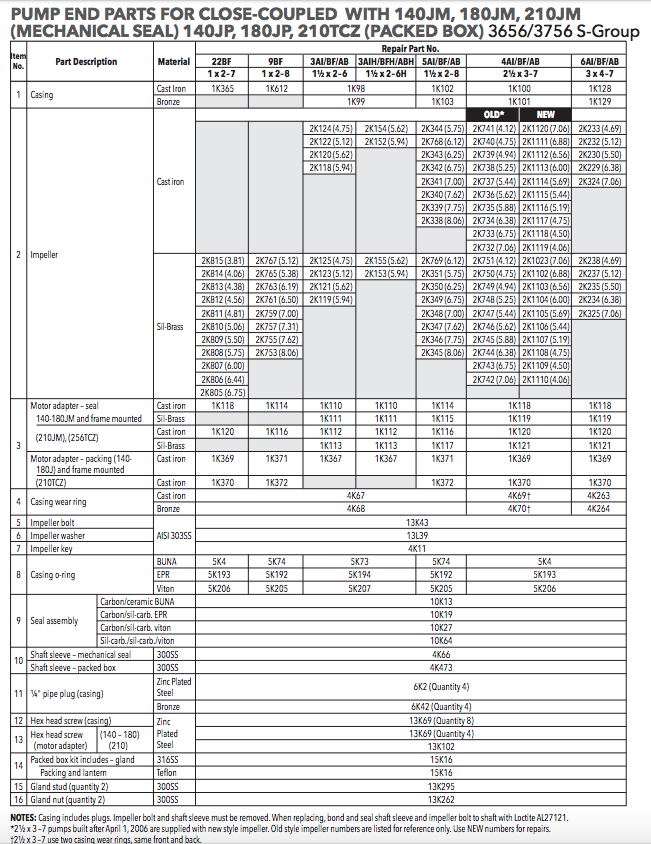

REPAIR PARTS

BROCHURE

Goulds 3656 M Series Centrifugal Pump Brochure

INSTALLATION MANUAL

Goulds 3656 M Series Centrifugal Pump Installation Manual

POWER FRAME REPAIR PARTS

Goulds 3656 M Series Centrifugal Pump Power Frame Repair Parts

REPAIR PARTS

Goulds 3656 M Series Centrifugal Pump Repair Parts

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
