Berkeley MGPS High Pressure Booster Pumps Buyers Guide & Review

The Berkeley MGPS series high pressure booster pumps are built for use in pressure washing systems (residential, commercial, industrial), booster and spray systems, filtration and reverse osmosis systems, HVAC applications, and general purpose pumping applications. The MGP booster pumps are the most durable booster pump available.

The proven SignaSeal floating impeller design minimizes thrust loads allowing for continuous operation without damage to motor bearings, mechanical seal or pump hydraulic components.

Features:

Pipe tapping sizes: Inlet 1”, Outlet 1”
Proven multi-stage design greatly reduces problems with abrasives and running dry
Acetal impellers molded with precision for perfect balance, ultra-smooth for highest performance and efficiency
Precision molded diffusers provide superior performance with high resistance to corrosion and abrasion
Mechanical shaft seal built with precision lapped and highly polished carbon ceramic, stainless steel construction
Internal design guarantees continuous water lubrication.
Motor windings with superior insulation materials to protect against excessive moisture and contaminants
Heavy-duty ball bearings, shielded and permanently lubricated, extensively tested to ensure extended life and smooth, quiet operation
Dustproof cover protects all electrical components from dirt, dust and insects; ventilating air cannot contaminate

BERKELEY MGPS SERIES BOOSTER PUMPS

Berkeley MGPS High Pressure Booster Pumps

Model Comparison Chart

Model	HP	Voltage	Phase	GPM	Stages	Casing
MGPS10C	1/2	115/230	1	10	6	Stainless Steel
MGPS7C	1/2	115/230	1	7	9	Stainless Steel
MGPS10C3	1/2	208-230/460	3	10	6	Stainless Steel
MGPS10D	1/2	208-230/460	3	7	9	Stainless Steel
MGPS10D3	3/4	208-230/460	3	10	8	Stainless Steel
MGPS7D	3/4	115/230	1	7	12	Stainless Steel
MGPS20E	1	115/230	1	20	7	Stainless Steel
MGPS7C3	1/2	208-230/460	3	7	9	Stainless Steel
MGPS10E	1	115/230	1	10	10	Stainless Steel
MGPS20E3	1	208-230/460	3	20	7	Stainless Steel
MGPS7D3	3/4	208-230/460	3	7	12	Stainless Steel
MGPS7E	1	115/230	1	7	16	Stainless Steel
MGPS10E3	1	208-230/460	3	10	10	Stainless Steel
MGPS20F3	1-1/2	208-230/460	3	20	9	Stainless Steel
MGPS7E3	1	208-230/460	3	7	16	Stainless Steel
MGPS20F	1-1/2	230	1	20	9	Stainless Steel
MGPS10F	1-1/2	230	1	10	14	Stainless Steel
MGPS10F3	1-1/22	208-230/460	3	10	14	Stainless Steel
MGPS20G	2	230	1	20	11	Stainless Steel
MGPS20G3	2	208-230/460	3	20	11	Stainless Steel
MGPS10G	2	230	1	10	16	Stainless Steel
MGPS10G3	2	208-230/460	3	10	16	Stainless Steel

PUMP PERFORMANCE

RECOMMENDED INSTALLATION

MAINTENANCE

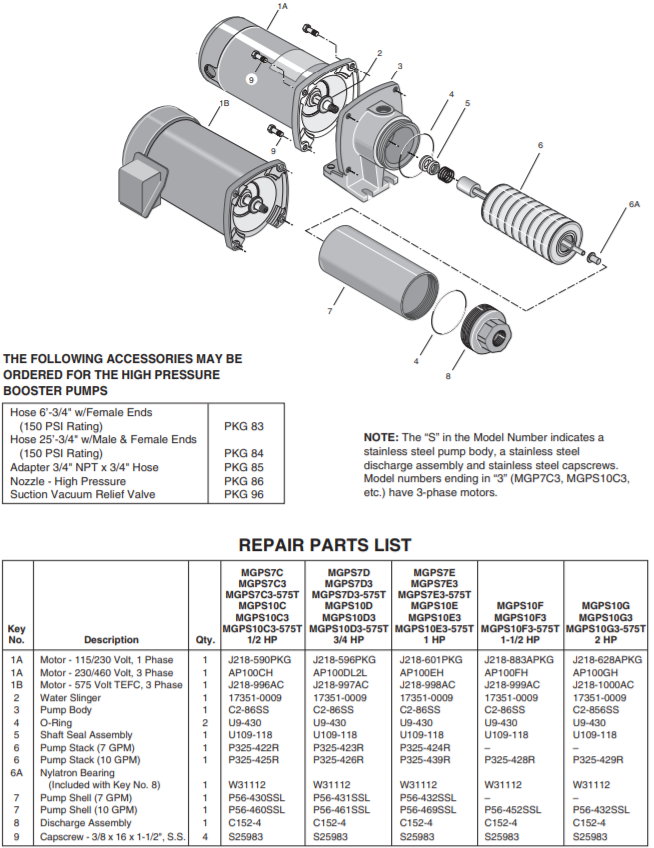

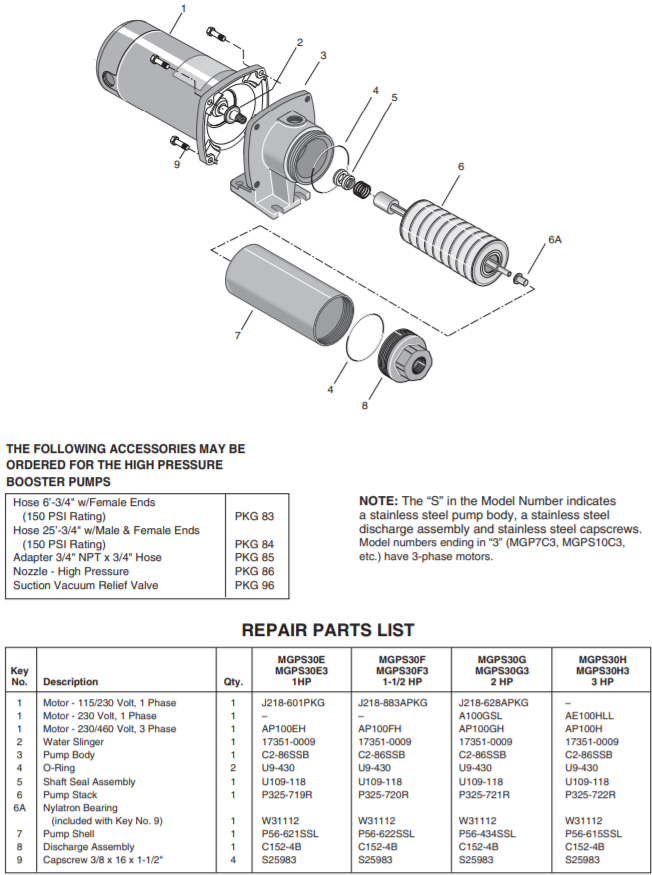

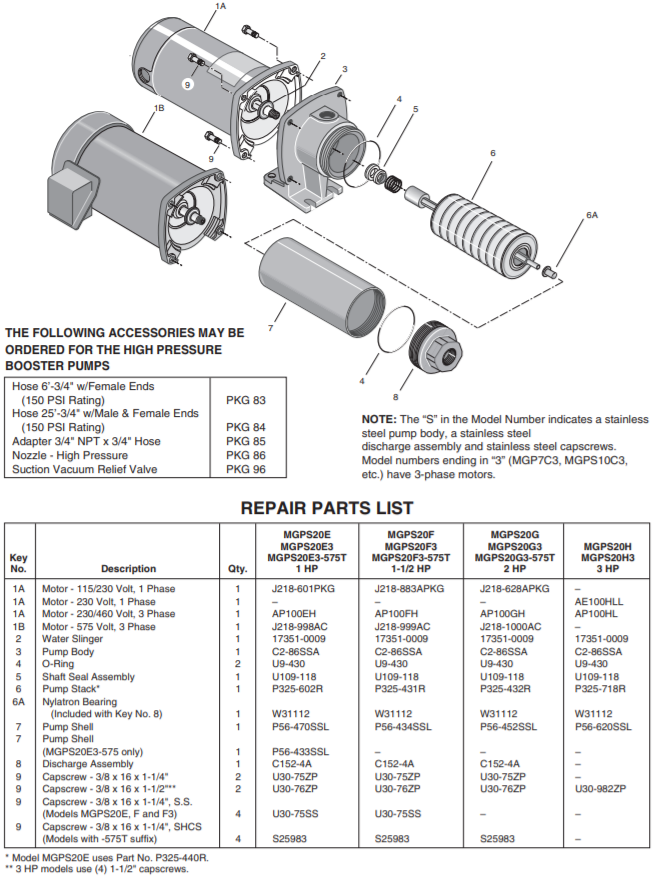

REPAIR PARTS

MANUAL

Berkeley MGPS Series Booster Pump Owner's Manual

BROCHURE

Berkeley MGPS Series Booster Pump Brochure

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
